Presión absoluta y
relativa

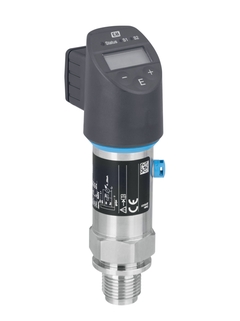

Ceraphant PTP31B
Presostato económico con sensor metálico de conexión soldada para medición en gases, vapores o líquidos
El equipo Ceraphant PTP31B es un presostato económico con sensor piezorresistivo para la medición y monitorización segura de presiones absolutas y relativas. El presostato con diseño compacto es muy estable y resistente a sobrecargas para presiones de hasta +400 bar.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Celda de medición
+400mbar....+400bar
(+6...+6000psi)
-
Selección rápida
Configuración individual
-
Ventajas
Una electrónica de conmutación integrada para una monitorización y un control del proceso descentralizados y económicos
Comprobación de funciones e información en planta gracias a los LED y el indicador digital
Sensor resistente a sobrecargas de hasta...
-
Ámbito de aplicación
Presostato con diafragma de sensor metálico para la monitorización de presiones absolutas y relativas en gases, vapores, líquidos y materiales polvorientos.
Conexiones a proceso: roscas
Temperatura de proceso: -40 a +100 °C (-40 a +212 °F)
Presión de...
Documentos / Manuales / Software
-
Ceraphant PTC31B, PTP31B
Technical Information
Pressure switch for safe measurement and monitoring of absolute and
gauge pressureTechnical Information (TI) -
Weld-in adapter, process adapter and flanges
Level and pressure measurement
Technical Information (TI) -
Ceraphant PTC31B, PTP31B, PTP33B
Operating Instructions
Pressure switch for safe measurement and monitoring of absolute and
gauge pressureManual de instrucciones (BA) -
Ceraphant PTC31B, PTP31B, PTP33B
IO-Link
Process pressure measurement
Manual de instrucciones (BA) -
Ceraphant PTC31B, PTP31B, PTP33B
IO-Link
Medición de presión de proceso
Short Instruction (KA)09/20Inglés -
Ceraphant PTC31B, PTP31B, PTP33B
Manual de instrucciones abreviado
Presostato para la medición y monitorización segura de presiones
absolutas y relativasShort Instruction (KA)05/18Inglés -
Sealing kit
Installation Instruction
Cerabar
Installation Instructions (EA) -
Mechanical accessories for pressure measuring devices
Pressure measurement
Special Documentation (SD) -
Pressure Equipment Directive (PED)
Pressure measurement
Special Documentation (SD) -
Valve plug
Valve plug
Special Documentation (SD) -
Komplettpaket Druckmesstechnik
Ein Ansprechpartner - spart Zeit und reduziert Kosten
Competence Brochure (CP)05/15Alemán -
Ceraphant PTP31B
Druckschalter mitvollverschweißtem Metallsensor zur sicheren
Überwachung von
Absolut- und Relativdruck in Gasen, Dämpfen, Flüssigkeiten und StäubenTender Text02/21Alemán -
IODD Single, IODD_IOL_PR_Ceraphant_0x92FE_0x01_0x01, 22.01.2019 (Pressure, Ceraphant, 0x92FE)
IO-Link,
IO-Link Version: AnyIO Device Description (IODD)1.00.00Language neutral -
Pressebild PressEHM08
Endress+Hauser SE+Co. KG, Ceraphant PTP31B
Picture12/16Language neutral -
Cerabar, Ceraphant
Código de producto: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Número Declaración: HE_00360_01.16
Especificaciones del fabricante: RoHSManufacturer DeclarationAlemán , Inglés -
Product family: Ceraphant
Código de producto: FMG50-, PTP31B-
Número Declaración: HE_01404_01.21
Especificaciones del fabricante: Performance characteristicsManufacturer DeclarationAlemán , Inglés -
Ceraphant
Código de producto: PTC31B-, PTP31B-, PTP33B-
Número Declaración: HE_00714_01.17
Especificaciones del fabricante: RoHSManufacturer DeclarationAlemán , Inglés -
Ceraphant
Código de producto: PTP31B-
Número Declaración: HE_00566_01.17
Especificaciones del fabricante: RoHSManufacturer DeclarationChino -
Ceraphant
Código de producto: PTP31B-
Número Declaración: FDA_00152_01.17FDA DeclarationAlemán , Inglés -
Ceraphant
Código de producto: PTP31B-
Número Declaración: FDA_00152_02.17FDA DeclarationAlemán , Inglés -
Ceraphant
Código de producto: PTC31B-, PTP31B-, PTP33B-
Número Declaración: EC_00452_04.16EU DeclarationAlemán , Inglés , fr -
Cerabar, Ceraphant
Código de producto: PMP21-, PTP31B-
Número Declaración: EC_00449_03.16EU DeclarationAlemán , Inglés , fr -
Waterpilot, Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant, Cerabar S, Cerabar M, Cerabar
Código de producto: PTP33B-, PTP31B-, PTC31B-, PMP75-, PMP71B-, PMP71-, PMP55-, PMP51B-, PMP51-, PMP23-, PMP21-, PMP11-, PMD78B-, PMD75B-, PMD75-, PMD55B-, PMD55-, PMC71B-, PMC71-, PMC51B-, PMC51-, PMC21-, PMC11-, FMX21-, FMD78-, FMD77-, FMD72-, FMD71-, FMB70-, FMB53-, FMB52-, FMB51-, FMB50-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: EAEC N RU D-DE.DE02.B.11894/20MiscellaneousRuso -
Cerabar, Ceraphant
Código de producto: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Región: Canada (CRN)
Entidad certificadora: CRNPressure EquipmentInglés -
Waterpilot, SYSTEM, Gammapilot M, Gammapilot, Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Código de producto: PMC71B-, PMD55-, PMD75-, PMD75B-, PMD78B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP75-, PTC31B-, PTP31B-, PTP33B-, FMB50-, FMB53-, FMB70-, FMD71-, FMD72-, FMD77-, FMD78-, FMG60-, FMX21-, FTG20-, NMS80-, NMS83-, PMC11-, PMC21-, PMC51-, PMC51B-, PMC71-
Entidad certificadora: TÜVPressure EquipmentAlemán , Inglés -
SYSTEM, Levelflex, Deltabar S, Deltabar M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Código de producto: PTP31B-, PMP75-, PMP71-, PMP55-, PMP51-, PMP21-, PMP11-, PMD78B-, PMD75B-, PMD75-, PMD55B-, PMD55-, NMS81-, FMP54-, FMD78-, FMD77-
Entidad certificadora: TÜVPressure EquipmentAlemán , Inglés -
Cerabar, Ceraphant, Ceraphant T
Código de producto: PMC11-, PMP11-, PTC31-, PTC31B-, PTP31-, PTP31B-
Región: Malaysia
Entidad certificadora: SPAN
Número de certificado: SPAN/BPI/2699-2019Metrology -
Ceraphant
Código de producto: PTC31B-, PTP31B-, PTP33B-
Región: Russia
Entidad certificadora: Rosstandart
Número de certificado: DE.C.30.004.A NO 67872/1MetrologyRuso -
Ceraphant
Código de producto: PTC31B-, PTP31B-, PTP33B-
Región: Canada, USA
Entidad certificadora: CSAOrdinary Location Product SafetyInglés
Accesorios / Piezas de repuesto
-
-
Order code 52002643
Weld-in adapter G1/2, 316L
Flush mount process connection. Material: 316L. Usage: PMP11, PMP21, PMP51, PTP31B. Correct installation only with dummy.
-
Order code 52006263
Socket for plug 4p-125V, 4A-M12
M12 socket for plug. Self confectionery connection. Usage: plug M12.
-
Order code 52009800
Flat gasket 18,5x23,9x1,5 FKM, 5 pieces
Process gasket FKM Viton. Usage: Cerabar M/S, Cerabar PMP11/PMP21, metal cell.
-
Order code 52010172
Weld-in adapter G1/2, 316L, 3.1
Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP11, PMP21, PMP51, PTP31B. Correct installation only with dummy.
-
Order code 52010285
Cable 4x0.34, box M12,Cu Sn/Ni,90o,L=5m
M12 plug connector. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B.
-
Order code 71114212
Plug connector M12 90deg
Self confectionery connection. Usage: plug M12.
-
Order code 71286350
Sealing kit PMPx1, PTP31B, FKM, 2 pcs.
Consists of: gasket 18.5x23.9x1.5 FKM. O-ring 14x1.78, FKM. Usage: PMP11, PMP21, PMP51, PTP31B.
-
Order code 71336104
Valve Plug ISO4400 M16, PTP/PTC3xB
4-pole. Consists of: plug connector, srew, seal. Usage: PTC31B, PTP31B/PTP33B.
-
Order code 71336105
Valve plug ISO4400 NPTF1/2, PTP/PTC3xB
4-pole. Consists of: plug connector, srew, seal. Usage: PTC31B, PTP31B/PTP33B.
-
Order code
Unit is not repairable.
-
-
