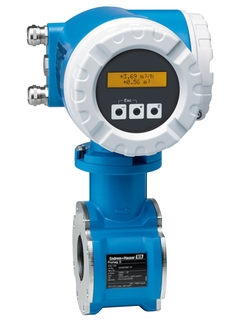

Promag 50D

Este producto ya no se encuentra disponible.

Consulte la nueva generación en la sección predecesor / sucesor o contacte con su entidad local de Endress+Hauser.

Características y especificaciones

Atrás

Details

Measuring principle

Electromagnético
Encabezado del producto

La versión de tipo disco compacta combinada con un concepto de electrónica modular. Para aplicaciones de agua básicas; optimizada para espacio limitado e instalaciones de tubería plástica.
Características del sensor

Centrado fácil, rápido del sensor – construcción innovadora de la carcasa. Medición de flujo ahorradora de energía – sin pérdida de presión debido a la constricción transversal. Libre de mantenimiento – sin partes móviles. Longitud de instalación corta y bajo peso. Discos de tierra integrados hechos de acero inoxidable.
Características del transmisor

Puesta en marcha rápida – Configuraciones Rápidas de aplicaciones específicas. Operación segura – la pantalla proporciona información de proceso fácil de leer. Totalmente en cumplimiento con la industria – IEC/EN/NAMUR. Pantalla retro iluminada de 2 líneas con botones. Dispositivo en versión compacta o remota.
Rango de diámetro nominal

DN 25…100
1"…4"
Máx. error medido

±0.5%
Rango de medición

0...600 m3/h
Máx. presión de proceso

PN16
Cl 150
JIS 10K
Rango de temperatura del medio

0...+60°C
(+32...+140°F)
Grado de protección

IP 67 (NEMA 4x)
Pantalla/Operación

Pantalla de dos renglones con retroiluminación
Botón pulsador
Salidas

4...20 mA
Pulso/Frecuencia
Estado
Entradas

Estatus
Comunicación digital

HART
PROFIBUS DP/PA
Aprobaciones para áreas peligrosas

FM
CSA
Seguridad del producto

CE, C-tick, EAC marking

Mostrar más
Mostrar menos

Documentos / Manuales / Software

Tipo de descarga

Filtrar

Proline Promag 50D Technical Information
Electromagnetic flow measuring system.
Flow measurement of liquids in water or wastewater applications.

Technical Information (TI)
Proline Promag 50 HART Manual de las funciones del equipo
Sistema de medición de caudal electromagnético.

Manual de instrucciones (BA)
Proline Promag 50 HART Operating Instructions
Electromagnetic flowmeter

Manual de instrucciones (BA)
Proline Promag 50 PROFIBUS DP/PA Operating Instructions
Electromagnetic flowmeter

Manual de instrucciones (BA)
Proline Promag 50D Manual de instrucciones abreviado
Sistema electromagnético de medición de caudal

Short Instruction (KA)

08/15

Inglés
Replacing I/O-board and subprints for harsh environment (HE) Installation Instructions
Promag 50, 53, 55, Promass 80, 83, 84, CNGmass 8DF, Cubemass 8CN

Mounting Instruction (EA)
Replacing the transmitter Installation Instructions
Promag 10, 23, 50, 53, 55

Mounting Instruction (EA)
Replacing transmitter parts Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, Prosonic Flow 90, 93,
t-mass 65, Cubemass 8CN, CNGmass 8DF

Mounting Instruction (EA)
Replacing cover and O-ring Installation Instructions
romag 10, 23, 50, 51, 53, 55, 400, 800, Promass 40, 80, 83, 84, 8ME,
CNGmass 8FF, LPGmass 8FE, Cubemass 8CM, Prosonic Flow 90, 91,9
2, 93, t-mass 65, Prowirl 72, 73

Mounting Instruction (EA)
Replacing amplifier board Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, Cubemass DCI 8CN, CNGmass
DCI 8DF, Prosonic Flow 90, 93, t-mass 65

Mounting Instruction (EA)
Replacing amplifier board for harsh environment (HE) Installation Instructions
Promag 50, 53, 55, Promass 80, 83, 84, Cubemass DCI 8CN, CNGmass DCI 8DF

Mounting Instruction (EA)
Safety Instructions for Spare Parts Installation Instructions
Flowmeter

Mounting Instruction (EA)
Replacing power supply for harsh environment (HE) Installation Instructions
Promag 50, 53, 55, Promass 40, 80, 83, 84, CNGmass DCI, Cubemass DCI,
Prosonic Flow 93 P

Mounting Instruction (EA)
Repair kit cover remote version Installation Instructions
Promag 10, 50, 51, 53, 55, 400, 800, Promass 80, 83, 84, CNGmass DCI,
Cubemass DCI, Prosonic Flow 92 F, t-mass 65

Mounting Instruction (EA)
Mounting set for wall-mount housing Installation Instructions
Promag 50, 51, 53, 55, Promass 80, 83, 84, Prosonic Flow 90, 93, t-mass
65

Mounting Instruction (EA)
I/O-board, subprint, screening sheed Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, Cubemass DCI 8CN,
CNGmass DCI 8DF, Prosonic Flow 90, 93, t-mass 65

Mounting Instruction (EA)
Interface parts Installation Instructions
Promag 10, 23, 50, 51, 53, 55, 400, 800

Mounting Instruction (EA)
Replacing Power supply and display Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, Cubemass DCI 8CN,
CNGmass DCI 8DF, Prosonic Flow 90, 93, t-mass 65

Mounting Instruction (EA)
Replacing Sensor parts remote version Installation Instructions
Promag 10, 50, 51, 53, 55, 400, 800, Promass 80, 83, 84, Cubemass 8CN,
CNGmass 8DF

Mounting Instruction (EA)
Replacing S-DAT Installation Instructions
Promag 23, 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, 8WF, Cubemass
DCI 8CN, CNGmass DCI 8DF, t-mass 65

Mounting Instruction (EA)
Proline Promag 50 Division 1 Ex documentation
Ex-Dokumentationen zu den Betriebsanleitungen Promag 50.
Ex
documentation for the Promag 50 operating instructions.

Documentation Ex relative aux mises en service Promag 50.

Ex Safety Instructions (XA)
Proline Promag 50, 53 Functional safety manual Special Documentation
Electromagnetic flowmeter

Special Documentation (SD)
Change of Directives Special Documentation
Change of Directives

Special Documentation (SD)
List of Tested Devices and Versions ME01 Mitsubishi Electric MELSEC System Q and PROFIBUS for Water & Wastewater Industry
This document lists all relevant components and devices with versions as
used for
testing of the Reference Topology ME01. All content of this document is
jointly
developed, reviewed and approved by Mitsubishi Electric and
Endress+Hauser as a
common deliverable of Open Integration.

Special Documentation (SD)
Integration Test Summary ME01 Mitsubishi Electric MELSEC System Q and PROFIBUS for Water & Wastewater Industry
This document provides a brief summary of Open Integration tests for
Reference
Topology ME01. All content of this document is jointly developed,
reviewed and
approved by Mitsubishi Electric and Endress+Hauser as a common
deliverable of Open
Integration.

Special Documentation (SD)
Reference Topology ME01 Mitsubishi Electric MELSEC System Q and PROFIBUS for Water & Wastewater Industry
This document specifies the Open Integration Reference Topology ME01.
All content of
this document is jointly developed, reviewedand approved by Mitsubishi
Electric and
Endress+Hauser as a common deliverable of Open Integration.

Special Documentation (SD)
Simatic PDM HART Package 1.14.00 Manufacturer Information includes PDM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.14.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.01

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.00.00

Manufacturer Information (MI)
Simatic PDM PROFIBUS Package V1.12.00 Manufacturer Information includes PDM - Device List, Release Notes – PROFIBUS
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS DP: 3.06.10

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.03.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS PA: 3.04.00

Manufacturer Information (MI)
PRM HART Package V1.08.00 Manufacturer Information includes PRM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.08.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 1.06.01

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.04.00

Manufacturer Information (MI)
AMS FOUNDATION fieldbus Package V1.06.00 Manufacturer Information includes AMS - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.06.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.02.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.02

Manufacturer Information (MI)
AMS HART Package V1.12.00 Manufacturer Information includes AMS - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS DP: 3.06.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS PA: 2.03.01

Manufacturer Information (MI)
PRM FOUNDATION fieldbus Package V1.05.00 Manufacturer Information includes PRM - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.05.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS DP: 3.04.00

Manufacturer Information (MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.03

Manufacturer Information (MI)
Pomiary przeplywu cieczy, pary i gazow. Oferta produktow i uslug
Pomiary przeplywu cieczy, pary i gazow. Oferta produktow i uslug

Fields of Activities (FA)

11/13

Polaco
Flow measurement in utilities - for the US Market
Energy management in your hands - customized solutions for
compressed air, gas, steam and water

Competence Brochure (CP)

12/10

Inglés
Modern measurement on filling machines
Filling, cleaning and sterilization

Competence Brochure (CP)

07/10

Inglés
A 15% cost saving in sludge dewatering by reducing flocculant dosage.
Dewatering of sludge is a process aimed at reducing its volume by
removing as much water as possible. Frequently this is done
mechanically, where the sediment is subjected to a so-called
conditioning
process; this involves changing the structure and properties of the
sediment, weakening the forces binding water to the surface of
particles.
A commonly used method of conditioning is a chemical method and
consists of adding electrolytes to the sludge, such as aluminum sulfate,
ferric sulfate or ferric chloride, or polyelectrolytes based on organic
polymers.

Case Studies (CS)

06/11

Inglés
Cost transparency through energy monitoring
Data collection and visualization of the energy consumption.

Case Studies (CS)

01/13

Inglés
Innovation Brochure - Proline Promag 10D/50D - For efficient water flow measurement
The streamlined solution for cost-conscious users

Innovations (IN)

10/09

Japonés
GSD Single, GSD_EH_DP_FL_Promag_0x1546_0x07_0x02_DPLIB, 17.04.2014 (Flow, Promag, 0x1546)
PROFIBUS DP,
PROFIBUS System Version: Any

General Station Description (GSD)

3.06.10

Language neutral
GSD Single, GSD_EH_PA_FL_Promag_0x0x1525_0x08_0x01_PALIB, 22.04.2014 (Flo w, Promag, 0x1525)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

3.06.01

Language neutral
GSD Single, GSD_EH_DP_FL_Promag_0x1546_V03_01_00_DPLIB, 17.04.2014 (Flow, Promag, 0x1546)
PROFIBUS DP,
PROFIBUS System Version: Any

General Station Description (GSD)

3.01.00

Language neutral
GSD Single, GSD_EH_PA_FL_Promag_0x1525_V02_03_00_PALIB, 22.04.2014 (Flow, Promag, 0x1525)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

2.03.00

Language neutral
GSD Single, GSD_EH_PA_FL_Promag_0x1525_V01_00_00_PALIB, 22.04.2014 (Flow, Promag, 0x1525)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x07_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x04_0x01, 17.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x02_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x06_0x01, 16.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x05_0x01, 17.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x04_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x05_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x08_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x07_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x03_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x01_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x02_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x06_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50D_0x0041_0x09_0x02, 06.08.2015 (Flow, Pro mag)
HART,
PDM Version: 6.1, 8.2 SP 1

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x03_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x06_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x08_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x09_0x02, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x07_0x01, 16.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, Promag_50_PA_V3_06_xx, 06.07.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_DP_V3_02_xx, 06.07.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_DP_V3_06_xx, 06.07.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V1_00_xx___V1_01_xx, 06.07.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V3_04_xx, 06.07.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V2_00_01___2_02_02, 06.07.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_DP_V3_04_xx, 06.07.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V3_05_xx, 06.07.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V2_03_00, 06.07.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_DP_V3_01_00, 06.07.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_V2_03_xx, 10.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Device Manager Version: R430.1

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_HART_FW2_04_zz_Dev_Rev_9, 10.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V1_06_0x, 10.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V2_00_00, 10.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V2_02_xx, 10.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V1_02_0x, 06.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V1_04_0x, 10.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V2_01_xx, 10.07.2019 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.06.00

Field Xpert - SMT70 Version: 1.03.00

FieldCare Version: 2.13.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Faceplate Library, PRM_HART_Package_Flow_1_08_00, 22.07.2015 (Flow)
HART,

Plant Resource Manager Version: R3.02, R3.05, R3.10, R3.11, R3.12

Placa frontal

1.08.00

Language neutral
Promag 50, Promag 51, Promag 53
Código de producto: 50D-, 50E-, 50H-, 50L-, 50P-, 50W-, 51P-, 51W-, 53E-, 53H-, 53L-, 53P-, 53W-
Número Declaración: EC_00288_01.16

EU Declaration

Alemán , Inglés , fr
Promag 10, Promag 50, Promag 51, Promag 53, Promag D, Promag E, Promag H, Promag L, Promag P, Promag W
Código de producto: 53L-, 53P-, 53W-, 5D4B-, 5D4C-, 5E1B-, 5E2B-, 5H1B-, 5H2B-, 5L4B-, 5L4C-, 5P1B-, 5P2B-, 5W4B-, 5W4C-, 5W8B-, 53H-, 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-, 10W-, 10P-, 10L-, 10H-, 10E-, 10D-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: TC BY_112 11.01. TP020 003 126

Miscellaneous

Ruso
Promag 10, Promag 50, Promag 51, Promag 55, Promag D, Promag E, Promag H, Promag L, Promag P, Promag W
Código de producto: 55H-, 55S-, 5D4C-, 5E1B-, 5H2B-, 5H3B-, 5L4B-, 5P1B-, 5P2B-, 5P3B-, 5P5B-, 5W4C-, 5W8B-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-, 10W-, 10P-, 10L-, 10H-, 10E-, 10D-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: TC RU D-CH.MU62.B.02333

Miscellaneous

Ruso
Promag 50, Promag 51, Promag 53, Promag 55
Código de producto: 55S-, 55H-, 53W-, 53P-, 53L-, 53H-, 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-
Región: Canada, USA
Entidad certificadora: CSA
Categoría: I/1/A,B,C,D
Protección: IS

Explosion Protection

Inglés
Promag 50, Promag 51, Promag 53, Promag 55
Código de producto: 55S-, 55H-, 53W-, 53P-, 53L-, 53H-, 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-
Región: Canada, USA
Entidad certificadora: CSA
Categoría: I/2/A,B,C,D
Protección: NI

Explosion Protection

Inglés
Promag 50, Promag 51, Promag 53
Código de producto: 53W-, 53P-, 53H-, 50P-, 50W-, 50H-, 50L-, 50D-, 51W-, 51P-
Región: South Korea
Entidad certificadora: KTL

Explosion Protection
Promag 50, Promag 51, Promag 53, Promag 55
Código de producto: 55W-, 55S-, 55P-, 55L-, 55H-, 55E-, 55D-, 53W-, 53S-, 53P-, 53L-, 53H-, 53E-, 53D-, 51W-, 51S-, 51P-, 51L-, 51H-, 51E-, 51D-, 50W-, 50S-, 50P-, 50L-, 50H-, 50E-, 50D-
Región: USA
Entidad certificadora: FM
Categoría: I/2/A,B,C,D/T6...T1, II,III/1/E,F,G/T6...T1
Protección: DIP, NI/ANI

Explosion Protection

Inglés
Promag 50, Promag 51, Promag 53, Promag 55
Código de producto: 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-, 55S-, 55H-, 53W-, 53P-, 53L-, 53H-
Región: Canada, USA
Entidad certificadora: CSA
Categoría: I/2/A,B,C,D/T6...T1, I/1/A,B,C,D/T5, II/1/E,F,G/T5
Protección: Ex d e [ia Ga] IIC T6...T1 Gb, IS

Explosion Protection

Inglés
Promag 50, Promag 53, Promag 51, Promag 55
Código de producto: 55S-, 53P-, 53W-, 53H-, 50P-, 50W-, 50H-, 55H-, 53L-, 50L-, 50D-, 53E-, 51W-, 51P-, 50E-
Región: Canada, USA
Entidad certificadora: CSA
Categoría: I/2/A,B,C,D T6...T1, I/1/A,B,C,D T5, II/1/E,F,G T5
Protección: Ex d e [ia Ga] IIC T6...T1 Gb, NI

Explosion Protection

Inglés
Promag 10, Promag 50
Código de producto: 10D-, 50D-
Región: Great Britain
Entidad certificadora: WRAS

Hygienic Equipment

Inglés
Promag P, Promag W, Promag 53, Promag 50, Promag D, Promag 51, Promag 10, Promag L
Código de producto: 5W8B-, 53P-, 53W-, 50P-, 50W-, 5P1B-, 5W4C-, 5P2B-, 50L-, 5D4C-, 50D-, 5P5B-, 5W5B-, 5W4B-, 51W-, 5P3B-, 5D4B-, 51P-, 10P-, 10W-, 10L-, 10D-, O5W1B-, O5P2B-, O5P1B-, 5L8B-, 5L4C-, 5L4B-
Región: USA
Entidad certificadora: NSF

Hygienic Equipment

Inglés
Promag 10, Promag 50
Código de producto: 10D-, 50D-
Región: USA
Entidad certificadora: NSF

Hygienic Equipment

Inglés
Promag 10, Promag 50, Promag D
Código de producto: 10D-, 50D-, 5D4B-, 5D4C-
Región: Germany
Entidad certificadora: Hy

Hygienic Equipment

Alemán
Promag 10, Promag 50
Código de producto: 10D-, 50D-
Región: France
Entidad certificadora: ACS

Hygienic Equipment

fr
Promag 50
Código de producto: 50D-, 50P-, 50W-, 50H-, 50L-
Región: International
Entidad certificadora: PI, PROFIBUS International
Versión de software: PROFIBUS PA PROFILE 3.0

Fieldbus Conformance

Inglés
Promag 10, Promag 50, Promag 51, Promag 53, Promag 55
Código de producto: 53H-, 53W-, 53P-, 50H-, 50P-, 50W-, 55S-, 55H-, 50D-, 53L-, 53E-, 50L-, 51W-, 51P-, 50E-, 10W-, 10P-, 10L-, 10H-, 10E-, 10D-
Región: Russia
Entidad certificadora: Rosstandart
Número de certificado: CH.C.29.004.A № 56810_1

Metrology

Ruso
Promag 10, Promag 23, Promag 50, Promag 51, Promag 53, Promag E, Promag 55, Promag H, Promag P, Promag W
Código de producto: 10E-, 53E-, 53H-, 53L-, 53P-, 53W-, 55H-, 55S-, 5D4-, 5E1B-, 5H1B-, 5H2B-, 5L4-, 5W4-, 5P1B-, 5P2B-, 5W8B-, 10D-, 10H-, 10L-, 10P-, 10W-, 23H-, 23P-, 50D-, 50E-, 50H-, 50L-, 50P-, 50W-, 51P-, 51W-
Región:
Entidad certificadora: AZSTAND
Número de certificado: CH.S.29.999.Ü 001318

Metrology
Promag 10, Promag P, Promag 53, Promag W, Promag H, Promag 50, Promag L, Promag 51, Promag 55, Promag D, Promag E
Código de producto: 53P-, 53W-, 53H-, 50P-, 50W-, 5P1B-, 50H-, 55S-, 5H1B-, 5W4C-, 5L4C-, 5P2B-, 55H-, 53L-, 50L-, 5D4C-, 5H2B-, 5E1B-, 50D-, 53E-, 5W4B-, 51W-, 5L4B-, 5D4B-, 51P-, 10P-, 10W-, 10H-, 10L-, 50E-, 5W8B-, 10E-, 10D-
Región: Belarus
Entidad certificadora: BELGIM
Número de certificado: 9768

Metrology

Ruso
Promag 10, Promag 23, Promag 50, Promag 51, Promag 53, Promag 55
Código de producto: 55S-, 55H-, 53W-, 53P-, 53H-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50D-, 23P-, 23H-, 10W-, 10P-, 10L-, 10H-, 10D-
Región: Kazakhstan
Entidad certificadora: MEMST
Número de certificado: GOST-12129

Metrology

Ruso

Mostrar más
Mostrar menos

Accesorios / Piezas de repuesto

???Mostrar como PDF???

Buscar

Filtrar

Order code

Specification

F
- Nr F Order code 50096745

  Kit P.s.b. 50/51/53 85-260VAC

  Mostrar detalles Ocultar detalles
- Nr F Order code 71039466

  Kit p.s.b. 50/53 85-260VAC HE

  HE = harsh environment

  Mostrar detalles Ocultar detalles
- Nr F Order code 50096747

  Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

  Mostrar detalles Ocultar detalles
- Nr F Order code 71039468

  Kit p.s.b.50/53 20-55VAC 16-62VDC HE

  HE = harsh environment

  Mostrar detalles Ocultar detalles
7
- Nr 7 Order code 50094002

  Kit 10 fuses 250 VAC T800 MA

  Mostrar detalles Ocultar detalles
- Nr 7 Order code 50094003

  Kit 10 fuses 250 VAC T 2A00

  Mostrar detalles Ocultar detalles
B
- Nr B Order code 50106073

  Kit meas. amplifier PMAG 50 WEA

  Language: FR, ES, IT, NL, PT, DE, EN

  Mostrar detalles Ocultar detalles
- Nr B Order code 71039445

  Kit meas. amplifier 50 WEA HE

  Language: FR, ES, IT, NL, PT, DE, EN HE = harsh environment

  Mostrar detalles Ocultar detalles
- Nr B Order code 50106075

  Kit meas. amplifier PMAG 50 SEA

  Language: JA, ID, EN

  Mostrar detalles Ocultar detalles
- Nr B Order code 71039447

  Kit meas. amplifier 50 SEA HE

  Language: JA, ID, EN HE = harsh environment

  Mostrar detalles Ocultar detalles
- Nr B Order code 50106074

  Kit meas. amplifier PMAG 50 EES

  Language: SV, FI, NO, RU, PL, CS, EN

  Mostrar detalles Ocultar detalles
- Nr B Order code 71039446

  Kit meas. amplifier 50 EES HE

  Language: SV, FI, NO, RU, PL, CS, EN HE = harsh environment

  Mostrar detalles Ocultar detalles
C
- Nr C Order code 50096759

  Kit com50/51/40/80/90 I+F/stat.in+outEx

  Mostrar detalles Ocultar detalles
- Nr C Order code 71039473

  Kit I/O 50/80 I+F status in+out HE EX

  HE = harsh environment

  Mostrar detalles Ocultar detalles
- Nr C Order code 50096757

  Kit commodul current/frequency out Ex

  40/50/80/90/65

  Mostrar detalles Ocultar detalles
- Nr C Order code 71039474

  Kit I/O 50/80 current/frequ. out HE EX

  HE = harsh environment

  Mostrar detalles Ocultar detalles
- Nr C Order code 71066579

  Kit I/O Profibus PA Ex

  50/53/55/80/83/93/65

  Mostrar detalles Ocultar detalles
- Nr C Order code 71066580

  Kit I/O 50/53/55/80/83 Profib. PA HE Ex

  HE = harsh environment

  Mostrar detalles Ocultar detalles
- Nr C Order code 50096756

  Kit com Pline 50/90 current out Ex

  Mostrar detalles Ocultar detalles
- Nr C Order code 71039710

  Kit I/O 50 current out HE EX

  HE = harsh environment

  Mostrar detalles Ocultar detalles
- Nr C Order code 71021742

  Kit I/O 50/53/55/83/65/8ME Profib. DP Ex

  Mostrar detalles Ocultar detalles
- Nr C Order code 71039484

  Kit I/O 50/53/55/83 Profibus DP HE EX

  HE = harsh environment

  Mostrar detalles Ocultar detalles
E
- Nr E Order code 50108132

  Kit display mod 50/51/80/65 >=V1.06.00

  Mostrar detalles Ocultar detalles
J
- Nr J Order code 50108131

  Kit disp.50/51/80/90/65 Wall >=V1.06.00

  Mostrar detalles Ocultar detalles
21
- Nr 21 Order code 50094017

  Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

  Mostrar detalles Ocultar detalles
G
- Nr G Order code 50094016

  Kit Bus/connec.b.5X/40/8X/65 field hous.

  Mostrar detalles Ocultar detalles
19
- Nr 19 Order code 50094015

  Kit connec. board PMAG5X wall enclo.

  Mostrar detalles Ocultar detalles
- Nr 19 Order code 71039496

  Kit connec. board 50/53/55 wall encl.HE

  HE = harsh environment

  Mostrar detalles Ocultar detalles
18
- Nr 18 Order code 50094014

  Kit connec. board In/Output Wall encl

  Mostrar detalles Ocultar detalles
A
- Nr A Order code 50098018

  Kit connection board D/E/L/P/S/W FS

  Usage: 10/50/51/53/55/400/800

  Mostrar detalles Ocultar detalles
- Nr A Order code 71039497

  Kit connection board D/E/L/P/S/W FS HE

  Usage: 10/50/53/55 HE = harsh environment

  Mostrar detalles Ocultar detalles
29
- Nr 29 Order code 50108139

  Kit Termin.Block field hous. 5X/8X/40/65

  Mostrar detalles Ocultar detalles
30
- Nr 30 Order code 50108140

  Kit Termin.Block Wall encl. 5X/8X/9X/65

  Mostrar detalles Ocultar detalles
S
- Nr S Order code 71003946

  Kit S-Dat Promag 50 programmed

  Serialnumber is forceful required

  Mostrar detalles Ocultar detalles
8
- Nr 8 Order code 50094026

  Kit Cover 5X/40/8X/65 with window

  Mostrar detalles Ocultar detalles
9
- Nr 9 Order code 50094028

  Kit Cover 5X/40/8X/65 version blind

  Mostrar detalles Ocultar detalles
10
- Nr 10 Order code 50094038

  Kit Cover Connection terminal

  10/5X/40/8X/93/65/400/800

  Mostrar detalles Ocultar detalles
26
- Nr 26 Order code 50094038

  Kit Cover Connection terminal

  10/5X/40/8X/93/65/400/800

  Mostrar detalles Ocultar detalles
- Nr 26 Order code 71247838

  Repair kit cover, remote version

  Usage: 10/5X/8X/8DF/8CN/92F/65/400/800 acc. service info SI01351D-1/06 Consists of: Cover Rep.kit for G14, O-Ring 110.00 x 4.50 HNBR, Grease

  Mostrar detalles Ocultar detalles
15
- Nr 15 Order code 50096840

  Kit 10 cable glands M20x1,5

  Mostrar detalles Ocultar detalles
- Nr 15 Order code 50098042

  Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)

  Mostrar detalles Ocultar detalles
- Nr 15 Order code 50098041

  Kit 10 ext. M20x1.5/G 1/2" (plug PVC)

  Mostrar detalles Ocultar detalles
- Nr 15 Order code 50098037

  Kit Cable gland Profibus PA

  Mostrar detalles Ocultar detalles
12
- Nr 12 Order code 50096839

  Kit Circuit board cpl field/SS-housing

  Mostrar detalles Ocultar detalles
14
- Nr 14 Order code 50099102

  Kit Bushing to field/SS-housing

  Mostrar detalles Ocultar detalles
13
- Nr 13 Order code 50096841

  Kit Ground terminal / Cover clamp

  Mostrar detalles Ocultar detalles
20
- Nr 20 Order code 50094041

  Kit Seal cover to Wall enclosure

  Mostrar detalles Ocultar detalles
11
- Nr 11 Order code 50094050

  Kit 10 Seal cover to field housing

  Mostrar detalles Ocultar detalles
22
- Nr 22 Order code 50098020

  Kit parts housing compact Stnd/HT

  Usage: 10/23/50/51/53/55 Sensor: D/E/H/L/P/S/W

  Mostrar detalles Ocultar detalles
24
- Nr 24 Order code 50098019

  Kit parts housing FS Stnd/HT

  Usage: 10/50/51/53/55/400/800 Sensor: D/E/H/L/P/S/W

  Mostrar detalles Ocultar detalles
25
- Nr 25 Order code 50098023

  Kit housing gasket FS Stnd/HT

  Usage: 10/50/51/53/55/400/800 Sensor: D/E/L/P/S/W

  Mostrar detalles Ocultar detalles
23
- Nr 23 Order code 50098024

  Kit housing gasket compact Stnd/HT

  Usage: 10/23/50/51/53/55 Sensor: D/E/L/P/S/W

  Mostrar detalles Ocultar detalles
- Order code DK5CA-

  Promag, cable remote version

  10/50/51/53/55/400/800 1 kit includes 1 coil cable and 1 signal cable

  Mostrar detalles Ocultar detalles
- Order code 50XXX-

  Promag 50, transmitter

  Mostrar detalles Ocultar detalles
- Order code DK5WM-

  Transmitter Promag, mounting set

  10/50/51/53/55/800

  Mostrar detalles Ocultar detalles
- Order code DKD-

  Promag D, mounting set

  The mounting set contains threaded bolts, centering sleeves, nuts, washers and a pair of EPDM flange seals orderable separately, as replacement for M1, M2

  Mostrar detalles Ocultar detalles
- Order code DK5DD-

  Promag D, seal set

  A set includes 2 flange seals

  Mostrar detalles Ocultar detalles
- Order code FXA193-

  Serviceinterface FXA193

  The service interface connects the service port of Proline and ToF devices with the serial interface RS 232C (9 pin.) of a personal computer. Contents of delivery: - Serviceinterface with RS 232C connection cable (9 pin.) - FXA "USB" cable, the additional power supply for FXA193 from USB-port of the PC.

  Mostrar detalles Ocultar detalles

Mostrar más
Mostrar menos

Sucesor
- Proline Promag D 400 / 5D4C

  Medidor diseñado como versión wafer compacto con transmisor de última generación para Aguas y Aguas residuales. Para aplicaciones básicas en tratamiento de aguas; optimizado para espacios limitados e instalaciones en tuberías plásticas.
  Más información

Promag 50D

Características y especificaciones

Details

Measuring principle

Encabezado del producto

Características del sensor

Características del transmisor

Rango de diámetro nominal

Máx. error medido

Rango de medición

Máx. presión de proceso

Rango de temperatura del medio

Grado de protección

Pantalla/Operación

Salidas

Entradas

Comunicación digital

Aprobaciones para áreas peligrosas

Seguridad del producto

Documentos / Manuales / Software

Accesorios / Piezas de repuesto

Sucesor

Proline Promag D 400 / 5D4C
