Medición de la temperatura media

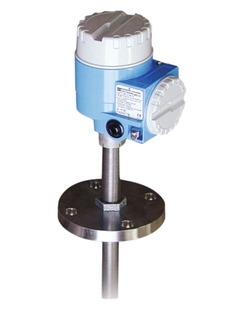

Prothermo NMT539
Medición precisa de temperaturas medias.
NMT539 es un convertidor de señales HART combinado con un sensor de medición de temperaturas medias y una sonda de interfaz para la detección de agua en el fondo. Para la medición de temperaturas medias, consta de elementos de precisión Pt100 multipunto. Es una solución muy adecuada para la medición constante de la temperatura media y la detección de agua en el fondo mediante comunicación HART. Para aplicaciones Custody Transfer (facturación) y medición precisa de existencias, es el equipo de monitorización más adecuado conectado a Proservo NMS5 o a NRF590 de montaje exterior al lado del depósito con medición de nivel por radar Micropilot.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Precisión
+/- 0.1 °C
-
Máx. presión de proceso (estática)
0 bar...0.5 bar
(0 psi...7.25 psi) -
Rango de temperatura de operación
Standard:
-40 °C...100 °C
Optional:
-55 °C...235 °C
Water Bottom spec.:
-40 °C...100 °C
Cyrogenic:
-170 °C...60 °C -
Máx. longitud de inmersión bajo demanda
40 m (131.2 ft)
-
Selección rápida
Configuración individual
-
Ventajas
Equipo intrínsecamente seguro que proporciona la configuración eléctrica más segura posible
Disponible en cuatro versiones diferentes en función de los requisitos del cliente:
Solo convertidor

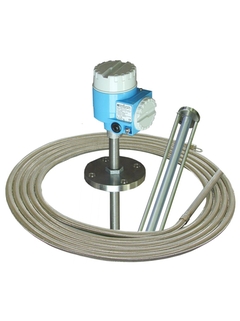

Convertidor y sonda de temperatura
Convertidor y sonda de...
-
Ámbito de aplicación
Para la medición precisa de temperaturas medias y la detección de agua en el fondo.
Conexión a proceso: bridas
Temperatura: -40 a +100 °C (-40 a +212 °F)
Distancia de medición: 40 m (131,2 ft)
Exactitud de medición: ±0,1 °C
Certificados internacionales de...
Documentos / Manuales / Software
-
Tankvision NXA820, NXA821, NXA822
Información técnica
Sistema de Gestión de Inventarios con software integrado
completamente para operación con navegador de web estándarTechnical Information (TI) -
Prothermo NMT539
Technical Information
Tank gauging
Technical Information (TI) -
Prothermo NMT539 - Technical Information
Available in four different versions based on customer requirements:
Converter Only
Converter & Temp. probe
Converter & Water
bottom probe
Converter,
temp. & water bottom probe
Converter is compatible with
various element types in third party manufacturer temp. probe.Technical Information (TI) -
Prothermo NMT539 Technical Information
Combined HART converter, average temperature sensor and water
bottom interfaceTechnical Information (TI) -
Prothermo NMT539-Operating Instructions and Description of Instrument
FunctiInstallation Instruction
The Prothermo NMT539 is an intelligent HART signal converter, with a
combined average temperature sensor and water bottom interface probe.
For average temperature measurement, it consists of precision multi-spot
Pt100 elements.Manual de instrucciones (BA) -
Prothermo NMT 539
Manual de instrucciones y de descripción de las funciones del
equipo
Manual de instrucciones y de descripción de las
funciones del instrumentoManual de instrucciones (BA) -
Prothermo NMT 539
Instrucciones de instalación
Manual de instrucciones (BA) -
Prothermo NMT539 - Installation Instructions
The Prothermo NMT 539 is multi-spot Pt100 average thermometer
combined with a HART signal converter to meet the demand of temp.
measurement for both custody transfer and inventory control
applications.Manual de instrucciones (BA) -
Prothermo NMT539
Operating Instructions
Tank gauging
Manual de instrucciones (BA) -
Prothermo NMT539
Operating Instructions
Tank gauging
Manual de instrucciones (BA) -
Prothermo NMT539 Gas -tight feed through- Installation Instructions
The Prothermo NMT 539 is multi-spot Pt100 average thermometer
combined with a HART signal converter to meet the demand of temp.
measurement for both custody transfer and inventory control
applications.Short Instruction (KA)03/11Inglés -
NMT539_70....
Ex462-712 Rev. 3
Control drawing of the NMT539_70.... for use in Canada.
Ex462-712 Rev. 3Ex Safety Instructions (XA) -
Prothermo NMT539 - Safety Instruction
Safety Instructions for Electrical Apparatus Certified for Use in
Explosion-hazardous Areas
Designation according to IECEx 02Ex Safety Instructions (XA) -
NMT539-7...
Ex461-850 Rev. 2
Control drawing of the NMR539-7... for use in U.S.A
Ex461-850 Rev. 2Ex Safety Instructions (XA) -
NMT539-7...
Ex462-711 Rev. 3
Control drawing of the NMT539-7... for use in Canada. (English)
Ex462-711 Rev. 3Ex Safety Instructions (XA) -
Average Temperature Prothermo NMT539
NEPSI:
Ex ia IIB T6…T2 Ga/Gb
Ex ia IIB T6…T2 GbEx Safety Instructions (XA) -
NMT539 IECEx / ATEX version
Upgraded applied standard to IEC60079-26:2014/EN60079-26:2015.
And integrated XA00583G(IECEx) and XA00585G(ATEX)Ex Safety Instructions (XA) -
NMT539-70...
Ex461-851 Rev.2
Control drawing of the NMT539-70.....(converter only version) for use in
U.S.A.
Ex461-851 Rev.2Ex Safety Instructions (XA) -
Prothermo NMT539 - Safety Instruction
KEMA 03 ATEX 1448 X
Safety Instructions for Electrical Apparatus Certified
for Use in Explosion-hazardous Areas
Designation according to Directive 94/9/ECEx Safety Instructions (XA) -
Wykaz wyrobów akcyzowych
Sk&
322;ady podatkowe i terminale paliwowePublications (PU)10/09Polaco -
Rozporz&
261;dzenie w sprawie wymaga&
324; dla zbiorników
pomiarowych
Sk&
322;ady podatkowe i terminale paliwowePublications (PU)10/09Polaco -
Skład podatkowy mazutu - artykuł CE 04/2010
System kontrolno-pomiarowy Endress+Hauser.
Raportowanie i wizualizacja zbiorników mazutowni
zgodnie z zarządzeniem Urzędu Regulacji Energetyki.Publications (PU)03/12Polaco -
Tank Gauging
Система коммерческого и оперативного учета продуктов
в резервуарных парках.Competence Brochure (CP)07/15Ruso -
DTM Single, Prothermo_NMT539_2_V1_45, 06.11.2020 (Temperature, Prothermo, 0x00B9)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Language neutral -
DTM Single, Prothermo_NMT539(2)_HART_FW1_5z_Dev_Rev_5, 26.10.2020 (Temperature, Prothermo, 0x00BA)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Language neutral -
DTM Single, Prothermo_NMT539(1)_HART_FW1_5z_Dev_Rev_5, 26.10.2020 (Temperature, Prothermo, 0x00B8)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Language neutral -
DTM Single, Prothermo_NMT539_V1_45, 26.10.2020 (Temperature, Prothermo, 0x00B8)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Language neutral -
DTM Single, Prothermo_NMT539_1_V1_0, 24.07.2017 (Temperature, Prothermo, 0x00B9)
HART,
DeviceCare Version: 1.03.00
FieldCare Version: 2.11.00Device Type Manager (DTM)1.4.188.39Language neutral -
NMT539 - Picture
Tank Gauge
Picture06/12Language neutral -
System&Gauging
Código de producto: NMT532-, NMT539-
Número Declaración: KEMA 03ATEX1448 XManufacturer DeclarationInglés -
System&Gauging
Código de producto: NMT532-, NMT539-
Número Declaración: KEMA 03ATEX1448 XManufacturer DeclarationInglés -
System&Gauging
Código de producto: NMT532-, NMT539-
Número Declaración: KEMA 03ATEX1448 XManufacturer DeclarationInglés -
SYSTEM
Código de producto: NMT539-
Número Declaración: EC_00540_01.17EU DeclarationAlemán , Inglés , fr -
SYSTEM
Código de producto: NMT539-
Número Declaración: EC_00538_01.17EU DeclarationAlemán , Inglés , fr -
SYSTEM
Código de producto: NMT539-
Número Declaración: EC_00540_02.17EU DeclarationAlemán , Inglés , fr -
SYSTEM
Código de producto: NMT539-
Número Declaración: EC_00538_02.17EU DeclarationAlemán , Inglés , fr -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: TC BY_112 11.01. TP004 003 143MiscellaneousRuso -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: Russia (Declaration of Conformity), Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: RU D-JP.MO10.B.06149MiscellaneousRuso -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
RTD THERMOMETER ZONE, System&Gauging
Código de producto: NMT539-
Región: Japan
Entidad certificadora: TIIS
Protección: Ex d [ia] IIB T4Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: China
Entidad certificadora: NEPSIExplosion ProtectionChino -
System&Gauging
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T2Explosion ProtectionJaponés -
RTD THERMOMETER ZONE, System&Gauging
Código de producto: NMT539-
Región: Japan
Entidad certificadora: TIIS
Protección: Ex d [ia] IIB T4Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: China
Entidad certificadora: NEPSIExplosion ProtectionChino -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T2Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: Canada
Entidad certificadora: FMExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
RTD THERMOMETER ZONE, System&Gauging
Código de producto: NMT539-
Región: Japan
Entidad certificadora: TIIS
Protección: Ex d [ia] IIB T4Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: USA
Entidad certificadora: FMExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: Brazil
Entidad certificadora: TÜV
Categoría: zone 0,1
Protección: Ex ia IIB T6...T2 Ga/Gb, Ex ia IIB T6...T4 GbExplosion ProtectionPortugués -
SYSTEM
Código de producto: NMT532-, NMT539-
Protección: [Ex ia] IIB T6...T2 Ga/Gb, [Ex ia] IIB T6...T2 GbExplosion ProtectionRuso -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: Russia (TR CU)
Entidad certificadora: EAC
Protección: Ex ia IIB T6...T2 Ga/Gb, Ex ia IIB T6...T2 GbExplosion ProtectionRuso -
System&Gauging
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
SYSTEM
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
System&Gauging
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T4Explosion ProtectionJaponés -
SYSTEM
Código de producto: NMS5-, NMS531-, NMS532-, NMS534-, NMS535-, NMS536-, NMS7-, NMT532-, NMT539-
Región: India
Entidad certificadora: CC(O)E
Protección: Ex d, Ex iaExplosion ProtectionInglés -
System&Gauging
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT539-
Entidad certificadora: TIIS
Protección: Ex ia IIB T2Explosion ProtectionJaponés -
SYSTEM
Código de producto: NMT532-, NMT539-
Entidad certificadora: KEMAExplosion ProtectionInglés -
SYSTEM
Código de producto: NMT539-
Región:
Entidad certificadora: MSST
Número de certificado: 2793MetrologyRuso -
Micropilot S, SYSTEM, Tankvision
Código de producto: FMR530-, FMR532-, FMR533-, FMR540-, NMT532-, NMT539-, NRF590-, NXA820-, NXA821-, NXA822-
Región: Bulgaria
Entidad certificadora: BIM (Bulgarian Institude of Metrology)
Número de certificado: 12.03.4963MetrologyBúlgaro -
SYSTEM
Código de producto: NMT539-
Número de certificado: DE-20-M-PTB-0077MetrologyAlemán -
SYSTEM
Código de producto: NMT539-
Región: China
Entidad certificadora: SBM
Número de certificado: PAC 2015-L257MetrologyInglés -
Micropilot S, SYSTEM, Tankvision, TERMINALVISION
Código de producto: FMR532-, FMR540-, NMS5-, NMS7-, NMT539-, NRF590-, NXA20-, NXA820-, NXA85-
Región: Russia (GOST)
Entidad certificadora: Rosstandart
Número de certificado: DE.C.29.004.A_66368MetrologyRuso -
SYSTEM
Código de producto: NMT539-
Región: Europe
Entidad certificadora: PTB
Número de certificado: DE-20-M-PTB-0077MetrologyAlemán -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: Uzbekistan
Entidad certificadora: UZS
Número de certificado: 02.7120MetrologyRuso -
SYSTEM
Código de producto: NMT539-
Región: Bosnia-Herzegovina
Entidad certificadora: IMBiH
Número de certificado: 06-46-7-AN-136-2/17Metrology -
SYSTEM
Código de producto: NMT539-
Número de certificado: ATS 15/17MetrologyInglés -
SYSTEM
Código de producto: NMT532-, NMT539-
Entidad certificadora: Rosstandart
Número de certificado: JP.C.32.004.A_40316MetrologyRuso -
SYSTEM
Código de producto: NMT532-, NMT539-
Región: Russia
Entidad certificadora: Rosstandart
Número de certificado: JP.C.32.004.A № 71208MetrologyRuso -
SYSTEM, Tankvision
Código de producto: NMS5-, NMS7-, NMT532-, NMT539-, NRF560-, NXA820-, NXA821-, NXA822-
Región: Bulgaria
Entidad certificadora: BIM (Bulgarian Institude of Metrology)
Número de certificado: 12.04.4968MetrologyBúlgaro
Accesorios / Piezas de repuesto
-
-
Nr 11 Order code 52017174
O-ring, terminal box, small, CR
Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Usage: NMT539 Converter.
-
Nr 11 Order code 017803-0043
O-ring, electric cover, NBR
Size: D88mm, d3mm. Material: NBR. Part: electric box, NMT. Usage: NMT532/NMT535/NMT536/NMT538/NMT539.
-
Nr 11 Order code 017803-0044
O-ring, terminal housing, NBR
Size: D73mm, d3mm. Material: NBR. Part: terminal box, NMT. Usage: NMT532/NMT535/NMT536/NMT538/NMT539.
-
-
-
Nr 21 Order code 52017175
Cover, connection housing
NMT Junction Box cover, Material: aluminium casting. Colour: E+H gray. Usage: NMT539 converter retro fit.
-
Nr 21 Order code 017802-0008
Cover, terminal box, Alu, NMT
NMT terminal box cover, M73. Color: E+H gray. Material: aluminium casting. Usage: NMT532/NMT535/NMT536/NMT539.
-
Nr 21 Order code 70106024
Cover, E-housing NMT532/9, M88 long type
NMT terminal Box cover, M88, Color: E+H gray. Material: aluminium casting. Usage: NMT532/NMT539.
-
-
-
Nr 31 Order code 70108674
NMT539Module, Exia, Temp.+WB 1m, v.186
Temperature, water bottom 1m, HART ID: v.186. Usage: NMT539.
-
Nr 31 Order code 70108675
Module assembly, FM, Temp., WB 2m v.185
Temperature, water bottom 2m, HART ID: v.185. Usage: NMT539.
-
Nr 31 Order code 70108676
Module assembly, FM, Temp., WB 1m v.185
Temperature, water bottom 1m, HART ID: v.185. Usage: NMT539.
-
Nr 31 Order code 70108677
NMT539/532Module,Exia, Temperature,v.184
HART ID: v.184. Usage: NMT532/NMT539.
-
Nr 31 Order code 70108679
NMT539Module, Exia, Temp.+WB 2m, v.186
FM approval. Temperature, water bottom 2m, HART ID: v.186. Usage: NMT539.
-
Nr 31 Order code 71086630
NMT539Module, Exia,W&M,Temp.+WB 1m,v.186
Temperature, water bottom 1m, weight and measure, HART ID: v.186. Usage: NMT539.
-
Nr 31 Order code 71086631
NMT539Module,Exia,W&M,Temperture, v.184
Temperature, weight and measure, HART ID: v.184. Usage: NMT539.
-
Nr 31 Order code 71086632
NMT539Module, Exia,W&M,Temp.+WB 2m,v.186
Temperature, water bottom 2m, weight and measure, HART ID: v.186. Usage: NMT539.
-
Nr 31 Order code 71114398
NMT539Module,TIIS Exd[ia],Temp.,v.184
NMT539 module, only temp. Usage: NMT539.
-
Nr 31 Order code 71114400
NMT539Module,TIIS Exd[ia],T+WB1m,v.186
NMT539 module, temp. + water bottom 1m. Usage: NMT539.
-
Nr 31 Order code 71114401
NMT539Module,TIIS Exd[ia],T+WB2m,v.186
NMT539 module, temp. + water bottom 2m. Usage: NMT539.
-
-
-
Nr 34 Order code 58020200
-
Nr 34 Order code 71114402
-
-
-
Order code 71130913
-
Order code 71130915
-
-
Predecesor
