iTHERM TMS01 MultiSens Flex Multipunto

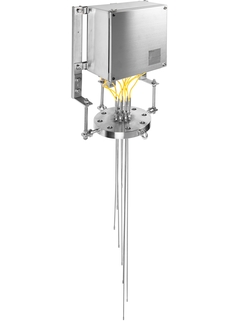

Sonda de temperatura multipuntoiTHERMTMS01 MultiSens Flex ©Endress+Hauser

Sonda de temperatura multipunto con TC y RTD de contacto directo modular para aplicaciones de petróleo, gas y petroquímicas

Al cumplir con los estándares de seguridad más exigentes, es posible personalizar el iTHERM TMS01 para diversas aplicaciones. Flexible en disposición 3D, proporciona un perfil de temperatura completo utilizando una única sonda. El equipo se puede configurar con o sin termopozos para conseguir tiempos de respuesta, fuerzas mecánicas y facilidad de sustitución óptimos. Está disponible con tecnología TC, RTD o con nuestro iTHERM StrongSens.

Producto no disponible en este mercado

  • Ventajas

    • Diseño modular y flexible para un uso fácil, listo para ser instalado para mediciones en contacto directo o mediante tubos de protección dedicados al sensor. El equipo también se puede instalar en termopozos ya existentes

    • Infinitas configuraciones de...

  • Ámbito de aplicación

    • Industria petroquímica

    • Industria de Oil & Gas

    • Procesos de la industria de química

Características y especificaciones

Atrás

Details

  • Measuring principle

    Detector de Temperatura de Resistencia

  • Característica / Aplicación

    metric style

    easy-to-use

    suitable for hazardous areas

    flanged process connection

    light chemical processes

    3D sensors distributions

    modular design

    replaceable sensors during shutdown

  • Cabezal de terminal

    Junction box - aluminium - as accessory

    Junction box - stainless steel - as accessory

    on board or remote Junction box

  • termopozo / tubo de protección

    without (for direct contact sensors type)

    with (for replaceable sensors)

    with (for increased mechanical protection)

    Multi-thermowells, each one dedicated to a sensor

  • Inserto / sonda

    mineral insulated (MI), flexible

    mineral insulated (MI), flexible, with its own thermowell

  • Diámetro exterior del tubo de protección

    6,0 mm (0,24'')

    8,0 mm (0,31")

    10,29 mm (1/8")

  • Máx. longitud de inmersión bajo demanda

    up to 30.000,00 mm (1181'')

  • Protección de material tubo/termo pozo

    1.4401 (316)

    1.4435 (316L)

    1.4541 (321)

    1.4550 (347)

    Alloy 600 (2.4816)

  • Conexión a proceso

    flange:

    2" ASME/ANSI B16.5 150
    ...600

    3" ASME/ANSI B16.5 150
    ..600

    4" ASME/ANSI B16.5 150
    ...600

    6" ASME/ANSI B16.5 150
    ...600

    8" ASME/ANSI B16.5 150
    ...600

    DN80 EN/DIN 1092.1 PN10
    ...PN100

    DN100 EN/DIN 1092.1 PN10
    ...PN100

    DN125 EN/DIN 1092.1 PN10
    ...PN100

    DN150 EN/DIN 1092.1 PN10
    ...PN100

    DN200 EN/DIN 1092.1 PN10
    ...PN100

  • Forma de la Punta

    straight

  • Rango de temperatura de operación

    Type K:

    -270 °C ...1.100 °C

    (-454 °F ...2.012 °F)

    Type J:

    -210 °C ...760 °C

    (-346 °F ...1.382 °F)

    Type N:

    -270 °C …1100 °C

    (-454 °F ...2.012 °F)

    Type T:

    -270 °C …370 °C

    (-454 °F …698 °F)

  • Máx. presión de proceso (estática)

    at 20 °C: 100 bar (1450 psi)

  • Precisión

    class 2 acc. to IEC 60584

    ASTM E230 and ANSI MC 96.1

  • Tiempo de respuesta

    depending on configuration:


    TC:

    t50 = 2 s

    t90 = 5 s


    RTD:

    t50 = 0,8s

    t90 = 2s

  • Integración del transmisor de cabezal

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Aprobaciones Ex

    ATEX

    IECEX

  • Certificación

    SIL (transmitter only)
