Float Gauge LT11

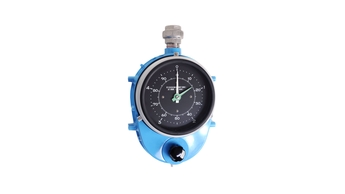

Imagen de producto: Float Gauge LT11

Este producto ya no se encuentra disponible.

Consulte la nueva generación en la sección predecesor / sucesor o contacte con su entidad local de Endress+Hauser.

Características y especificaciones

Atrás

Details

  • Measuring principle

    Medición de Tanque Servo / Flotante

  • Característica / Aplicación

    Medidor mecánico de tanque para una medición precisa y confiable de nivel.

    Versión roscada

  • Especialidades

    Pantalla mecánica

  • Precisión

    ±2mm(+/- 0.08")

  • Temperatura ambiente

    -20 °C ... +70 °C

    (-4 °F ... +158 °F)

  • Temperatura del proceso

    -200 °C ... 200 °C

    (-328 °F ... 392 °F)

  • Presión de proceso absoluta / límite de sobrepresión máx.

    1bar abs...1.2bar abs

    15 psi...17 psi

  • Principales partes húmedas

    SUS316

  • Conexión a proceso

    Cuerda 1 1/2

  • Máx. distancia de medición

    30m (98ft)

  • Opciones

    transmisor

  • Límites de la aplicación

    Densidad de líquido de medición: 0.5 - 2.0 g/cm3

Documentos / Manuales / Software

Accesorios / Piezas de repuesto

Nr
Order code
Specification
  • 82
  • 92
    • Nr 92 Order code 017860-5501

      Measuring wire, 316, 5m

      1.6mm,strand, 9m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5502

      Measuring wire, 316, 10m

      1.6mm,strand,14m,with wire,0.5mm,316,1m.

    • Nr 92 Order code 017860-5503

      Measuring wire, 316, 16m

      1.6mm,strand,20m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5504

      Measuring wire, 316, 20m

      1.6mm,strand,24m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5505

      Measuring wire, 316, 30m

      1.6mm,strand,34m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5506

      Measuring wire, PFA coated, 5m

      2.6mm, 316, strand, PFA, coated, 9m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5507

      Measuring wire, PFA coated, 10m

      2.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5508

      Measuring wire, PFA coated, 16m

      2.6mm, 316, strand, PFA, coated, 20m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5509

      Measuring wire, PFA coated, 20m

      2.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 017860-5510

      Measuring wire, PFA coated, 30m

      2.6mm, 316, strand, PFA, coated, 34m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 92 Order code 56004310

      Wire D1.6 PFA coated, 60m

      2.6mm, 316, strand, PFA, coated, 64m. Usage: LT1122/LT1222.

    • Nr 92 Order code 017860-5430

      Tape clamp

      Plate, 13x60x0.2t, 316, M3-8 screw, nut. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.

    • Nr 92 Order code 017860-5432

      Wire connector, triangle

      Connector tape/wire. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1212/LT1222.

    • Nr 92 Order code 017860-5431

      Tape connector, square

      Connector tape/tape. Usage: LT11/LT12/LT14/LT16, LT1122/LT1222.

  • 93
    • Nr 93 Order code 017860-5516

      Guide wire, strand, SUS316, 14m

      3mm,316,strand,14m,with,wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5517

      Guide wire, strand, SUS316, 24m

      3mm,316,strand,24m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5518

      Guide wire, strand, SUS316, 36m

      3mm,316,strand,36m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5519

      Guide wire, strand, SUS316, 44m

      3mm,316,strand,44m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5520

      Guide wire, strand, SUS316, 64m

      3mm,316,strand,64m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 56004312

      Guide wire, strand, SUS316, 124m

      3mm,316,strand,124m with wire,0.5mm, 1m. Usage: LT1122/LT1222.

    • Nr 93 Order code 017860-5464

      Guide wire, strand, PFA coated, 14m

      4.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-0047

      Guide wire, strand, PFA coated, 24m

      4.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 017860-0048

      Guide wire, strand, PFA coated, 36m

      4.6mm, 316, strand, PFA, coated, 36m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 017860-0049

      Guide wire, strand, PFA coated, 44m

      4.6mm, 316, strand, PFA, coated, 44m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 017860-0050

      Guide wire, strand, PFA coated, 64m

      4.6mm, 316, strand, PFA, coated, 64m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.

    • Nr 93 Order code 56004314

      Guide wire, strand, PFE coated, 124m

      4.6mm,316,strand,PFA,coated,124m. Usage: LT1122/LT1222.

    • Nr 93 Order code 017860-5521

      Guide wire, solid, SUS316, 7m x 2

      D=3mm, 316, Solid, L=14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5522

      Guide wire, solid, SUS316, 12m x 2

      D=3mm, 316, Solid, L=24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5523

      Guide wire, solid, SUS316, 18m x 2

      D=3mm, 316, Solid, L=36m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5524

      Guide wire, solid, SUS316, 22m x 2

      D=3mm, 316, Solid,L=44m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

    • Nr 93 Order code 017860-5525

      Guide wire, solid, SUS316, 32m x 2

      D=3mm, 316, Solid, L=64m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.

  • 94
    • Nr 94 Order code 017860-5441

      Anchor hook SS400, bolt, nut SUS316

      2x L-type anchor SS400, bolt M10-25 nut, spring washer, washer SUS316. Usage: LT5 LP/LT11/LT12.

    • Nr 94 Order code 017860-5442

      Anchor hook SUS316, bolt, nut SUS316

      2x L-type anchor SUS316, bolt M10-25, nut, spring washer, washer SUS316. Usage: LT5, LT11/LT12/LT14/LT16.

    • Nr 94 Order code 52016951

      Anchor hook SUS316, bolt, nut PVC

      2x L-type anchor SUS316, bolt, nut PVC. Usage: LT5-1, LT11/LT12.

    • Nr 94 Order code 52016949

      Anchor hook SS400, bolt, nut PVC

      2x L-type anchor SS400, bolt, nut PVC. Usage: LT5-1, LT11/LT12.

  • 96
    • Nr 96 Order code 52017103

      Seal pot SGP/AC4A, Rp 1-1/2"

      Material: tank side, gauge side steel. Elbow material: AC4A. Connection: thread, PS 1-1/2".

    • Nr 96 Order code 52017110

      Seal pot 316/316, Rp 1-1/2"

      Material: tank side 316, gauge side 316. With paraffin oil 2 litre. Elbow material: 316. Connection: thread, PS 1-1/2".

    • Nr 96 Order code 52017104

      Seal pot SGP/AC4A, JIS 10K 40A RF

      Material: tank side steel, gauge side steel. With paraffin oil 2 litre. Elbow material: aluminum casting, 4A. Connection: flange JIS 10K 40A RF.

    • Nr 96 Order code 52017111

      Seal pot 316/316, JIS 10K 40A RF

      Material: tank side 316, gauge side 316. With paraffin oil 2 litre. Elbow material: 316. Connection: flange JIS 10K 40A RF.

    • Nr 96 Order code 52017100

      Seal pot PVC/PVC, JIS 10K 40A FF

      Material: tank side PVC, gauge side PVC, with paraffin oil 2 litre Elbow material: PVC. Connection: flange JIS 10K 40A FF.

    • Nr 96 Order code 56004354

      Cover elbow Alu, packing, plug

      Cover, aluminium, with drain plug, paking, cork. Usage: LT5.

    • Nr 96 Order code 017860-0720

      Oil gauge KL60

      Usage: LT5, LT16, LT36.

    • Nr 96 Order code 017860-5452

      Seal liquid, parafin, 2 liter

      Usage: LT5, LT11/LT12.

  • 99
    • Nr 99 Order code 017860-0045

      Pipe support, steel

      Angle, 50x50x4t, 320mm. Usage: LT11/LT12/14/16, LT1112/LT1122/1212/LT1222.

    • Nr 99 Order code 017860-0046

      U-bolts for pipe support, iron

      U-bolt, 1-1/2", nut, washer. Usage: LT11/LT12/14/16, LT1112/LT1122/1212/LT1222.

    • Nr 99 Order code 017860-5420

      Gauge bracket, steel

      Mounting, W32xH300xD90x4.5t. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.

    • Nr 99 Order code 017860-0044

      Socket Rp 1-1/2" SUS316

      Socket,1-1/2",316, weding to tank roof. Usage: LT5, LT11 LP thread connection.

    • Nr 99 Order code 017860-0721

      Wire guide socket, FRT instal. Rc 1-1/2

      Installed at top pipe end. Usage: LT5, LT11/LT12.

  • 82
  • 84
    • Nr 84 Order code 017860-0058

      Top-anchor, SUS316, socket weld-fix, LP

      Complete set, welded socket. Material: SUS316. Usage: LT5, LT11.

  • 86
    • Nr 86 Order code 017860-5471

      Top-anchor R1 aluminum (ADC6), LP

      Complete set, threaded socket, Case ADC. Internal part, SUS316. Usage: LT5, LT11.

  • 88
  • 90
  • 91
  • 92
    • Nr 92 Order code 017860-0709

      O-ring, bearing, P8, silicon rubber, LP

      Size: D8mm, d1.9mm. Material: silicon. Usage: Roller, elbow, balancer, LT5, LT11/LT12, LT31/LT32.

    • Nr 92 Order code 017860-0704

      SUS316L elbow roller, LP/MP

      Usage: LT5, LT11/LT12, LT1112/LT1122/LT1212/LT1222.

    • Nr 92 Order code 017860-1259

      SUS316 bearing, with o-ring 2 piece, LP

      Bering stainless steel 316, guide elbow d4mm, o-ring silicon, rubber P8. 1 set (2 pieces). Usage: LT5, LT11/LT12, LT31/LT32.

    • Nr 92 Order code 017860-0482

      90' Sh.elbow Rp 1-1/2" SCS14, LP

      Usage: LT5, LT11, LT31.

    • Nr 92 Order code 017860-5445

      90' Sheave elbow Rp 1-1/2 aluminum, LP

      Usage: LT5, LT11, LT1112/1122, LT31.

    • Nr 92 Order code 017860-0215

      Internal magnet assembly 1"

      Usage: LT11/LT12, LT1112/LT1122/1212.

  • 81
  • 82
    • Nr 82 Order code 017860-0016

      Magnetic float, 316, LT11x2, LT12x2

      Low pressure. Usage: LT11/LT12, LT1112/LT1122/1212.

    • Nr 82 Order code 56004412

      Measuring tape, CRT 5m (total L 13m)

      L=13m,hole part=7m,Tape end=no clasp. With Clasp, M3 screw, M3 nut. Usage: LT5, LT1112/LT1122/LT1212/ LT1212/LT1222.

    • Nr 82 Order code 017860-5302

      Measuring tape, CRT 10m/BT 5m (L 24m)

      L=24m, hole part=12m, tape end=no clasp. With clasp, M3 screw,M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.

    • Nr 82 Order code 017860-5304

      Measuring tape, CRT 20m/BT 16m (L 45m)

      L=45m, hole part=22m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.

  • 83
    • Nr 83 Order code 017860-5305

      Measuring tape, CRT 30m/BT 20m (L 65m)

      L=65m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Verwendung: LT5, LT11/LT12/LT14/LT16.

    • Nr 83 Order code 017860-5210

      Measuring tape, BT 30m (total L 75m)

      L=75m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.

    • Nr 83 Order code 017860-5306

      Measuring tape, FRT 5m (L 7m), tape only

      L=7m, hole part=7m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 83 Order code 017860-0005

      Measuring tape FRT 5m (L 7m) + wire 9m

      L=7m,hole part=7m,with wire=1.6mm,9m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 83 Order code 017860-0006

      Meas. tape FRT 5m(L7m)+PFA coat wire 11m

      L=7m,hole=7m,with wire=1.6mm,9m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 83 Order code 017860-5307

      Measuring tape, FRT 10m(L12m), tape only

      L=12m, hole part=12m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 83 Order code 017860-0007

      Meas. tape FRT 10m(total L 12m)+wire 14m

      L=12m,hole part=12m,with wire,1.6mm,14m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

  • 84
    • Nr 84 Order code 017860-0008

      Meas. tape FRT 10m(L12m)+PFAcoatwire 16m

      L=12m,hole=12m,with wire,1.6mm,14m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 84 Order code 017860-5309

      Measuring tape, FRT 20m(L 22m),tape only

      L=22m, hole part=22m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 84 Order code 017860-0011

      Meas. tape FRT 20m (L 22m)+ wire 24m

      L=22m,hole part=22m,with wire,1.6mm,24m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 84 Order code 017860-0012

      Meas. tape FRT 20m(L22m)+PFAcoatwire 26m

      L=22m,hole=22m,with wire,1.6mm,24m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 84 Order code 017860-5310

      Measuring tape, FRT 30m(L 32m),tape only

      L=32m, hole part=32m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.

    • Nr 84 Order code 017860-0013

      Meas. tape FRT 30m(total L 32m)+wire 34m

      L=32m,hole part=32m,with wire,1.6mm,34m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.

    • Nr 84 Order code 017860-0014

      Meas. tape FRT 30m,1.6mm 316 PTFE coated

      L=32m,hole=32m,with wire,1.6mm,34m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.

  • 85
  • 81
    • Nr 81 Order code 017860-5221

      Front cover LT11/LT12, steel/glass

      Steel front cover with glass window. Seal U shape, 3 bolts. Usage: LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.

    • Nr 81 Order code 017860-5220

      Front cover counter LT11/LT12/LT14/LT16

      Usage: LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.

    • Nr 81 Order code 017860-5450

      Front cover, plastic

      Transparency plastic cover. Verwendung: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.

    • Nr 81 Order code 56004288

      Blind cover set, for rear cover

      D95x t1.5mm, bolt M10x16, washer packing. Material: SUS304. Usage: LT series.

  • 82
  • 83
  • 84
  • 85
  • 86
    • Nr 86 Order code 017860-0106

      Conster drum large, plastic,LT5LP, 11/12

      Drum, Bakelite, with bolt, M6-16. Screw, M4x12, Nut, M4. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.

  • 87
    • Nr 87 Order code 017860-0107

      Conster drum small, metal, 20m

      Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.

    • Nr 87 Order code 017860-0108

      Conster drum small, metal, 30m

      Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16.

  • 88
  • 89
  • 90
    • Nr 90 Order code 56004503

      Tape guide, SUS spring type, standard

      With screw, washer. Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212/LT1222.

    • Nr 90 Order code 56004502

      Tape guide, aluminium type

      With screw, washer. Usage: LT5, LT1112/LT1122/LT1212/LT1222. LT1212/LT1222.

  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98

  • Sucesor

    • Calibrador de flotador LT5 - Instrumento de medición de depósitos

      Float Gauge LT5

      Se ha desarrollado el calibrador de flotador LT5 para todas las áreas de la industria. Muchos años de funcionamiento en una amplia variedad de aplicaciones han demostrado su fiabilidad.

Comparar productos
