Instrumento de medición de tanques

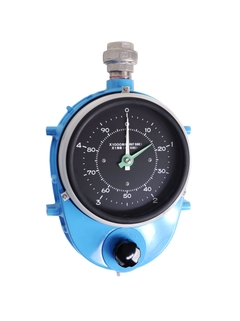

Calibrador de flotador LT5
Medición mecánica de tanques para una medición de nivel precisa y fiable
Se ha desarrollado el calibrador de flotador LT5 para todas las áreas de la industria. Muchos años de funcionamiento en una amplia variedad de aplicaciones han demostrado su fiabilidad.
-
Ventajas
No se requiere energía eléctrica para realizar la medición
Verificación de repetibilidad incorporada
La lectura directa en el lado del depósito le permite comprobar fácilmente el indicador de nivel
Se puede instalar en diversos depósitos que comprenden los...
-
Ámbito de aplicación
Indicación del nivel de productos del petróleo tales como petróleo crudo, queroseno, aceite ligero y viscoso, aceite vegetal, aceite de palma, aceite de semillas y aceite animal, líquidos muy viscosos tales como el asfalto; determinados productos...
Documentos / Manuales / Software
-
Float Gauge LT5-Technical Information
The Float Tank Gauge LT5-1 perform an important role in all areas of industry. Many years of operation in wide variety of applications have proven their reliability. No electrical power is required to perform the measurement. In addition, LT series can be installed easily in your site and can measure the liquid level accurately, and can be used for the detector of the remote command. Therefore LT series are best suited for use in the following operations. • Management of Inventory • Batch Process • Management of Process Tank • Safety Drive of Tanks
Technical Information (TI) -
Float Level Gauge LT5 - Operating Instruction
The Float Tank Gauge LT5-1 perform an important role in all areas of industry. Many years of operation in wide variety of applications have proven their reliability. No electrical power is required to perform the measurement. In addition, LT series can be installed easily in your site and can measure the liquid level accurately, and can be used for the detector of the remote command. Therefore LT series are best suited for use in the following operations. • Management of Inventory • Batch Process • Management of Process Tank • Safety Drive of Tanks
Manual de instrucciones (BA) -

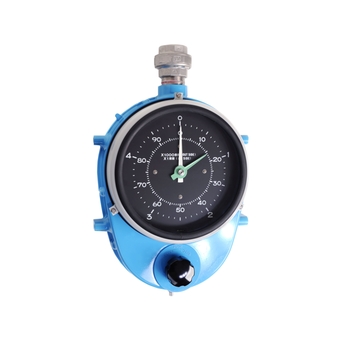

Picture - Float Gauge LT5
Tank Gauge
Picture03/14Language neutral
Accesorios / Piezas de repuesto
-
-
Nr 21 Order code 56004464
Seal O shape, front cover steel/glass
Usage:LT5, LT14/LT16, LT34/LT36.
-
-
-
Nr 20 Order code 71269676
-
Nr 20 Order code 56004288
Blind cover set, for rear cover
D95x t1.5mm, bolt M10x16, washer packing. Material: SUS304. Usage: LT series.
-
-
-
Nr 42 Order code 017860-0220
Dial plate, 2.5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0221
Dial plate, 5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0222
Dial plate, 10m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0223
Dial plate, 16m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0224
Dial plate, 20m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 42 Order code 017860-0101
M & MM pointer assy., Level, Plastic
For level indicator. Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 80 Order code 56004502
Tape guide, aluminium type
With screw, washer. Usage: LT5, LT1112/LT1122/LT1212/LT1222. LT1212/LT1222.
-
Nr 80 Order code 56004502
Tape guide, aluminium type
With screw, washer. Usage: LT5, LT1112/LT1122/LT1212/LT1222. LT1212/LT1222.
-
-
-
Nr 81 Order code 52015582
-
Nr 81 Order code 017860-5033
-
Nr 81 Order code 017860-5035
Conster spring, 20m (range 16m, 20m)
Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 81 Order code 017860-5036
-
-
-
Nr 82 Order code 52016945
Bearing for tape drum
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 84 Order code 017860-0107
Conster drum small, metal, 20m
Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
Nr 84 Order code 017860-0108
Conster drum small, metal, 30m
Drum, aluminum casting. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 84 Order code 017860-0401
-
Nr 84 Order code 017860-0401
-
-
-
Nr 85 Order code 017860-0001
Gear, d=97mm
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 85 Order code 017860-5401
Indication gear assembly, 2.5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212.
-
Nr 85 Order code 017860-5402
Indication gear assembly, 5m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212.
-
Nr 85 Order code 017860-5403
Indication gear assembly, 10m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 85 Order code 017860-5404
Indication gear assembly, 16m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 85 Order code 017860-5405
Indication gear assembly, 20m
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 42 Order code 017860-5407
Counter unit (m/mm)
For 30m range. Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1222.
-
-
-
Nr 80 Order code 017860-0213
Dust protector
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
Nr 80 Order code 017860-0213
Dust protector
Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36.
-
-
-
Nr 11 Order code 70106017
Seal, rear cover V6502, LP
Usage: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 21 Order code 017860-0119
Seal, front cover plastic LT5LP,11/12
Usage: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/1212/LT1222.
-
-
-
Nr 80 Order code 017860-0056
-
-
-
Nr 20 Order code 71269616
Front cover, steel/glass, LT5 LP
Steel front cover with glass window. Seal U shape, 3 bolts. Usage: LT5.
-
Nr 20 Order code 017860-5450
Front cover, plastic
Transparency plastic cover. Verwendung: LT5, LT11/LT12, LT31/LT32, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 80 Order code 70106005
Gauge head nipple, SUS316, LT5 LP/LT11
Usage: LT5 thread connection, LT11.
-
-
-
Nr 96 Order code 71269687
-
-
-
Nr 80 Order code 56004503
Tape guide, SUS spring type, standard
With screw, washer. Usage: LT5, LT11/LT12/LT14/LT16, LT31/LT32/LT34/LT36, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 83 Order code 017860-0113
-
Nr 83 Order code 017860-0111
-
-
-
Nr 84 Order code 017860-0106
Conster drum large, plastic,LT5LP, 11/12
Drum, Bakelite, with bolt, M6-16. Screw, M4x12, Nut, M4. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
Nr 84 Order code 017860-0109
-
Nr 84 Order code 017860-5123
-
Nr 84 Order code 017860-5124
-
-
-
Nr 80 Order code 017860-5440
-
-
-
Nr 83 Order code 017860-0318
-
Nr 83 Order code 017860-0319
O-ring, PTFE, small
Size: G4-10005. Material: PTFE. Part: magnet coupling. Usage: LT5, LT14/LT16, LT34/LT36.
-
Nr 83 Order code 017860-0320
O-ring, PTFE, large
Size: G4-10006. Material: PTFE. Part: magnet coupling. Usage: LT5, LT14/LT16, LT34/LT36.
-
Nr 83 Order code 017860-0326
-
Nr 83 Order code 017871-1227
-
-
-
Nr 20 Order code 71269625
Front cover, steel/glass, LT5 MP/HP
Steel front cover with glass window. Seal O shape, 3 bolts. Usage: LT5.
-
-
-
Nr 83 Order code 71134086
Internal parts for Check handle, MP/HP
Sealmetal, spring, O-ring, grand plate, collar. Usage: LT5, LT14/LT16.
-
-
-
Nr 80 Order code 017871-1232
Coupling, male,for gauge head, MP/HP
Gauge head side,male pin type,Alu plate without female coupling for transmitter with washer M4 SUS304,nut M4 SUS304. Usage: LT5, LT14/LT16, LT34/LT36.
-
-
-
Nr 82 Order code 017860-0316
-
-
-
Nr 84 Order code 70106490
Sprocket + magnet, metric, HP, NBR (LPG)
Usage: LT5, LT16, LT34/LT36.
-
Nr 84 Order code 70106491
Sprocket + magnet, metric, HP, CR (NH3)
Usage: LT5, LT16, LT34/LT36.
-
Nr 84 Order code 70106492
-
Nr 84 Order code 70106493
-
Nr 84 Order code 70106495
-
Nr 84 Order code 70106622
-
-
-
Nr 95 Order code 017860-0004
-
-
-
Nr 96 Order code 71269672
-
-
-
Nr 83 Order code 56004299
-
-
-
Nr 84 Order code 56004407
-
-
-
Nr 96 Order code 71269722
-
-
-
Nr 83 Order code 017860-0322
-
-
-
Nr 84 Order code 017860-0311
-
-
-
Nr 86 Order code 56004412
Measuring tape, CRT 5m (total L 13m)
L=13m,hole part=7m,Tape end=no clasp. With Clasp, M3 screw, M3 nut. Usage: LT5, LT1112/LT1122/LT1212/ LT1212/LT1222.
-
Nr 86 Order code 017860-0005
Measuring tape FRT 5m (L 7m) + wire 9m
L=7m,hole part=7m,with wire=1.6mm,9m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0006
Meas. tape FRT 5m(L7m)+PFA coat wire 11m
L=7m,hole=7m,with wire=1.6mm,9m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0007
Meas. tape FRT 10m(total L 12m)+wire 14m
L=12m,hole part=12m,with wire,1.6mm,14m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0008
Meas. tape FRT 10m(L12m)+PFAcoatwire 16m
L=12m,hole=12m,with wire,1.6mm,14m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0011
Meas. tape FRT 20m (L 22m)+ wire 24m
L=22m,hole part=22m,with wire,1.6mm,24m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0012
Meas. tape FRT 20m(L22m)+PFAcoatwire 26m
L=22m,hole=22m,with wire,1.6mm,24m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0013
Meas. tape FRT 30m(total L 32m)+wire 34m
L=32m,hole part=32m,with wire,1.6mm,34m. Tape end=triangle clasp,with wire,0.5mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0014
Meas. tape FRT 30m,1.6mm 316 PTFE coated
L=32m,hole=32m,with wire,1.6mm,34m,PFA. Tape end=triangle clasp. With wire,1.4x0.8mm. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5210
Measuring tape, BT 30m (total L 75m)
L=75m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5302
Measuring tape, CRT 10m/BT 5m (L 24m)
L=24m, hole part=12m, tape end=no clasp. With clasp, M3 screw,M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5304
Measuring tape, CRT 20m/BT 16m (L 45m)
L=45m, hole part=22m, tape end=no clasp. With clasp, M3 screw, M3 nut. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5305
Measuring tape, CRT 30m/BT 20m (L 65m)
L=65m, hole part=32m, tape end=no clasp. With clasp, M3 screw, M3 nut. Verwendung: LT5, LT11/LT12/LT14/LT16.
-
Nr 86 Order code 017860-5306
Measuring tape, FRT 5m (L 7m), tape only
L=7m, hole part=7m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5307
Measuring tape, FRT 10m(L12m), tape only
L=12m, hole part=12m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5309
Measuring tape, FRT 20m(L 22m),tape only
L=22m, hole part=22m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-0210
Universal joint
Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
Nr 86 Order code 017860-0211
Triangle joint
Verwendung: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/1212/LT1222.
-
-
-
Nr 88 Order code 017860-7003
Float LF400, SUS316, 5kg, LP
Low pressure, 5Kg. Usage: LT5, LT11/LT12/LT14/LT16.
-
Nr 88 Order code 017860-7010
Float LF400, SUS316, 8kg, LP
Low pressure, 8Kg. Usage: LT5, LT11/LT12.
-
Nr 88 Order code 017860-7001
Float HF400, SUS316, 8.3kg, MP/HP
High pressure, 8.3kg. Usage: LT5, LT11/LT12/LT14/LT16.
-
-
-
Nr 101 Order code 70106015
-
Nr 101 Order code 017860-0709
O-ring, bearing, P8, silicon rubber, LP
Size: D8mm, d1.9mm. Material: silicon. Usage: Roller, elbow, balancer, LT5, LT11/LT12, LT31/LT32.
-
-
-
Nr 102 Order code 017860-1259
SUS316 bearing, with o-ring 2 piece, LP
Bering stainless steel 316, guide elbow d4mm, o-ring silicon, rubber P8. 1 set (2 pieces). Usage: LT5, LT11/LT12, LT31/LT32.
-
-
-
Nr 104 Order code 017860-0018
-
Nr 104 Order code 017860-0482
-
Nr 104 Order code 017860-5445
90' Sheave elbow Rp 1-1/2 aluminum, LP
Usage: LT5, LT11, LT1112/1122, LT31.
-
-
-
Nr 101 Order code 70106014
Seal, elbow SCS14 low pressure V6502
Usage: LT5, LT11/12, LT31/32.
-
-
-
Nr 103 Order code 017860-0704
SUS316L elbow roller, LP/MP
Usage: LT5, LT11/LT12, LT1112/LT1122/LT1212/LT1222.
-
-
-
Nr 101 Order code 017860-0707
O-ring, bearing, PTFE, P10, HP
Size: D10mm, d1.9mm. Material: PTFE. Parts: roller bearing, angle, HP. Usage: LT5, LT14/LT16.
-
-
-
Nr 102 Order code 017860-0706
SS316 bearing, for elbow, Mid, Hi pres.
With O-ring PTFE JIS B2401 P10. Usage: LT5, LT14/LT16, LT34/LT36.
-
-
-
Nr 103 Order code 017860-0705
-
-
-
Nr 104 Order code 017860-0020
-
Nr 104 Order code 017860-0022
-
-
-
Nr 91 Order code 70106494
-
Nr 91 Order code 017860-5333
Washer, T-anchor, Cl.300, SUS316
D91mm, for ASME/JPI Cl.300 type. Usage: LT5, LT16.
-
Nr 91 Order code 70106003
Seal, top anchor, JIS 10K, V6502
JIS 10K/20K 40A RF, ASME NPS1-1/2" Cl.150 RF, JPI 40A 150lbs RF Usage: LT5, LT12, LT32.
-
-
-
Nr 93 Order code 017860-0808
-
-
-
Nr 94 Order code 017860-0058
Top-anchor, SUS316, socket weld-fix, LP
Complete set, welded socket. Material: SUS316. Usage: LT5, LT11.
-
-
-
Nr 91 Order code 71269669
Seal T-anchor (Alu housing),thread,V6502
Seal: D 51 x d42, T=1.0. Usage: LT5 low pressure, top anchor.
-
Nr 91 Order code 70106010
Seal, top anchor, thread, V6502
Low pressure. Thread connection. Usage: LT5, LT11/LT12.
-
-
-
Nr 92 Order code 017860-0030
Housing Cap, Aluminum, 1" threaded
Top anchor, cover, ADC. Usage: LT5, LT11.
-
-
-
Nr 94 Order code 017860-0025
T-anchor ASME 1-1/2" Cl.150 RF alumi, LP
Complete set, Threaded flange, case ADC. Internal part, SUS316. Usage: LT5, LT12.
-
Nr 94 Order code 017860-0026
T-anchor ASME 1-1/2" Cl.150 RF SUS316,LP
Complete set, welded flange, all 316. Usage: LT5, LT12.
-
Nr 94 Order code 017860-0027
T-anchor ASME 1-1/2" Cl.300 RF iron HP
T-anchor complete set. Internal part, SUS316. Usage: LT5, LT16.
-
Nr 94 Order code 017860-0820
Top anchor SUS316 threaded, PT1"
Complete set, theaded socket, all 316. Usage: LT5, LT11.
-
Nr 94 Order code 017860-5471
Top-anchor R1 aluminum (ADC6), LP
Complete set, threaded socket, Case ADC. Internal part, SUS316. Usage: LT5, LT11.
-
-
-
Nr 111 Order code 017860-0663
Teflon part assembly
Seal for shaft, PTFE. Seal, compression nut, PTFE. Tape tighten metal. Spring pin,x2. Usage: LT5, LT14/LT16.
-
-
-
Nr 112 Order code 017860-5117
-
-
-
Nr 113 Order code 017860-0033
Valve SCS13 ASME 1-1/2" Cl.150 RF
ASME 1-1/2" Cl.150 RF. Material: SCS13. Usage: LT5 MP/HP, LT14/LT16.
-
Nr 113 Order code 017860-0034
Valve SCS13 ASME 1-1/2" Cl.300 RF
ASME 1-1/2" Cl. 300 RF. Material: SCS13. Usage: LT5 MP/HP, LT14/LT16.
-
-
-
Nr 86 Order code 017860-5310
Measuring tape, FRT 30m(L 32m),tape only
L=32m, hole part=32m, without wire. Tape end= triangle clasp. Usage: LT5, LT11/LT12/LT16.
-
Nr 86 Order code 017860-5501
Measuring wire, 316, 5m
1.6mm,strand, 9m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5502
-
Nr 86 Order code 017860-5503
Measuring wire, 316, 16m
1.6mm,strand,20m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5504
Measuring wire, 316, 20m
1.6mm,strand,24m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5505
Measuring wire, 316, 30m
1.6mm,strand,34m,with wire,0.5mm,316,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5506
Measuring wire, PFA coated, 5m
2.6mm, 316, strand, PFA, coated, 9m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5507
Measuring wire, PFA coated, 10m
2.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5508
Measuring wire, PFA coated, 16m
2.6mm, 316, strand, PFA, coated, 20m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5509
Measuring wire, PFA coated, 20m
2.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5510
Measuring wire, PFA coated, 30m
2.6mm, 316, strand, PFA, coated, 34m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 86 Order code 017860-5430
Tape clamp
Plate, 13x60x0.2t, 316, M3-8 screw, nut. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.
-
Nr 86 Order code 017860-5432
Wire connector, triangle
Connector tape/wire. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1212/LT1222.
-
-
-
Nr 105 Order code 71134091
Bearing x2, > seal pot, elbow roller
Material: PVC. PTFE O-ring. Usage: LT5, LT11/LT12.
-
-
-
Nr 106 Order code 71134090
-
-
-
Nr 107 Order code 017860-0720
-
Nr 107 Order code 017860-5452
-
-
-
Nr 108 Order code 52017100
Seal pot PVC/PVC, JIS 10K 40A FF
Material: tank side PVC, gauge side PVC, with paraffin oil 2 litre Elbow material: PVC. Connection: flange JIS 10K 40A FF.
-
Nr 108 Order code 52017103
Seal pot SGP/AC4A, Rp 1-1/2"
Material: tank side, gauge side steel. Elbow material: AC4A. Connection: thread, PS 1-1/2".
-
Nr 108 Order code 52017104
Seal pot SGP/AC4A, JIS 10K 40A RF
Material: tank side steel, gauge side steel. With paraffin oil 2 litre. Elbow material: aluminum casting, 4A. Connection: flange JIS 10K 40A RF.
-
Nr 108 Order code 52017110
Seal pot 316/316, Rp 1-1/2"
Material: tank side 316, gauge side 316. With paraffin oil 2 litre. Elbow material: 316. Connection: thread, PS 1-1/2".
-
Nr 108 Order code 52017111
Seal pot 316/316, JIS 10K 40A RF
Material: tank side 316, gauge side 316. With paraffin oil 2 litre. Elbow material: 316. Connection: flange JIS 10K 40A RF.
-
-
-
Nr 101 Order code 56004354
Cover elbow Alu, packing, plug
Cover, aluminium, with drain plug, paking, cork. Usage: LT5.
-
-
-
Nr 87 Order code 71134089
Guide wire, strand, SUS316, 12m x 2
3mm, SUS316, strand, set 12m x 2. Wire, 0.5mm, 1m. Usage: LT5, LT11/LT12.
-
Nr 87 Order code 017860-0047
Guide wire, strand, PFA coated, 24m
4.6mm, 316, strand, PFA, coated, 24m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-0048
Guide wire, strand, PFA coated, 36m
4.6mm, 316, strand, PFA, coated, 36m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-0049
Guide wire, strand, PFA coated, 44m
4.6mm, 316, strand, PFA, coated, 44m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-0050
Guide wire, strand, PFA coated, 64m
4.6mm, 316, strand, PFA, coated, 64m. Usage: LT5, LT11/LT12/14/16, LT1122/LT1222.
-
Nr 87 Order code 017860-5464
Guide wire, strand, PFA coated, 14m
4.6mm, 316, strand, PFA, coated, 14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5516
Guide wire, strand, SUS316, 14m
3mm,316,strand,14m,with,wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5517
Guide wire, strand, SUS316, 24m
3mm,316,strand,24m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5518
Guide wire, strand, SUS316, 36m
3mm,316,strand,36m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5519
Guide wire, strand, SUS316, 44m
3mm,316,strand,44m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5520
Guide wire, strand, SUS316, 64m
3mm,316,strand,64m,with wire,0.5mm,1m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5521
Guide wire, solid, SUS316, 7m x 2
D=3mm, 316, Solid, L=14m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5522
Guide wire, solid, SUS316, 12m x 2
D=3mm, 316, Solid, L=24m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5523
Guide wire, solid, SUS316, 18m x 2
D=3mm, 316, Solid, L=36m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5524
Guide wire, solid, SUS316, 22m x 2
D=3mm, 316, Solid,L=44m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 017860-5525
Guide wire, solid, SUS316, 32m x 2
D=3mm, 316, Solid, L=64m. Usage: LT5, LT11/LT12/LT14/LT16, LT1122/LT1222.
-
Nr 87 Order code 52016949
Anchor hook SS400, bolt, nut PVC
2x L-type anchor SS400, bolt, nut PVC. Usage: LT5-1, LT11/LT12.
-
Nr 87 Order code 52016951
Anchor hook SUS316, bolt, nut PVC
2x L-type anchor SUS316, bolt, nut PVC. Usage: LT5-1, LT11/LT12.
-
Nr 87 Order code 017860-5441
Anchor hook SS400, bolt, nut SUS316
2x L-type anchor SS400, bolt M10-25 nut, spring washer, washer SUS316. Usage: LT5 LP/LT11/LT12.
-
Nr 87 Order code 017860-5442
Anchor hook SUS316, bolt, nut SUS316
2x L-type anchor SUS316, bolt M10-25, nut, spring washer, washer SUS316. Usage: LT5, LT11/LT12/LT14/LT16.
-
-
-
Nr 80 Order code 017860-0721
Wire guide socket, FRT instal. Rc 1-1/2
Installed at top pipe end. Usage: LT5, LT11/LT12.
-
Nr 80 Order code 017860-5420
Gauge bracket, steel
Mounting, W32xH300xD90x4.5t. Usage: LT5, LT11/LT12/LT14/LT16, LT1112/LT1122/LT1212/LT1222.
-
-
Predecesor
