Digital pH sensor
Memosens CPS61E

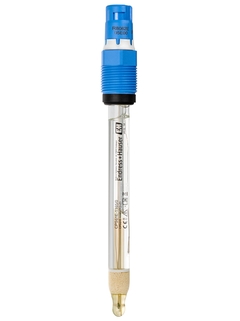

Memosens CPS61E - Digital pH sensor for the food industry and bioreactors in the biotech industry ©Endress+Hauser

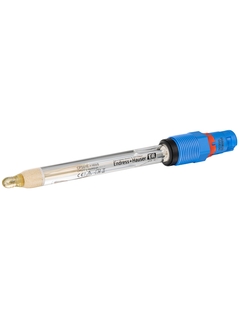

Memosens CPS61E - Digital pH sensor for fermenters and bioreactors in the pharmaceutical industry ©Endress+Hauser

The pH value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens 2.0 glass sensor for the food & beverage industry and for bioreactors in biotech industry

Keep the pH value in the optimum range and maximize your product yield with Memosens CPS61E. Its rugged design and long-term stability ensure extremely accurate and reproducible measured values even after CIP/SIP or autoclaving. CPS61E features Memosens 2.0 digital technology, offering extended storage of calibration and process data for predictive maintenance. The sensor resists moisture and enables lab calibration, enhancing process integrity and increasing process uptime.

  • Simple products

  • Easy to select, install and operate

Excelencia técnica

Simplicidad

  • Productos estándar

  • Seguros, resistentes y con poco mantenimiento

Excelencia técnica

Simplicidad

  • Productos de alta gama

  • Altamente funcionales y prácticos

Excelencia técnica

Simplicidad

  • Productos especializados

  • Diseñados para aplicaciones exigentes

Excelencia técnica

Simplicidad

Variable

Gamas FLEX Excelencia técnica Simplicidad
  • F
  • L
  • E
  • X

Gama Fundamental

Satisfaga sus necesidades básicas de medición

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Lean

Maneje los principales procesos fácilmente

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Extended

Optimice sus procesos con tecnologías innovadoras

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Xpert

Domine las aplicaciones más exigentes

Excelencia técnica
Simplicidad

Variable

Producto no disponible en este mercado

  • Resumen de especificaciones

    • Rango de medición

      pH: 0 to 14

    • Temperatura del proceso

      Application N:
      0 to 100 °C (32 to 212 °F)
      Up to 140 °C (284 °F) for sterilization

    • Presión de proceso

      0.8 to 7 bar (11.6 to 101.5 psi) absolute

please wait Loading alternative products

Selección rápida

Elija entre nuestras opciones recomendadas
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

o

Configuración individual

Continúe seleccionando entre todas las opciones posibles
  • Ventajas

    • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

    • The sensor's exceptional accuracy and reproducibility...

  • Ámbito de aplicación

    Memosens CPS61E measures pH in:

    • Biotech and pharma industries
      - Bioreactors/fermenters: process control in enzyme production
      - Bioreactors/fermenters: control of culture growth

    • Food & Beverage
      - CIP/SIP applications

    With ATEX, IECEx, CSA C/US, NEPSI...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Electrodo de vidrio

  • Aplicación

    Hygienic and sterile applications (sterilizable, autoclavable):

    • Bioreactor/fermenter

    • Biotechnology

    • Pharmaceutical industry

    • Foods

  • Característica

    Digital pH electrodes for hygienic production processes with ion trap for
    long-term stable reference

  • Rango de medición

    pH: 0 to 14

  • Principio de medición

    Gel compact electrode with ceramic junction and ion trap

  • Diseño

    All shaft lengths with temperature sensor
    Advanced gel technology

  • Material

    Sensor shaft: Glass to suit process

    pH membrane glass: Type N

    Metal lead: Ag/AgCl

    Open aperture: Ceramic junction, zirconium dioxide

    O-ring: FKM

    Process coupling: PPS fiber-glass reinforced

    Nameplate: Ceramic metal oxide

  • Dimensión

    Diameter: 12 mm (0.47 inch)
    Shaft lengths: 120, 225, 360 and 425 mm
    (4.72, 8.86, 14.2 and 16.7 inch)

  • Temperatura del proceso

    Application N:
    0 to 100 °C (32 to 212 °F)

    Up to 140 °C (284 °F) for sterilization

  • Presión de proceso

    0.8 to 7 bar (11.6 to 101.5 psi) absolute

  • sensor de temperatura

    NTC 30k

  • Certificación Ex

    With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
    hazardous areas Zone 0, Zone 1 and Zone 2.

  • Conexión

    Inductive, contactless connection head with Memosens 2.0 technology

  • Protección contra ingreso

    IP68

Documentos / Manuales / Software

Accesorios / Piezas de repuesto

Nr
Order code
Specification
    • Order code 71038228

      Memoclip label Memosens sensor

      for assignment of sensors to measuring loop. 100 sensor clips with printable labels

    • Order code CPY20-

      Technical buffer solution CPY20

      pH quality buffer solution, referenced to primary reference material of PTB and standard reference material of NIST. in DAkkS accredited buffer Laboratory.

    • Order code CPY4-

      KCL-Electrolyte solution CPY4

      For liquid filled electrodes
