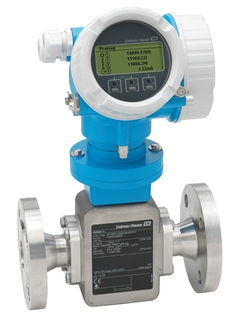

Proline Promag H 200
Caudalímetro electromagnético
Caudalímetro para caudales pequeños con auténtica tecnología a dos hilos por lazo de corriente
Promag H es el sensor preferido para aplicaciones con los mayores requisitos en las industrias químicas y de las ciencias de la vida. Promag H 200 permite una integración rentable y sin problemas en las infraestructuras. Las ventajas adicionales son un funcionamiento seguro en zonas con peligro de explosión gracias a un diseño intrínsecamente seguro (para zonas con peligro de deflagración ia).La tecnología Heartbeat garantiza la seguridad del proceso en todo momento.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Máx. error medido
±0.5%
-
Rango de medición
0...18 m3/h
-
Rango de temperatura del medio
-20...+150°C
(-4...+300°F) -
Máx. presión de proceso
PN16...40
-
Materiales húmedos
Recubrimiento: PFA
Electrodos: 1.4435 (316L); Aleación C22, 2.4602 (UNS N06022); Tantalio; Platino
-
Selección rápida
Configuración individual
-
Ventajas
Concepto flexible de instalación – varias conexiones de proceso higiénico
Ahorro energético en la medición de caudal – sin pérdida de carga gracias a una constricción transversal
Cableado adecuado del dispositivo – compartimiento de conexiones independiente
Libre de mantenimiento - sin partes móviles
Verificación integrada -...
-
Ámbito de aplicación
El principio de medición es prácticamente independiente de la presión, densidad, temperatura y viscosidad
Dedicado a la medición de las cantidades de flujo más pequeñas.
Propiedades del equipo
Revestimiento realizado de PFA
Caja del sensor realizada de...
