Proline Promass P 500
Caudalímetro por efecto Coriolis

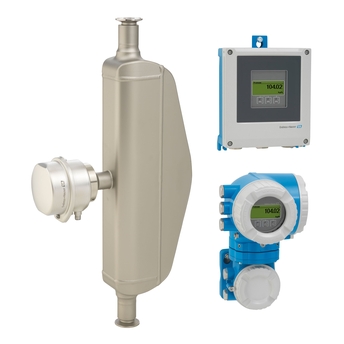

Imagen del caudalímetro Coriolis Proline Promass P 500 / 8P5B para la industria de las ciencias de la vida ©Endress+Hauser

Proline Promass P 500 para la industria de las ciencias de la vida

El principio de medición de caudal por Coriolis

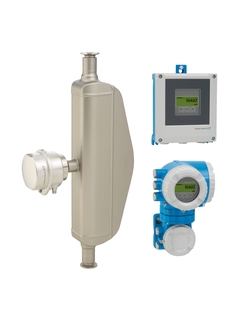

  • Imagen del caudalímetro Coriolis Proline Promass P 500 / 8P5B para la industria de las ciencias de la vida

Especialista en ciencias de la vida, como versión remota de hasta 4 E/S

Promass P 500 es el especialista en aplicaciones en condiciones de esterilidad en la industria de las ciencias de la vida. Se utiliza en aplicaciones biotecnológicas que requieren mayor cumplimiento de las directrices y regulaciones. Con su innovador transmisor remoto, Promass P 500 maximiza la flexibilidad de instalación y la seguridad de operación en entornos exigentes. Con su innovador transmisor remoto Promass P 500 maximiza la flexibilidad de instalación y la seguridad de operación en entornos exigentes. La Heartbeat Technology garantiza la seguridad de proceso en todo momento.

Componentes adicionales

  • Ventajas

    • La máxima calidad de proceso – Cumple totalmente con los requisitos de la industria

    • Menor cantidad de puntos de medición – Medición multivariable (caudal, densidad, temperatura)

    • Ahorro de espacio – Sin necesidad de tramos rectos de entrada/salida

    • Acceso...

  • Ámbito de aplicación

    • El principio de medición funciona con independencia de las propiedades físicas del fluido tales como la viscosidad o la densidad

    • Destinado a aplicaciones en condiciones de esterilidad en el sector de la industria de las ciencias de la vida.

    Propiedades...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Coriolis

  • Encabezado del producto

    Specialist for life sciences, as remote version with up to 4 I/Os. Dedicated to applications under sterile conditions in the life sciences industry.

  • Aprobaciones higiénicas y certificados

    cGMP

  • Measuring principle

    Coriolis

  • Encabezado del producto

    El especialista para las ciencias biológicas, como versión remota con hasta 4 I/Os. Dedicado para aplicaciones bajo condiciones estériles en la industria de las ciencias biológicas.

  • Características del sensor

    La más alta calidad de proceso - cumplimiento total de requerimientos de la industria. Menos puntos de medición de proceso - medición multivariable (flujo, densidad, temperatura). Instalación ahorradora de espacio - sin necesidad de corridas de entrada/salida. Conforme a ASME BPE, 3-A y EHEDG & baja ferrita delta. Tubo de medición electro pulido en 1.4435 (316L).

  • Características del transmisor

    Acceso completo a información de diagnóstico y procesos - numerosos I/Os libremente combinables y fieldbuses. Complejidad y variedad reducida - funcionalidad libremente configurable de I/O. Verificación integrada - Tecnología Hearbeat. Versión remota con hasta 4 I/Os. Display retro iluminado con controles táctiles y acceso WLAN.

  • Rango de diámetro nominal

    DN 8 a 50 (³⁄₈ a 2")

  • Materiales húmedos

    Tubo de medición: 1.4435 (316L)
    Conexión: 1.4435 (316L); 1.4404 (316/316L)

  • Variables medidas

    Flujo másico, densidad, temperatura, flujo volumétrico, flujo volumétrico corregido, densidad de referencia, concentración

  • Máx. error medido

    Flujo másico (líquido): ±0.1 %
    Flujo volumétrico (líquido): ±0.1 %
    Flujo másico (gas): ±0.5 %
    Densidad (líquido): ±0.0005 g/cm³

  • Rango de medición

    0 a 70 000 kg/h (0 a 2570 lb/min)

  • Máx. presión de proceso

    PN 40, Clase 150, 20K

  • Rango de temperatura del medio

    Estándar: –50 a +150 °C (–58 a +302 °F)
    Opción: –50 a +205 °C (–58 a +401 °F)

  • Rango de temperatura ambiente

    Estándar: –40 a +60 °C (–40 a +140 °F)
    Opción: –50 a +60 °C (–58 a +140 °F)

  • Material de carcaza del sensor

    1.4301 (304), resistente a la corrosión

  • Material de la cubierta del transmisor

    Recubierto de AlSi10Mg; 1.4409 (CF3M) similar a 316L; Policarbonato

  • Grado de protección

    Sensor versión remota (estándar): IP66/67, Gabinete tipo 4X
    Sensor versión remota (opcional): IP69K. Transmisor versión remota: IP66/67, Gabinete tipo 4X

  • Pantalla/Operación

    Display retro iluminado de 4 líneas con control táctil (operación desde afuera)
    Posible configuración vía el display local y las herramientas de operación

  • Salidas

    4 salidas:
    4-20 mA HART (activo/pasivo)
    4-20 mA WirelessHART
    4-20 mA (activo/pasivo)
    Salida de pulso/frecuencia/interruptor (activa/pasiva)
    Salida de pulso doble (activa/pasiva)
    Salida de relevador

  • Entradas

    Entrada de estatus
    Entrada 4-20 mA

  • Comunicación digital

    HART, HART inalámbrico, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, Ethernet/IP, PROFINET

  • Suministro de energía

    DC 24 V
    AC 100 a 230 V
    AC 100 a 230 V / DC 24 V (área no peligrosa)

  • Aprobaciones para áreas peligrosas

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

  • Seguridad del producto

    CE, C-TICK, EAC

  • Seguridad Funcional

    Seguridad funcional

  • Aprobaciones y certificados metrológicos

    Calibración realizada en instalaciones de calibración acreditadas (de acuerdo a ISO/IEC 17025)
    La tecnología Heartbeat cumple con los requerimientos de rastreabilidad de acuerdo a ISO 9001:2008 – Sección 7.6 a (certificación TÜV)

  • Certificados y aprobaciones de presión

    3.1 material, calibración realizada en instalaciones de calibración acreditadas (de acuerdo a ISO/IEC 17025), NAMUR, PED, CRN

  • Certificados del material

    material 3.1

  • Aprobaciones higiénicas y certificados

    3-A, EHEDG, ASME BPE, ISPE

  • Measuring principle

    Coriolis

  • Encabezado del producto

    Specialist for life sciences, as remote version with up to 4 I/Os. Dedicated to applications under sterile conditions in the life sciences industry.

  • Características del sensor

    Highest process quality – fully compliant to industry requirements. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. ASME BPE, 3-A and EHEDG conform & low delta ferrite. Electropolished measuring tube in 1.4435 (316L).

  • Características del transmisor

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access.

  • Rango de diámetro nominal

    DN 8 to 50 (⅜ to 2")

  • Materiales húmedos

    Measuring tube: 1.4435 (316L)
    Connection: 1.4435 (316L); 1.4404 (316/316L)

  • Variables medidas

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • Máx. error medido

    Mass flow (liquid): ±0.10 %
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.50 %
    Density (liquid): ±0.0005 g/cm³

  • Rango de medición

    0 to 70 000 kg/h (0 to 2570 lb/min)

  • Máx. presión de proceso

    PN 40, Class 150, 20K

  • Rango de temperatura del medio

    Standard: –50 to +150 °C (–58 to +302 °F)
    Option: –50 to +205 °C (–58 to +401 °F)

  • Rango de temperatura ambiente

    Standard: –40 to +60 °C (–40 to +140 °F)
    Option: –50 to +60 °C (–58 to +140 °F)

  • Material de carcaza del sensor

    1.4301 (304), corrosion resistant
    Sensor connection housing (standard): AlSi10Mg, coated
    Sensor connection housing (option): 1.4301 (304); 1.4404 (316L)

  • Material de la cubierta del transmisor

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • Grado de protección

    Sensor remote version (standard): IP66/67, type 4X enclosure
    Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure

  • Pantalla/Operación

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible

  • Salidas

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • Entradas

    Status input
    4-20 mA input

  • Comunicación digital

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • Suministro de energía

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • Aprobaciones para áreas peligrosas

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

  • Seguridad del producto

    CE, C-tick, EAC marking

  • Seguridad Funcional

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Aprobaciones y certificados metrológicos

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • Certificados y aprobaciones de presión

    PED, CRN

  • Certificados del material

    3.1 material

  • Aprobaciones higiénicas y certificados

    3-A, EHEDG, ASME BPE, ISPE, cGMP
