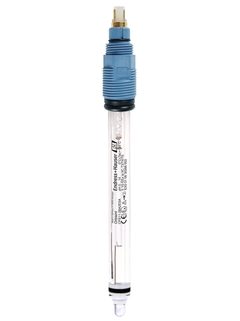

Sensor analógico de pH
Orbisint CPS11
Electrodo de vidrio para aplicaciones estándar
Orbisint CPS11 es el equipo de uso universal para la medición de pH en aplicaciones de proceso y medioambientales. Trabaja con fiabilidad y precisión incluso en aplicaciones con productos fuertemente alcalinos o en zonas con peligro de explosión. Diseñado para ofrecer un bajo mantenimiento y una vida útil prolongada, el sensor le ofrece la mejor relación eficiencia-precio.
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Rango de medición
pH 0-14
-
Temperatura del proceso
máx.. 135°C (274°F)
-
Presión de proceso
máx.. 16 bar (230 psi)
-
Selección rápida
Configuración individual
-
Ventajas

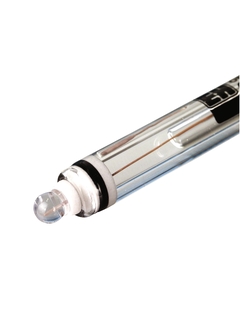

Electrodo robusto con trampa de iones para difusión de contaminantes, requiere bajo mantenimiento gracias a su gran diafragma anular de politetrafluoetileno (PTFE) repelente a la suciedad
Apto para aplicaciones exigentes: Vidrio de proceso para productos...
-
Ámbito de aplicación
Monitorización a largo plazo y monitorización de nivel límite de procesos con condiciones estables:
- Industria química
- Industria de pulpa y papel
- Centrales energéticas (p. ej. lavadores de gases de combustión, agua para alimentación de calderas)
-...
