Proline t-mass I 500
Caudalímetro másico por dispersión térmica

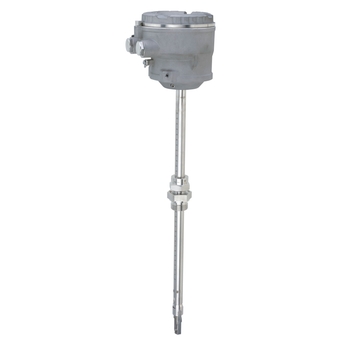

Prolinet-massI 500: versión de inserción de acero inoxidable para tuberías/conductos de hasta DN 1500 (60") ©Endress+Hauser

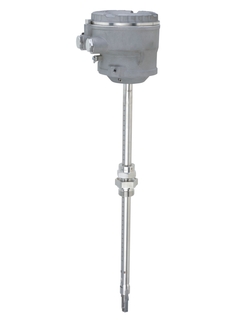

Proline t-mass I 500: versión de inserción de acero inoxidable para tuberías/conductos de hasta DN 1500 (60")

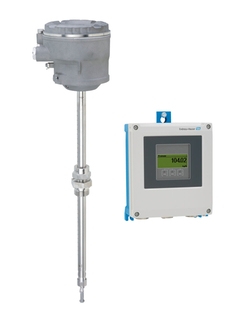

Proline t-mass I 500 con caja de conexiones de acero inoxidable y transmisor remoto ©Endress+Hauser

Proline t-mass I 500 con caja de conexiones de acero inoxidable y transmisor remoto

Descubra t-mass F e I a través de código QR 3D ©Endress+Hauser

Descubra t-mass F e I a través de código QR 3D

Proline t-mass F/I 300/500: el caudalímetro másico por dispersión térmica con estabilidad a largo plazo y una gran sensibilidad para los gases de servicio

El principio de medición de caudal por dispersión térmica

Caudalímetro de inserción con estabilidad a largo plazo en versión remota con hasta 4 E/S

El diseño del sensor patentado de t-mass I proporciona una estabilidad de medición sin precedentes en la medición de caudal másico por inserción térmica. Compensa en tiempo real los cambios en las condiciones del proceso: temperatura, presión, dirección del caudal y tipo de gas. El transmisor remoto innovador de t-mass I 500 maximiza la flexibilidad de la instalación y la seguridad de operación en entornos exigentes. Heartbeat Technology garantiza la fiabilidad de medición y y el cumplimiento de verificaciones periódicas.
