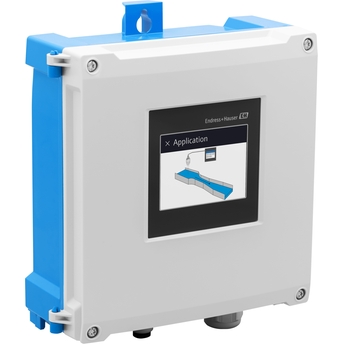

FlexView FMA90: unidad de control para la medición del nivel y el caudal

Nivel de radar

Level, pump control, open channel flow measurement, data logging, rake control, storm overflow basin

Degree of protection of polycarbonate field housing;
and aluminum field housing: IP65/NEMA Type 4x;
Degree of protection of DIN rail housing: IP20;
Degree of protection of panel housing: IP65/NEMA Type 4 (at front,;
if mounted in cabinet door), IP20 (at rear, if mounted in cabinet door);
sensor recognition and parameter mapping;
of FMR20B/FMR30B/FMX21 sensors

100 … 230 VAC;
10.5 … 32 VDC

-40 to +60 °C (-40 to +140 °F) (Type tested);
-35 to +60 °C (-31 to +140 °F) (approved by CSA)

Input:
1x or 2 x 4-20mA/HART
Output:
2 x Analog,
1 relay or 5 relays (2 x SPDT, 3 x SPST),
1 or 3 open collector (NPN)

ATEX, CSA, EAC, JPN Ex, NEPSI, INMETRO

3.5" TFT touch color display for onsite operation with backlight, WLAN connectivity or communication via Ethernet, guided wizzards vor commissioning, up to two level sensors
Housing:
Panel-mounted / DIN rail / Field

Sensors: FMR10B, FMR20B, FMR30B, FMX21, FMU30

Sólido nivel de radar

Level, pump control,open channel flow measurement, data logging, rake control, storm overflow basin

Degree of protection of polycarbonate field housing;
and aluminum field housing: IP65/NEMA Type 4x;
Degree of protection of DIN rail housing: IP20;
Degree of protection of panel housing: IP65/NEMA Type 4 (at front,;
if mounted in cabinet door), IP20 (at rear, if mounted in cabinet door);
sensor recognition and parameter mapping;
of FMR20B/FMR30B/FMX21 sensors

100 … 230 VAC;
10.5 … 32 VDC

–40 to +60 °C (–40 to +140 °F) (Type tested);
–35 to +60 °C (–31 to +140 °F) (approved by CSA)

Input:
1x or 2 x 4-20mA/HART
Output:
2 x Analog,
1 relay or 5 relays (2 x SPDT, 3 x SPST),
1 or 3 open collector (NPN)

ATEX, CSA, EAC, JPN Ex, NEPSI, INMETRO

3.5" TFT touch color display for onsite operation with backlight, WLAN connectivity or communication via Ethernet, guided wizzards vor commissioning, up to two level sensors
Housing:
Panel-mounted / DIN rail / Field

Sensors: FMR10B, FMR20B, FMR30B, FMX21, FMU30
