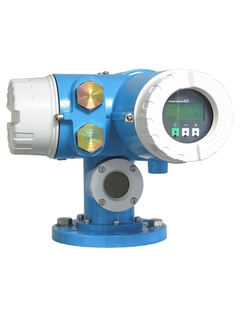

Proservo NMS5

• SIL2 Certified • Measures liquid to an accuracy of +/- 0.7 mm •Measures two clear interface levels and specific gravity of up to three liquid phases •Profiling of Iiquid density throughout the tank (Tank profile) and upper layer (I/F profile) •Latest microtechnology keeps the design simple, lightweight and compact •Wetted parts are completely separated from the electronic circuit •Tank top mounting with 3” flange weighing only 12 kg (aluminum version) • Wide range of output signals including V1, RS 485,WM550,M/S, Enraf BPM and HART® protocol

Intelligent tank gauge with high accuracy performance Liquid level, I/F, Density & Density Profile

Remote monitoring and control for Proservo tank gauge Indication via two line illuminated display Operation via 3 optical keys (touch control) and Endress+Hauser user friendly Programming matrix Protection class IP 67 housing Explosion proof forhazardous area mounting

The proservo NMS series ofintelligent tank gauges are designed for high accuracy measurement in storage and process applications. They fulfill the exact demands of tank inventory management, loss control, total saving and safe operation.

High accuracy servo level gauge based on the principle of displacement measurement

Tank side monitor for integration and communication with Proservo and Prothermo

Proservo NMS5 of intelligent tank gauge is designed for high-accuracy liquid level measurement in storage and process applications. NMS5 performs the tank inventory management, loss control, total cost saving, and safe operation. NMS5 is designed for the purpose of single or multi-task installations, converting a wide range of measurement functions.

Tank Gauging - MODBUS communication protocol

Tank Gauging - WM550 communication protocol

Safety Instructions for Electrical Apparatus Certified for Use in Explosion-hazardous Areas Designation according to Directive 94/9/EC
