TR63

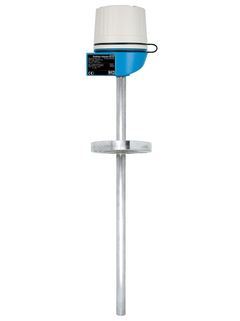

Sensor de temperatura Pt100 a prueba de explosiones
Monitorización segura de temperaturas de proceso en aplicaciones exigentes, p.ej., en la industria Oil & Gas
Este robusto sensor de temperatura está diseñado para utilizarse en aplicaciones con entornos agresivos o exigencias de seguridad importantes, por ejemplo, en las industrias química, Oil & Gas y energética. Se pueden tratar las aplicaciones exigentes, las sustancias corrosivas y las más altas presiones utilizando estos sólidos tubos de protección y materiales especiales. Un transmisor para cabezal opcional con todos los protocolos de comunicación habituales permite su uso con unas características de exactitud y fiabilidad de medición mejoradas en comparación con otros sensores de conexión directa por cable. Flexibilidad de configuración.
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Precisión
clase A conforme a IEC 60751
1/3 DIN clase B conforme a IEC 60751 -
Tiempo de respuesta
dependiendo de la configuración
t50 = 4 s
t90 = 8 s -
Máx. presión de proceso (estática)
a 20 °C: 100 bar (1.450 psi)
-
Rango de temperatura de operación
PT 100:
-200 °C ...600 °C
(-328 °F ...1.112 °F) -
Máx. longitud de inmersión bajo demanda
hasta 10.000,00 mm (393,70'')
-
Selección rápida
Configuración individual
-
Ventajas
Tipos de protección para uso en zonas clasificadas: seguridad intrínseca (Ex ia), antideflagrante (Ex d), equipo que no produce chispas (Ex nA)
Alto nivel de flexibilidad gracias a su diseño modular con cabezales terminales adaptados al estándar DIN EN...
-
Ámbito de aplicación
Aplicaciones exigentes
La industria de procesos Oil & Gas
Rango de medida: -200 a +600 °C (-328 a 1.112 °F)
Rango de presión estática de hasta 100 bar dependiendo de la conexión a proceso utilizada
Clase de protección: IP68
Documentos / Manuales / Software
-
Technical Information
Omnigrad S TR63
RTD thermometer EEx-d or EEx-ia certified, replaceable insert,
thermowell
from pipe, process connection threaded, flanged or sliding.
PCP (4...20 mA), HART® or PROFIBUS-PA® electronicsTechnical Information (TI) -
Omnigrad S TR63, TC63
Información técnica
Sonda de temperatura modular, con elemento de inserción RTD o TC
opcionalTechnical Information (TI) -
Omnigrad S TR/TC6x
RTD / TC Thermometer
1Ex d IIC T6...T1 Gb X
Ex tb IIIC 85 °C....450 °C Da X
Ga/Gb Ex d IIC T6...T1 X
Ex ta/tb IIIC 85 °C...450 °C Da/Db XEx Safety Instructions (XA) -
TR/TC6x
Ex d IIC T1...T6 Gb
Ex Safety Instructions (XA) -
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x
ATEX: II 1D, II 1/2D Ex ia IIIC o II 1G, II 1/2G Ex ia IIC IECEx: Ex ia
IIC
Instrucciones de seguridad
Instrucciones de seguridad para aparatos eléctricos certificados para su
uso en zonas con peligro de explosión.Ex Safety Instructions (XA) -
RTD/TC thermometers
ATEX II 3G, II 3D
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411,
TM412
Thermometers and inserts
Ex nA IIC T6...T1 GcEx Safety Instructions (XA) -
TR1x, TR4x, TR88, TSC310, TST310, TR6x, TC1x, TC6x, TC88, TPC100,
TPR100, TM411, TM412, TR24
Thermometers and inserts
Ex iaIIC T1-T6 Ga, Ex iaD 20 T85-T450Ex Safety Instructions (XA) -
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db ХEx Safety Instructions (XA) -
TR/TC6x
RTD / TC Thermometer
ATEX:
II1/2G Ex db IIC T6...T1 Ga/Gb
II2GEx db IIC T6...T1 Gb
II1/2D Ex ta/tb IIIC T85 °C...T450 °C Da/Db
II2D Ex tb IIIC T85 °C...T450 °C Db
IECEx:
Ex db IIC T6...T1 Ga/Gb
Ex db IIC T6...T1 Gb
Ex ta/tb IIIC T85 °C...T450 °C Da/Db
Ex tb IIIC T85 °C...T450 °C DbEx Safety Instructions (XA) -
Safety instructions RTD / TC Thermometer
Omnigrad S TR/TC 6x
ATEX II1/2, 2GD or II2G
(Ex d IIC T5, T6; Ex tD A21 IP66 T85 °C T100 °C)Ex Safety Instructions (XA) -
iTHERM TS111, TM211
Omniset TPx100, Omnigrad TSx310
RTD/TC inserts and cable thermometers
ATEX:
II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC
IECEx:
Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
Fields of Activities (FA)12/19French -
温度测量
过程工业用温度传感器和温度变送器
Fields of Activities (FA)12/14Chino -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznychFields of Activities (FA)10/14Polaco -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.Fields of Activities (FA)06/13Ruso -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processoFields of Activities (FA)04/18Italiano -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
Fields of Activities (FA)04/18Español -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)03/13Inglés -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
Fields of Activities (FA)03/13Turco -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Fields of Activities (FA)02/20Alemán -
Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)02/20Inglés -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Competence Brochure (CP)08/11Ruso -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиCompetence Brochure (CP)04/10Ruso -
Process RTD Heavy duty
Código de producto: TR63-
Número Declaración: HE_00520_01.17
Especificaciones del fabricante: RoHSManufacturer DeclarationInglés -
Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC General purpose
Código de producto: TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TR10-, TR11-, TR12-, TR13-
Manufacturer DeclarationInglés -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Código de producto: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
Número Declaración: EC_00169_02.16EU DeclarationAlemán , Inglés , French -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
Código de producto: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM412-, TM411-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Número Declaración: EC_00177_02.16EU DeclarationAlemán , Inglés , French -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Código de producto: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Número Declaración: EC_00568_01.17EU DeclarationAlemán , Inglés , French -
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
Código de producto: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
Número Declaración: EC_00136_02.16EU DeclarationAlemán , Inglés -
Process RTD Heavy duty, Process TC Heavy duty
Código de producto: TC61-, TC62-, TC63-, TC65-, TC66-, TR61-, TR62-, TR63-, TR65-, TR66-
Número Declaración: EC_00096_02.15EU DeclarationAlemán , Inglés -
Process RTD General purpose, Process TC General purpose, Process RTD Hygienic, Process RTD Heavy duty, Process RTD Direct contact, Process TC Heavy duty, Process TC direct in contact, ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS
Código de producto: TC10-, TC12-, TC13-, TR11-, TR12-, TR13-, TR15-, TR24-, TM411-, TM412-, TR10-, TR45-, TR47-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TST310-, TC15-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TSC310-, TPR100-, TPC100-, TS111-
Número Declaración: EC_00177_01.16EU DeclarationAlemán , Inglés , French -
Process RTD General purpose, Process RTD Heavy duty, Process TC General purpose, Process TC Heavy duty
Código de producto: TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Región: China
Entidad certificadora: ACMA
Número de certificado: MD-17033A/09/ENMiscellaneousInglés -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic
Código de producto: TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS101-, TS111-, TST310-, TST434-, TST602-, TR45-, TR44-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-, TM411-, TM401-, TET300-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: TC RU D-DE.AZ01.B.01156MiscellaneousRuso -
ACCESSORIES: RTD INSERT, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic
Código de producto: TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR100-, TR88-
Región: South Korea
Entidad certificadora: KOSHA
Protección: Ex ia IIC T6...T1Explosion Protection -
Process RTD Heavy duty, Process TC Heavy duty
Código de producto: TR66-, TR65-, TR63-, TR62-, TR61-, TC66-, TC65-, TC63-, TC62-, TC61-
Región: China
Entidad certificadora: NEPSI
Protección: Ex d IIC T6...T4 GbExplosion ProtectionChino -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, process displays, head transmitters, Field transmitter, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Código de producto: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
Región: India
Entidad certificadora: NAGPUR
Protección: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4Explosion ProtectionInglés -
Process RTD Heavy duty, Process RTD Hygienic
Código de producto: TR61-, TR62-, TR63-, TR65-, TR66-, TC61-, TC62-, TC63-, TC65-, TC66-
Región: Europe (ATEX)
Entidad certificadora: CESI
Categoría: II1/2GD, II2GD, II2G
Protección: Ex d IIC T6, Ex tD A21Explosion ProtectionInglés , Italiano -
Process RTD Heavy duty
Código de producto: TR61-, TR62-, TR63-, TR65-, TR66-
Región: South Korea
Entidad certificadora: KOSHA
Protección: Ex d IIC T6...T4Explosion Protection -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Código de producto: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Región: China
Entidad certificadora: NEPSI
Protección: Ex ia IIC T6...T1 Ga, Ex iaD Txxx°CExplosion ProtectionChino -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Código de producto: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Región: Europe (ATEX)
Entidad certificadora: DEKRA
Categoría: II 1/2 D, II 1/2 G, II 1 D, II 1 G
Protección: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C DaExplosion ProtectionInglés -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Código de producto: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TS211-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TM111-, TM131-, TM411-, TPC100-, TPR100-
Región: China
Entidad certificadora: NEPSI
Protección: Ex nA IIC T6...T1 GcExplosion ProtectionInglés -
Process RTD Heavy duty, Process TC Heavy duty
Código de producto: TC61-, TC62-, TC63-, TC65-, TC66-, TR61-, TR62-, TR63-, TR65-, TR66-
Región: International (IECEx)
Entidad certificadora: KEMA
Protección: Ex d IIC T6...T1 Gb, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion ProtectionInglés -
Process RTD Heavy duty, Process TC Heavy duty
Código de producto: TC61-, TC62-, TC63-, TC65-, TC66-, TR61-, TR62-, TR63-, TR65-, TR66-
Región: Europe (ATEX)
Entidad certificadora: KEMA
Categoría: II 2 D, II 2 G, II 1/2 D, II 1/2 G
Protección: Ex d IIC T6...T1 Ga/Gb, Ex d IIC T6...T1 Gb, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion ProtectionInglés -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
Código de producto: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR10-, TPR100-, TPC100-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Protección: Ex d IIC T6...T1 Ga/Gb, Ex d IIC Txxx°C Gb, Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/Db, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion ProtectionRuso -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Código de producto: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TR11-, TR10-, TPC100-, TM411-, TST310-, TPR100-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
Región: International (IECEx)
Entidad certificadora: DEKRA
Protección: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/DbExplosion ProtectionInglés -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Low cost RTD General purpose, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, RTD-thermometer
Código de producto: TR88-, TS111-, TSM187-, TSM487-, TST187-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST487-, TST602-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-
Región: Russia
Entidad certificadora: Rosstandart
Número de certificado: IT.C.32.004.A_66572MetrologyRuso -
Process RTD Heavy duty
Código de producto: TR63-, TR66-
Región: South Korea
Entidad certificadora: KRMarineInglés -
Process RTD General purpose, Process RTD Heavy duty
Código de producto: TM131-, TR63-, TR66-
Región: International
Entidad certificadora: DNVGLMarineInglés -
Process RTD Heavy duty
Código de producto: TR63-, TR66-
Región: International
Entidad certificadora: BVMarineInglés
Accesorios / Piezas de repuesto
-
-
Order code 71249291
Thermo-conductive paste FDA-conform 30g
-
Order code 71312729
Thermoconductive Paste HSC 340, 100g
-
-
-
Nr C Order code 71111513
Term.block DIN B (42mm) 3 term. 5 pc
-
Nr C Order code 71111514
Term.block DIN B (42mm) 4 term. 5 pc
-
Nr C Order code 71111515
Term.block DIN B (42mm) 6 term. 5 pc
-
-
-
Order code 71044061
Fixing kit cpl.TMT8x/7x (european)
2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector
-
-
-
Nr A Order code TPR100-
Insert TPR100
Mineral insulated cable (MgO). Replaceable insert acc.EN60751. max. measuring range: -200...600oC (depending on configuration).
-
Nr A Order code TPR300-
Insert TPR300
Replaceable insert (MgO) to use with TR6x line. max. measuring range: -200...600oC (depending on configuration).
-
Nr A Order code TS111-
Insert iTHERM TS111
Replaceable. Metric version according DIN43735.
-
-
-
Nr E Order code TA540-
Thermowell TA540
Product being phased out, limited availability. Flange connection or screw in. Thermometer connection female, welded version.
-
Nr E Order code TA541-
Thermowell TA541
Product being phased out, limited availability. Flange connection or screw in. Thermometer connection male, welded version.
-
-
-
Nr B Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Nr B Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Nr B Order code TID10-
Display for head transmitter TID10
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
-
-
-
Order code READWIN-
Readwin 2000 Operation + Read. software
-
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
Order code FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
-
-
Nr D Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
-
Nr B Order code TMT180-
iTEMP TMT180, Head Transmitter Pt100
Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Nr B Order code TMT181-
iTEMP TMT181, Head Transmitter PCP
Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Nr B Order code TMT182-
iTEMP TMT182, Head Transmitter HART
Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Nr B Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
-
-
Order code DIENST-
SERVICE
-
Order code XPRFID-
-
-
Sucesor
