Omnigrad M TR45

Imagen de producto: Omnigrad M TR45

Este producto ya no se encuentra disponible.

Consulte la nueva generación en la sección predecesor / sucesor o contacte con su entidad local de Endress+Hauser.

Características y especificaciones

Atrás

Details

  • Measuring principle

    Detector de Temperatura de Resistencia

  • Característica / Aplicación

    metric style

    modular temperature assembly

    hygienic design

    suitable for hazardous areas

    hygienic process connection

    with neck

    incl. thermowell / protection tube (metal)

  • Cabezal de terminal

    TA20A - aluminio- cubierta con tornillos

    TA20B - plástico- cubierta atornillada

    TA20D - aluminio - cubierta alta con bisagras

    TA20J - acero inoxidable - troquelado profundo con o sin pantalla

    TA20R - acero inoxidable - maquinado con cubierta atornillada

    TA20W - aluminio - cubierta con cierre a presión

  • termopozo / tubo de protección

    welded protection tube

  • Inserto / sonda

    mineral insulated (MI), flexible

  • Diámetro exterior del tubo de protección

    9,0 mm (0,35'')

  • Máx. longitud de inmersión bajo demanda

    hasta 4.000,00 mm (157,48'')

  • Protección de material tubo/termo pozo

    1.4435 (316L)

  • Recubrimiento opcional

    Tantalio

  • Conexión a proceso

    hygienic:

    conical sealing system G1/2" (metal)

    clamp connections acc. to ISO 2852 / DIN 32676

    clamp connections TRI-Clamp / Micro-Clamp

    screwed pipe joint acc. to DIN 11851

    screwed pipe joint acc. to DIN 11864-1

    Varivent

    SMS 1147/8

    G1" Liquiphant type M

    Ingold

    welded (cylindircal)

    welded (spherical)

  • Forma de la Punta

    recto

    reducido

    estrechado

  • Aspereza de la superficie Ra

    0,4 μm (15,7 μin.)

    0,8 μm (31,5 μin.)

  • Rango de temperatura de operación

    PT 100:

    -50 °C ...400 °C

    (-58 °F ... 752 °F)

  • Máx. presión de proceso (estática)

    at 20 °C: 50 bar (725 psi)

  • Precisión

    class A acc. to IEC 60751

    1/3 DIN class B acc. to IEC 60751

  • Tiempo de respuesta

    depending on configuration

  • Integración del transmisor de cabezal

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Aprobaciones Ex

    ATEX II

    NEPSI

    IECEx

  • Certificación

    Metrología Gost

    FDA

    EHEDG

    3A

    SIL (sólo transmisor)

Documentos / Manuales / Software

Accesorios / Piezas de repuesto

Nr
Order code
Specification
  • C
    • Order code 52028179

      Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

      Profile gasket cover. Usage: housing F15 stainless steel.

    • Order code 60017971

      Display LC for TA20J

    • Order code 71043745

      Housing filter plastic F15, 3 pieces

      Consists of: filter plug plastic, Pressure compensation filter, O-ring. Usage: housing F15. Non Ex.

    • Order code 71313382

      Connector 4p M20/M12 150mm

    • Order code 71163501

      Gasket ring D21/di10x2 Aramid+NBR

    • Order code 71044061

      Fixing kit cpl.TMT82/85/84 (european)

      2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector

    • Order code 60017887

      Adapter for Ingold connection

    • Order code 60018911

      O-ring set for ingold connection

      set includes 5 gaskets

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71424800

      G1/2 metal to metal weld in adapter

      for connection with G1/2" female thread. Material 316L/1.4435. 2x leakage bore.

    • Order code 71142762

      O-Ring 44,17x1,78 EPDM labs free black

  • A
    • Nr A Order code TPR100-

      Insert TPR100

      Mineral insulated cable (MgO). Replaceable insert acc.EN60751. max. measuring range: -200...600oC (depending on configuration).

  • E
    • Nr E Order code TT411-

      iTHERM TT411 Thermowell

      Thermowell with hygienic design. Metrical version for applications in the food/beverages and pharmaceutical industries.

  • D
    • Nr D Order code TA20A-

      Terminal Head TA20A

      Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

    • Nr D Order code TA20B-

      Terminal Head TA20B

      "Product being phased out, limited availability." Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black. Ambient temperature: max. +80 oC. Protection: IP65.

    • Nr D Order code TA20D-

      Terminal head TA20D

      Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66

    • Nr D Order code TA20R-

      Terminal Head TA20R

      Product being phased out, limited availability. Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: AISI316L/1.4404. max temperature 100oC, ATEX: +95oC. Protection class IP66/IP67.

    • Nr D Order code TA20W-

      Terminal head TA20W

      Product being phased out, limited availability. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66

    • Nr D Order code TA21E-

      Terminal Head TA21E

      Retainer for terminal block or head transmitter. Cover: srewable. Material: aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65.

  • B
    • Nr B Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Nr B Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  • D
    • Nr D Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30D-

      Terminal Head TA30D

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

  • B
    • Nr B Order code TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

  • Predecesor

  • Sucesor

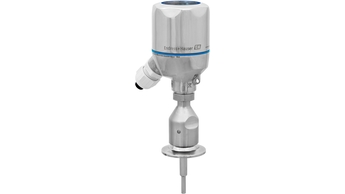

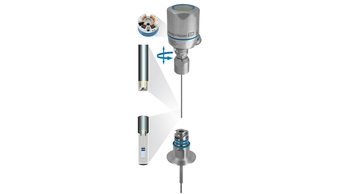

    • Imagen del producto Termómetro higiénico iTHERM TM411

      iTHERM TM411

      Termorresistencia modular innovadora, avanzada, modular para aplicaciones higiénicas y asépticas - Versión métrica con tecnología de sensores avanzada y mucha facilidad de manipulación
