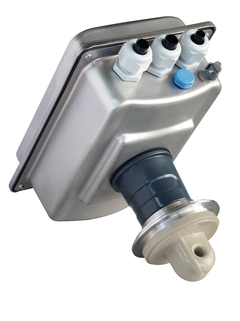

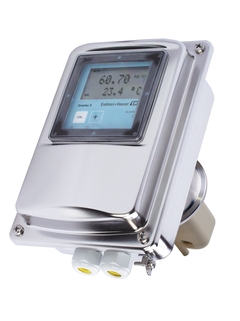

Equipo compacto de conductividad
Smartec CLD134
Sistema de medición de la conductividad toroidal para aplicaciones sanitarias y de esterilidad
Smartec CLD134 es un sistema de medición de la conductividad por inducción en las industrias alimentarias y de las ciencias de la vida. La combinación de un transmisor y un sensor no presenta interferencias y es particularmente fácil de utilizar. Satisface las máximas exigencias de higiene y esterilidad gracias a su cuerpo de PEEK de muy alta pureza, su diseño sin juntas y sin grietas y sus certificados de higiene. Por lo tanto, el Smartec CLD134 es el paquete ideal para garantizar la máxima seguridad y calidad de sus productos y procesos.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Rango de medición
100 µS/cm - 2000 mS/cm
constante de celda k : 6.31/cm -
Temperatura del proceso
Temperatura de proceso: -10°C - 125°C
(14°F - 257°F)
Esterilización: 150°C/5 bar (máx. 60 min.)
(302°F/72.5 psi) -
Presión de proceso
12 bar(174 psi)/20°C(68°F)
8 bar(116 psi)/125°C(257°F)
-
Selección rápida
Configuración individual
-
Ventajas
Diseño higiénico único, no existe riesgo de contaminación
Con todos los certificados de higiene necesarios para aplicaciones sanitarias y estériles
Certificado biocompatibilidad según USP clase VI
Cumple con EG 2023/2006 y 1935/2004
Adecuado para limpieza...
-
Ámbito de aplicación
El CLD134 resulta especialmente apto para las aplicaciones siguientes:
Separación de fases en mezclas de producto / agua y producto / producto en tuberías
Procesos de control de la CIP (limpieza in situ) en el canal de retorno
Control de la concentración...
Documentos / Manuales / Software
-
Smartec CLD134
Technical Information
Hygienic measuring system
Technical Information (TI) -
Smartec CLD134
Manual de instrucciones
Sistema de medición de conductividad
Manual de instrucciones (BA) -
Smartec CLD18
Sistema de medición de conductividad
Manual de instrucciones (BA) -
Operating Instructions Smartec CLD132/134
PROFIBUS PA/DP
Manual de instrucciones (BA) -
Brief Operating Instructions
Smartec S CLD134
Conductivity Measuring System
Short Instruction (KA)07/07Inglés -
Manufacturer Declaration
TSE/BSE free
Certificate (ZE) -
EHEDG certificate
EHEDG certificate of compliance
Special Documentation (SD) -
Leitfähigkeitsmessung in Industrieprozessen
Auswahl- und Engineeringhilfe für verschiedene Industrien und
AnwendungenCompetence Brochure (CP)12/19Alemán -
Conductivity measurement in industrial processes
Selection and engineering guide for different industries and
applicationsCompetence Brochure (CP)12/19Inglés -
Cleaning in Place (CIP)
Portfolio of Endress+Hauser solutions
Competence Brochure (CP)05/15Inglés -
Cleaning in Place (CIP)
Portfolio of Endress+Hauser solutions
Competence Brochure (CP)02/18Inglés -
GSD Single, GSD_EH_DP_AN_Smartec_0x153D_V01_50_DPLIB, 14.04.2014 (Analysi
s, Smartec S, 0x153D)
PROFIBUS DP,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.50.00Language neutral -
GSD Single, GSD_EH_PA_AN_SmartecS_0x151B_0x01_0x01, 11.11.2016 (Analysis,
Smartec S, 0x151B)
PROFIBUS PA,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.00.00Language neutral -
GSD Single, GSD_EH_DP_AN_SmartecS_0x151A_0x01_0x01, 11.11.2016 (Analysis,
Smartec S, 0x151A)
PROFIBUS DP,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.00.00Language neutral -
GSD Single, GSD_EH_PA_AN_SmartecS_0x153E_0x01_0x01, 11.11.2016 (Analysis,
Smartec S, 0x153E)
PROFIBUS PA,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.00.00Language neutral -
EDD Single, PDM_PA_AN_SmartecS_0x151B_0x01_0x01, 07.01.2019 (Analysis, Smartec, 0x151B)
PROFIBUS PA,
PDM Version: 6.0 SP5Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_PA_AN_SmartecS_0x153E_0x03_0x02, 07.01.2019 (Analysis, Smartec, 0x153E)
PROFIBUS PA,
PDM Version: 6.0 SP5Electronic Data Description (EDD)1.00.00Language neutral -
DTM Single, SmartecS_CLD132_V1_50, 21.10.2020 (Analysis, Smartec, 0x153E)
PROFIBUS PA,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, SmartecSDP_CLD132_V1_50, 28.10.2020 (Analysis, Smartec, 0x153D)
PROFIBUS DP,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, SmartecS_CLD132_V1_11, 06.11.2020 (Analysis, Smartec, 0x0097)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Language neutral -
Measurement of electrical conductivity
(.mp4 format, 70,7MB)
The conductivity of a liquid can be measured using the conductive or
toroidal measuring principles. This video shows what it is about and how
these measuring principles work.Animation01/14fr -
Measurement of electrical conductivity
(.mp4 format, 116 MB)
The conductivity of a liquid can be measured using the conductive or
toroidal measuring principles. This video shows what it is about and how
these measuring principles work.Animation01/14Polaco -
InduMax H, SmarTec, SmarTec S
Código de producto: CLD134-, CLD18-, CLS54-, CLS54D-
Número Declaración: HE_00726_01.17
Especificaciones del fabricante: 1935/2004Manufacturer DeclarationAlemán , Inglés -
InduMax H, SmarTec S
Código de producto: CLD134-, CLS54-, CLS54D-
Número Declaración: HE_01099_01.19Manufacturer DeclarationInglés -
SmarTec S
Código de producto: CLD134-
Número Declaración: HE_01130_01.19
Especificaciones del fabricante: 10/2011, 1935/2004Manufacturer DeclarationAlemán , Inglés -
InduMax H, SmarTec, SmarTec S
Código de producto: CLD134-, CLD18-, CLS54-, CLS54D-
Número Declaración: HE_00726_03.17
Especificaciones del fabricante: 1935/2004Manufacturer DeclarationAlemán , Inglés -
SmarTec S
Código de producto: CLD134-
Número Declaración: FDA_00162_01.17FDA DeclarationAlemán , Inglés -
SmarTec S
Código de producto: CLD134-
Número Declaración: EC_00371_02.16EU DeclarationAlemán , Inglés , fr -
SmarTec S, SmarTec, Sensor, Memosens, Liquisys Conductivity, Liquiline, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, ANALOG
Código de producto: CLM253-, CLS12-, CLS13-, CLS15-, CLS15D-, CLS16-, CLS16D-, CLS19-, CLS21-, CLS21D-, CLS30-, CLS50-, CLS50D-, CLS54-, CLS54D-, CLS82D-, CYM290-, CLM223F-, CLM223-, CLD18-, CLD134-, CLD132-, CCS55D-, CCS51D-, CCS51-, CCS50D-, CCS50-, CCS241-, CCS240-, CCS142D-, CCS141-, CCS140-, CCS120D-, CCS120-
Región: Russia (Declaration of Conformity)
Número de certificado: EAEC RU D-DE.AD07.B.01363/19MiscellaneousRuso -
ConduMax H, ConduMax W, InduMax H, InduMax P, Liquisys Conductivity, Memosens, SmarTec, SmarTec S
Código de producto: CLS82D-, CLS54D-, CLS54-, CLS50D-, CLS50-, CLS30-, CLS21D-, CLS21-, CLS19-, CLS16D-, CLS16-, CLS15D-, CLS15-, CLS13-, CLS12-, CLM253-, CLM223F-, CLM223-, CLD18-, CLD134-, CLD132-
Número de certificado: EAEC RU D-DE.AD.07.B.01362/19MiscellaneousRuso -
InduMax H, Memosens, SmarTec, SmarTec S, TopHit, UniFit H
Código de producto: CPS77D-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPA842-, CLS82D-, CLS54D-, CLS54-, CLD18-, CLD134-, CPS61E-
Región: USA
Entidad certificadora: 3-A Sanitary StandardsHygienic EquipmentInglés -
InduMax H, Sensor, SmarTec S
Código de producto: CLD134-, CLS54-, CLS54D-
Región: Europe
Entidad certificadora: TU MünchenHygienic EquipmentInglés -
InduMax H, SmarTec S
Código de producto: CLD134-, CLS54-, CLS54D-
Región: Canada (CRN)
Entidad certificadora: CRNPressure EquipmentInglés -
InduMax H, SmarTec S
Código de producto: CLD134-, CLS54-, CLS54D-
Región: Canada (CRN)
Entidad certificadora: CRNPressure EquipmentInglés -
ConduMax H, ConduMax W, InduMax H, InduMax P, Liquisys Conductivity, SmarTec S
Código de producto: CLS54-, CLS52-, CLS50-, CLS30-, CLS21-, CLS19-, CLS16-, CLS15-, CLS13-, CLS12-, CLM253-, CLM223-, CLD134-, CLD132-
Región: Russia
Entidad certificadora: Rosstandart
Número de certificado: DE.C.31.004.A_66843MetrologyRuso -
Liquisys Chlorine, Liquisys Conductivity, LIQUISYS M, Liquisys Oxygen, Liquisys Turbidity, SmarTec S
Código de producto: CUM253-, CUM223-, CPM253-, CPM223-, COM253F-, COM253-, COM223F-, COM223-, CLM253-, CLM223F-, CLM223-, CLD134-, CCM253-, CCM223-
Región: Canada, USA
Entidad certificadora: CSAOrdinary Location Product SafetyInglés
Accesorios / Piezas de repuesto
-
-
Order code
Please order a standard sensor CLS54 for non- compact version
-
Order code 71020487
Kit CLD134, version MV5, spare sensor
-
Order code 71020488
Kit CLD134, version AA5, spare sensor
-
Order code 71020489
Kit CLD134, version CS1, Spare sensor
-
Order code 71020490
Kit CLD134, version SMS, spare sensor
-
Order code 71020491
Kit CLD134, version VA4, spare part
-
Order code 71020492
Kit CLD134, version BC5, spare sensor
-
Order code 71020493
Kit CLD134 version AA5, sensor USP 87
-
Order code 71020495
Kit CLD134 version CS1, sensor USP 87
-
Order code 71020496
Kit CLD134 version VA4, sensor USP 87
-
Order code 71020497
Kit CLD134 version BC5, sensor USP 87
-
Order code 71025965
Kit CLD134 Main module 1 output
-
Order code 71025968
Kit CLD134 Main module 2 outputs
-
Order code 71025969
Kit CLD134 Main module 1 output + HART
-
Order code 71025970
Kit CLD134 Main module 2 outputs+HART
-
Order code 71025971
Kit CLD134 Main module Profibus PA
-
Order code 71025972
Kit CLD134 main module Profibus DP
-
Order code 71134734
Kit CLD134: Central mod. PB DP; H/W 2.1x
Content: 1x Central module Profibus DP Module name: LSCP-DP qualified from H/W 2.10
-
Order code 71134735
Kit CLD13x: Terminal module for PB DP
Content: 1x Terminal module Profibus DP Module name : LSKB qualified for central mod. from H/W 2.10
-
Order code 71161133
Kit: MKIC Conductiv. transmitter Non-Ex
-
Order code 51501585
Kit CLD132/4 Power supply 100/115/230VAC
-
Order code 51501586
Kit CLD132/4 Power supply 24 V AC/DC
-
Order code 51501574
Kit CLD132/4 lower casing seperate vers.
-
Order code 51501576
Kit CLD132/4 lower casing compact vers.
-
Order code 50062121
Round post installation for CYY101
-
Order code 51501577
Kit CLD132/4 housing cover complete
-
Order code 51501584
Kit CLD132/4 module box
-
Order code 51502280
Kit CLD132/4 module box for PA/DP
-
Order code 51501587
Kit CLD132/4 Terminal blocks 5+8+13 pol.
-
Order code 51502281
Kit CLD132/4 Terminal block set PA/DP
-
Order code 51501588
Kit CLD132/4 Flat ribbon cable 20 poles
-
Order code 51502282
Kit CLD132/4 M20 glands+Goretex filter
-
Order code 51502283
Kit CLD132/4 Contuit glands+Goretex
-
Order code 51501596
Kit CLD132/4 Sealings and small parts
-
Order code 51502382
Kit CLD132/4 Protection against contact
-
Order code 51501643
Upgrade"Extended Functions"for Smartec
-
Order code 50081902
Calibration solution CLY11-A, 74,0 uS/cm
500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO
-
Order code 50081903
Calibration solution CLY11-B,149,6 uS/cm
500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO.
-
Order code 50081904
Calibration solution CLY11-C,1,406mS/cm
500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO
-
Order code 50081905
Calibration solution CLY11-D,12,64 mS/cm
500 ml, reference temperature 25oC. Precision solution referred to SRM to NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO
-
Order code 50081906
Calibration solution CLY11-E,107,00mS/cm
500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO
-
-
Predecesor
