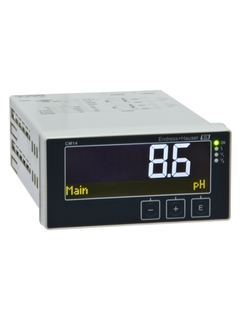

Transmisor de 1 canal
Liquiline CM14
Equipo compacto de instalación en panel para las industrias alimentaria, energética y de tratamiento de aguas y aguas residuales
Liquiline CM14 es un transmisor básico que proporciona todo lo que usted necesita para manejar un punto de medición estándar. Cabe en cualquier armario de fusibles común y es fácil de poner en marcha gracias a la tecnología digital Memosens. El concepto Memosens de conexión "plug and play" le permite instalar y configurar con rapidez sus sensores digitales para la medición de pH/redox, conductividad o concentración de oxígeno disuelto. Liquiline CM14 es compacto, fácil de manejar y económico.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Entrada
Transmisor de un canal
-
Salida
0/4-20mA
-
Protección contra ingreso
Frente IP65 , NEMA 4X, Cuerpo IP20
-
Selección rápida
Configuración individual
-
Ventajas
Ahorra espacio y dinero: buena relación rendimiento/precio y bajo impacto – perfecto para montaje en skids.
Fácil de manejar: “plug & play” con sensores Memosens precalibrados.
Medición fiable y segura: la tecnología Memosens ofrece transmisión de señales...
-
Ámbito de aplicación
El transmisor de instalación en panel Liquiline CM14 es apto para todo tipo de aplicaciones en zonas sin peligro de explosión, por ejemplo, en las industrias y aplicaciones auxiliares siguientes:
Alimentación y bebidas
Energéticas
Tratamiento de aguas y...
Documentos / Manuales / Software
-
Technical Information
Liquiline CM14
4-wire-controller based on digital Memosens technology for pH/ORP,
conductivity and oxygenTechnical Information (TI) -
CM14
Transmisor, conductividad
Manual de instrucciones (BA) -
CM14
Transmisor, contenido de oxígeno
Manual de instrucciones (BA) -
CM14
Transmisor, pH y redox
Manual de instrucciones (BA) -
Installation Instructions Kit CM14
Adapter frame for CM14 installation into existing cabinet cutouts
Installation Instructions (EA) -
Special documentation
Liquiline CM14 conductivity kit 2
For conductivity measurement in pure water
Special Documentation (SD) -
LABS-frei / PWIS-free
Informationsblatt LABS-frei Reinigungsverfahren /
Information leaflet PWIS-free cleaning prodedureSpecial Documentation (SD) -
Special Documentation
Liquiline CM14 pH kit 3
For pH measurement in wastewater
Special Documentation (SD) -
Special documentation
Liquiline CM14 pH kit 2
For pH measurement in process water
Special Documentation (SD) -
Special documentation
Liquiline CM14 conductivity kit 3
For conductivity measurement in wastewater
Special Documentation (SD) -
Liquiline CM14 DO kit 1
For oxygen measurement in wastewate
Special Documentation (SD) -
Special documentation
Liquiline CM14 pH kit 1
For pH measurement in water
Special Documentation (SD) -
perspektiven Lebensmittel 2013
Kundenmagazin: Clevere Lösungen für die Lebensmittel-Industrie
Customer Magazine (CM)07/13Alemán -
Pomiary jonoselektywne
System sond jonoselektywnych ISEmax. Kontrola procesów w komorze
biologicznejPublications (PU)12/13Polaco -
Pomiary fizykochemiczne
Więcej niż czujnik. Nowoczesne rozwiązania pomiarów
fizykochemicznychPublications (PU)12/13Polaco -
Wymiana aparatury kontrolno-pomiarowej _TW_02_2012
Wymiana aparatury kontrolno-pomiarowej w obiekcie SUW: koszt czy
inwestycja?Publications (PU)04/12Polaco -
Dobór przetworników- TW_06_2011
Właściwy dobór przetworników stosowanych do pomiarów
analitycznych w uzdatnianiu wody.Publications (PU)04/12Polaco -
Leitfähigkeitsmessung in Industrieprozessen
Auswahl- und Engineeringhilfe für verschiedene Industrien und
AnwendungenCompetence Brochure (CP)12/19Alemán -
Conductivity measurement in industrial processes
Selection and engineering guide for different industries and
applicationsCompetence Brochure (CP)12/19Inglés -
American version - Liquiline: A family you can rely on
High quality transmitters for future-proof plant design and safe
operationsCompetence Brochure (CP)09/13Inglés -
Liquiline: Eine vielseitige Familie
Messumformer, Analysatoren und Probenehmer für zukunftssicheres
Anlagendesign und sicheren BetriebCompetence Brochure (CP)08/15Alemán -
Liquiline: A family you can rely on
High quality transmitters for future-proof plant design and safe
operationsCompetence Brochure (CP)08/15Inglés -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
Competence Brochure (CP)08/15Japonés -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
Competence Brochure (CP)04/15Inglés -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.Competence Brochure (CP)04/11Inglés -
pH-Messung in Industrieprozessen
Auswahl- und Engineering-Hilfe für verschiedene Industriebranchen und
ApplikationenCompetence Brochure (CP)03/20Alemán -
pH measurement in industrial processes
Selection and engineering guide for different industries and
applicationsCompetence Brochure (CP)02/20Inglés -
American version - Liquiline: A family you can rely on
High quality transmitters for future-proof plant design and safe
operationsCompetence Brochure (CP)02/17Inglés -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidanceCompetence Brochure (CP)02/12Inglés -
Catálogo soluciones esenciales
Alta calidad a precios competitivos
Competence Brochure (CP)01/17Español -
Liquiline CM14
Klein, günstig, Memosens
Innovations (IN)10/11Alemán -
Liquiline CM14
Small, low-priced, Memosens
Innovations (IN)10/11Inglés -
E-direct Produktcatalogus 2018-2019
High quality, low price
Endress+Hauser Catalogues (EC)10/18Holandés -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser Catalogues (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)06/20Alemán -
DTM Single, Liquiline_CI_CM14_CDI_FW_2_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0023)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.2.0.0Language neutral -
DTM Single, Liquiline_DO_CM14_CDI_FW_2_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0022)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.2.0.0Language neutral -
DTM Single, Liquiline_pH_CM14_CDI_FW_2_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0021)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.2.0.0Language neutral -
DTM Single, Liquiline_CC_CM14_CDI_FW_2_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0024)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.2.0.0Language neutral -
DTM Single, Liquiline_pH_CM14_CDI_FW_1_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0021)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.0.0.9Language neutral -
DTM Single, Liquiline_CI_CM14_CDI_FW_1_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0023)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.0.0.9Language neutral -
DTM Single, Liquiline_DO_CM14_CDI_FW_1_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0022)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.0.0.9Language neutral -
DTM Single, Liquiline_CC_CM14_CDI_FW_1_00_zz, 18.11.2020 (Analysis, Liquiline, 0x0024)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.0.0.9Language neutral -
ComDTM Single, CDI_CommDTM, 02.12.2019
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00Comunicación DTM2.09.07Language neutral -
Liquiline M
Código de producto: CM14-
Número Declaración: EC_00462_02.16EU DeclarationInglés -
Product Family: Liquiline
Código de producto: CM14-
EU DeclarationAlemán , Inglés -
Liquiline M
Código de producto: CM14-
Número Declaración: EC_00462_01.16EU DeclarationInglés -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Código de producto: CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS16D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: EAEC D-DE.AD07.B.01363/19MiscellaneousRuso -
Liquiline, Liquiline M
Código de producto: CM14-, CM42-, CM442-, CM444-, CM448-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: TC BY_112 11.01. TP020 003 140MiscellaneousRuso -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
Código de producto: CPS491-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91D-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CPS16D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: EAEC RU D-DE.AD07.B.01362/19MiscellaneousRuso -
Viomax, Turbimax, TopHit, OxyMax W, OxyMax H, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquiline M, Liquiline, Isemax, InduMax P, InduMax H, ConduMax W, ConduMax H, Chloromax, Ceramax, CeraLiquid, CeraGel
Código de producto: CPS47D-, CPS471D-, CPS441D-, CPS42D-, CPS41E-, CPS41D-, CPS341D-, CPS31D-, CPS171D-, CPS16D-, CPS12E-, CPS12D-, CPS11E-, CPS11D-, CPS491D-, CPS71D-, CPS71E-, CPS72D-, CPS76D-, CPS77D-, CPS91D-, CPS91E-, CPS92D-, CPS96D-, CPS97D-, CUS50D-, CUS51D-, CUS52D-, CAS40D-, CCS120D-, CCS142D-, CCS50D-, CCS51D-, CLS15D-, CLS15E-, CLS16D-, CLS16E-, CLS21D-, CLS21E-, CLS50D-, CLS54D-, CLS82D-, CLS82E-, CM14-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, COS22D-, COS51D-, COS61D-, COS81D-, CPF81D-, CPF82D-
Región: Russia
Entidad certificadora: Rosstandart
Número de certificado: OC.C.31.004.A NO 54218/1MetrologyRuso
Accesorios / Piezas de repuesto
-
-
Nr 6 Order code 50078843
Terminal plug-in 3pol.for power supply
Ecograph/Memograph/S + Alphalog from unit No.410297XA RIA45, grey coloured connector
-
-
-
Nr 7 Order code 71037350
Terminal strip 4pole FMC1,5/4-ST-3,5
Memograph M for analog output (on digital I/O board) RIA45 for analog input non Ex (terminal x1,x2,x3,x4 + x5,x6,x7,x8)
-
-
-
Nr 9 Order code 71037408
-
-
-
Nr 8 Order code 71075062
Terminal strip 4pole space 3.81 non Ex
Terminal analog output 1 + status output (DI11,DI12,O15)
-
-
-
Nr 10 Order code 71081257
Threaded bolt tube fixing 105mm
-
-
-
Nr 1 Order code XPM0004-DA
Housing front + foil, incl. keyboard
-
-
-
Nr 5 Order code RK01-AG
Mounting set RIA45
-
-
-
Nr 3 Order code XPM0004-NA
Mainboard 24-230VDC/AC
-
-
-
Nr 4 Order code RIA45X-RA
Relay board + 2 limit relays
-
-
-
Order code 71223706
Kit: adapter frame 48x96mm auf 96x96mm
-
-
-
Nr 2 Order code XPM0004-
Spare Parts CM14 XPM0004
-
-
-
Order code
Housing only on request
-
