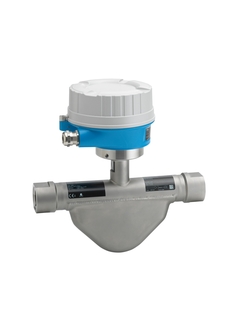

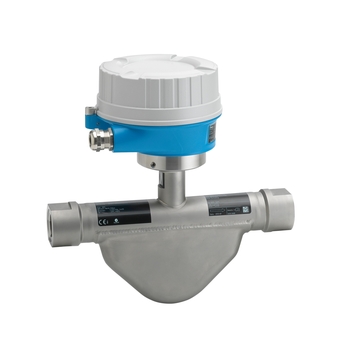

CNGmass D8CB
Caudalímetro Coriolis
Caudalímetro de recarga de combustible con fácil integración del sistema.
¡El mercado del gas natural continúa creciendo! El gas natural comprimido se ha considerado durante mucho tiempo como el combustible alternativo para vehículos. Se cree asimismo que el gas natural comprimido es el combustible más limpio para los motores de combustión. El nuevo CNGmass está diseñado especialmente para dispensadores. Con este caudalímetro Coriolis se puede medir el caudal con la máxima exactitud — independientemente de la presión y la temperatura.
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Máx. error medido
Flujo másico: ±0.2 % de lote
-
Rango de medición
0 a 150 kg/min (0 a 330 lb/min)
-
Rango de temperatura del medio
–50 a +125 °C (–58 a +257 °F)
-
Máx. presión de proceso
350 bar (5080 psi)
-
Materiales húmedos
Tubo de medición: 1.4539 (904L)
Conexión: 1.4404 (316/316L)
-
Selección rápida
Configuración individual
-
Ventajas
Funcionamiento seguro excelente – fiable en condiciones de proceso extremas
Menor cantidad de puntos de medida – medición multivariable (caudal, densidad, temperatura)
Ahorro de espacio – Sin necesidad de tramos rectos de entrada/salida
Transmisor de...
-
Ámbito de aplicación
El principio de medición funciona con independencia de las propiedades físicas del fluido tales como la viscosidad o la densidad
Mediciones precisas de gas natural comprimido (GNC) en aplicaciones de reabastecimiento decombustible a alta presión.
...
Documentos / Manuales / Software
-
CNGmass
Technical Information
Coriolis flowmeter
Technical Information (TI) -
CNGmass
Modbus RS485
Operating Instructions
Coriolis flowmeter
Manual de instrucciones (BA) -
CNGmass
Modbus RS485
Description of Device Parameters
Coriolis flowmeter
Device Parameter (GP) -
CNGmass
Manual de instrucciones abreviado
Caudalímetro Coriolis
Short Instruction (KA)09/15Inglés -
Replacing Small parts
Promag, Promass 100, 500, CNG-, LNG-, LPGmass, Promag 400 Index C,
Prosonic Flow E 100, Prosonic Flow E Heat, Prosonic Flow, t-mass
500-digitalInstallation Instructions (EA) -
Safety Instructions for Spare Parts
Installation Instructions
Flowmeter
Installation Instructions (EA) -
Replacing Spare Parts
Promag, Promass 100, CNG-, LNG-, LPGmass, Promag 400 Index C, Proline
300, 500, 500-digital, Prosonic Flow E 100, Prosonic Flow E He
at, Prosonic Flow, t-mass 300, 500-digitalInstallation Instructions (EA) -
CNGmass
INMETRO:
Ex ia IIC T6…T1
Ex tb IIIC Txx °C
Safety Instructions
Documentation for hazardous area
Ex Safety Instructions (XA) -
CNGmass
NEPSI:
Zone 1, Zone 21
Ex i version
Safety Instructions
Documentation for hazardous area
Ex Safety Instructions (XA) -
CNGmass
Cl.I Div.1, Zone 1 for IS
(Ex i Intrinsically safe version)
Safety Instructions
Documentation for hazardous area
Ex Safety Instructions (XA) -
CNGmass
ATEX:
II2G Ex ia IIC T6…T1
II2D Ex tb IIIC Txx °C
IECEx:
Zone 1 Ex ia IIC T6…T1
Zone 21 Ex tb IIIC Txx °C
Safety Instructions
Documentation for hazardous area
Ex Safety Instructions (XA) -
CNGmass D8CB
Custody transfer
Special Documentation
Coriolis flowmeter
Special Documentation (SD) -
Change of Directives
Special Documentation
Change of Directives
Special Documentation (SD) -
CNGmass
Register information Modbus RS485
Special Documentation
Coriolis mass flow measuring system
Special Documentation (SD) -
Pomiary przeplywu cieczy, pary i gazow. Oferta produktow i uslug
Pomiary przeplywu cieczy, pary i gazow. Oferta produktow i uslug
Fields of Activities (FA)11/13Polaco -
Competence brochure – Refueling and filling made easy
Accurate flow measurement for natural gas (CNG), liquefied gas (LPG,
LNG) and AdBlueCompetence Brochure (CP)11/14Inglés -
Kompetenzbroschüre – Betanken und Befüllen mit Treibstoffen leicht
gemacht
Präzise Durchflussmessung für Erdgas (CNG), Flüssiggas (LPG, LNG)
sowie AdBlueCompetence Brochure (CP)11/14Alemán -
CNGmass – Coriolis flow measurement
The compact device for natural gas measurement in dispensers
Innovations (IN)02/14Inglés -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-
Número Declaración: EC_00259_02.16EU DeclarationAlemán , Inglés , fr -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-
Número Declaración: EC_00258_01.16EU DeclarationAlemán , Inglés , fr -
CNGmass, LPGmass
Código de producto: 8DF-, 8FF-, D8CB-, OD8CB-
Región: Russia (Declaration of Conformity), Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: RU D-CH.MO10.B.06660MiscellaneousRuso -
Promass X, Promass S, Promass Q, Promass P, Promass O, Promass K, Promass I, Promass H, Promass G, Promass F, Promass E, Promass A, Promass 84, Promass 83, Promass 80, Promass 40, LPGmass, CNGmass
Código de producto: 8O1B-, 8K1B-, 8I5B-, 8I3B-, 8I1B-, 8H5B-, 8H3B-, 8H1B-, 8G1B-, 8FF-, 8FE-, 8F5B-, 8F3B-, 8F1B-, 8O3B-, 8O5B-, 8P1B-, 8P3B-, 8P5B-, 8Q3B-, 8Q5B-, 8S1B-, 8S1C-, 8S3B-, 8S5B-, 8X3B-, 8X5B-, D8CB-, 40E-, 80A-, 80E-, 80F-, 80H-, 80I-, 80P-, 80S-, 83A-, 83E-, 83F-, 83H-, 83I-, 83P-, 83S-, 83X-, 84A-, 84F-, 84X-, 8A1B-, 8A3B-, 8A3C-, 8A5B-, 8A5C-, 8DF-, 8E1B-, 8E3B-, 8E5B-
Región: Russia (TR CU)
Entidad certificadora: EAC
Número de certificado: EAEC N RU D-CH.AD07.B.02228/20MiscellaneousRuso -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-, OD8CB-, OD8EB-, OD8LB-
Región: USA, Canada
Entidad certificadora: CSA
Categoría: I/1/A,B,C,D, II,III/1/E,F,G, I/zone 1
Protección: AEx/Ex ia IIC T6...T1 Gb, Ex ia IIC T6...T1 GbExplosion ProtectionInglés -
CNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-, OD8CB-, OD8EB-, OD8LB-
Región: China
Entidad certificadora: NEPSI
Categoría: zone 1, zone 21, zone 0,1Explosion ProtectionInglés -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-, OD8CB-, OD8EB-, OD8LB-
Región: Europe, International (IECEx)
Entidad certificadora: DEKRA
Protección: Ex nAExplosion ProtectionInglés -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-, OD8CB-, OD8EB-, OD8LB-
Región: Europe (ATEX)
Entidad certificadora: DEKRA
Categoría: II 2 D, II 2 G, II (1) G
Protección: [Ex ia Ga], Ex ia, Ex tbExplosion ProtectionInglés -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-, OD8CB-, OD8EB-, OD8LB-
Región: USA, Canada
Entidad certificadora: CSA
Categoría: I/1/A,B,C,D, II,III/1/E,F,G, I/zone 1
Protección: AEx/Ex ia IIC, Ex ia IICExplosion ProtectionInglés -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-, OD8CB-, OD8EB-, OD8LB-
Región: Brazil
Entidad certificadora: TÜV
Protección: Ex ia, Ex tbExplosion ProtectionPortugués -
CNGmass, LNGmass, LPGmass
Código de producto: D8CB-, D8EB-, D8LB-, OD8CB-, OD8EB-, OD8LB-
Región: International (IECEx), Europe
Entidad certificadora: DEKRA
Protección: Ex ia, Ex tbExplosion ProtectionInglés -
CNGmass
Código de producto: 8DF-, 8FF-, D8CB-
Región: USA
Entidad certificadora: NTEP
Número de certificado: NTEP 07-006A3MetrologyInglés
Accesorios / Piezas de repuesto
-
-
Nr 47 Order code 71185785
-
-
-
Nr 45 Order code 71185787
Kit connection terminal for Ex-i barrier
Usage: Promass 100, CNGmass, LPGmass, LNGmass. Consists of: 2x Connection terminal 4-Pol.
-
-
-
Nr 30 Order code XPD0019-
-
-
-
Nr 21 Order code 71185789
Kit cover, compact, Alu
Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Consists of: Cover Aluminium, coated. O-Ring 113,90 x 3,53 NBR for cover.
-
-
-
Nr 70 Order code 71185795
Kit housing gaskets, compact, Alu
Usage: Promass 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Consists of: O-Ring 113,90 x 3,53 NBR for cover. Gasket EPDM for housing/sensor.
-
-
-
Nr 15 Order code 50098036
Kit 10 cable glands M20x1.5 Ex
-
Nr 15 Order code 50098041
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)
-
Nr 15 Order code 50098042
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
-
-
-
Nr 12 Order code 71276494
Kit securing clamp, screw
Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Sensor housing: Promag 400(C), (C) = generation index C, Promag/Promass 500, Promag/Promass/Prosonic Flow 500 digital. Consists of: cover clamp, screw M4x16.
-
Nr 12 Order code 71276495
Kit screw sealing, transm./sensor, alu
Usage: Transmitter housing: CNGmass, LPGmass, LNGmass, Prosonic Flow E Heat, Sensor housing: Promag 400(C), (C) = generation index C. Consists of: cover clamp, screw sealing M4x16.
-
-
-
