Proline t-mass I 300
Caudalímetro másico por dispersión térmica

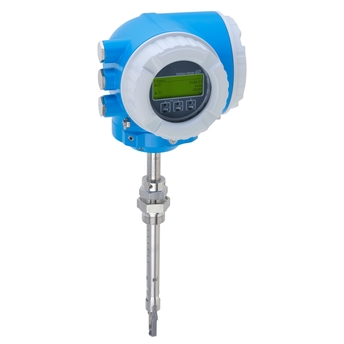

Prolinet-massI 300: Versión de inserción para tuberías/conductos de hasta DN 1500 (60") ©Endress+Hauser

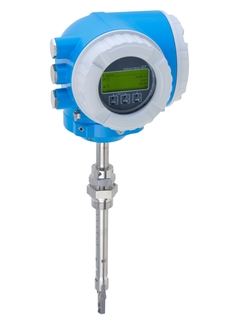

Proline t-mass I 300: Versión de inserción para tuberías/conductos hasta DN 1500 (60")

Descubra el sensor t-mass F e I vía código QR 3D ©Endress+Hauser

Descubra t-mass F e I vía un código QR 3D

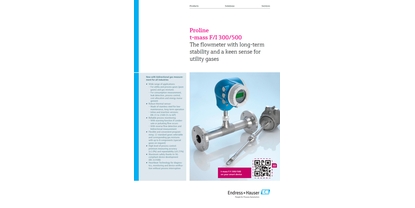

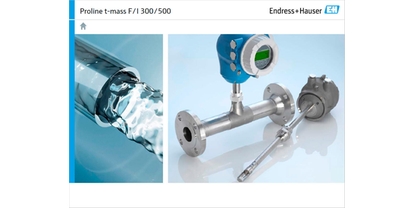

Proline t-mass F/I 300/500 – El caudalímetro másico térmico con estabilidad a largo plazo y un agudo sentido para los gases de servicio

El principio de medición de caudal térmico

  • Prolinet-massI 300: Versión de inserción para tuberías/conductos de hasta DN 1500 (60")
  • Descubra el sensor t-mass F e I vía código QR 3D

Caudalímetro de inserción con estabilidad a largo plazo y un transmisor compacto y accesible fácilmente

El diseño del sensor patentado de t-mass I proporciona una estabilidad de medición sin precedentes en la medición de caudal másico por inserción térmica. Compensa en tiempo real los cambios en las condiciones del proceso: temperatura, presión, dirección del caudal y tipo de gas. Su transmisor compacto ofrece una gran flexibilidad en lo que se refiere al funcionamiento y la integración del sistema: acceso desde un lateral, indicador remoto y opciones de conectividad mejoradas. La Heartbeat Technology garantiza la fiabilidad de medición y la verificación en cumplimiento.

Gama Extended
  • F
  • L
  • E
  • X

  • Simple products

  • Easy to select, install and operate

Excelencia técnica

Simplicidad

  • Productos estándar

  • Seguros, resistentes y con poco mantenimiento

Excelencia técnica

Simplicidad

  • Productos de alta gama

  • Altamente funcionales y prácticos

Excelencia técnica

Simplicidad

  • Productos especializados

  • Diseñados para aplicaciones exigentes

Excelencia técnica

Simplicidad

Variable

Gamas FLEX Excelencia técnica Simplicidad
  • F
  • L
  • E
  • X

Gama Fundamental

Satisfaga sus necesidades básicas de medición

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Lean

Maneje los principales procesos fácilmente

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Extended

Optimice sus procesos con tecnologías innovadoras

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Xpert

Domine las aplicaciones más exigentes

Excelencia técnica
Simplicidad

Variable

  • Resumen de especificaciones

    • Error de medición máx.

      Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

    • Rango de medición

      20 to 733501 kg/h (44 to 1669340 lb/h)

    • Rango de temperatura del medio

      -40 °C to +180°C (-40 °F to +356°F)

    • Máx. presión de proceso

      -0.5 to 20 bar_g (-7.25 to 290 psi_g)

    • Materiales húmedos

      Materials for insertion tube
      Stainless steel, 1.4404 (316/316L)
      Process connections, process coupling
      Stainless steel, 1.4404 (316/316L)
      Sensing element
      Unidirectional
      Stainless steel, 1.4404 (316/316L)
      Alloy C22, 2.4602 (UNS N06022);
      Bidirectional
      Stainless steel, 1.4404 (316/316L)
      Reverse flow detection
      Stainless steel, 1.4404 (316/316L)
      Clamping rings
      PEEK
      PVDF
      1.4404 (316/316L)
      Flat ring seal
      EPDM
      FKM

Loading alternative products

Selección rápida

Elija entre nuestras opciones recomendadas
Precio de venta
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

6I3B
Mostrar detalles Ocultar detalles
Mostrar detalles
Volver a la Selección rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
Cargando precio
Precios no disponibles temporalmente
from CHF 803.-
  • Complementos opcionales
Utilice el configurador individual para continuar.
o

Configuración individual

Continúe seleccionando entre todas las opciones posibles

  • Ventajas

    • Programación flexible y cómoda basada en 21 gases estándar o mezclas de gases libremente definibles

    • Alto nivel de control del proceso: precisión y repetibilidad de medición excelente

    • Monitorización fiable: detección de perturbaciones del proceso y caudal...

  • Ámbito de aplicación

    • El principio de medición se caracteriza por un rango de flujo altamente operable y medición directa del flujo de masa

    • Medición de gases de proceso y servicio y mezclas de gases en tuberías circulares o conductos rectangulares

    Propiedades del instrumento

    • ...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Térmico

  • Título del producto

    Insertion flowmeter with long-term stability and a compact, easily accessible transmitter.
    Flexible, convenient programming based on 21 standard gases or freely definable gas mixtures thereof.
    Measurement of utility and process gases as well as gas mixtures in circular piping or rectangular ducts.

  • Características del sensor

    High level of process control – premium measurement accuracy and repeatability. Reliable monitoring – detection of process disturbances and reverse flow. Flexible installation – suitable for large dimensional range and circular pipes or rectangular ducts.
    Insertion version for DN 80 to 1500 (3 to 60"). Bidirectional measurement; high measuring performance. Patented drift-free sensor with SIL 2.

  • Características del transmisor

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

  • Rango de diámetro nominal

    DN 80 to 1500 (3 to 60")

  • Materiales húmedos

    Materials for insertion tube
    Stainless steel, 1.4404 (316/316L)
    Process connections, process coupling
    Stainless steel, 1.4404 (316/316L)
    Sensing element
    Unidirectional
    Stainless steel, 1.4404 (316/316L)
    Alloy C22, 2.4602 (UNS N06022);
    Bidirectional
    Stainless steel, 1.4404 (316/316L)
    Reverse flow detection
    Stainless steel, 1.4404 (316/316L)
    Clamping rings
    PEEK
    PVDF
    1.4404 (316/316L)
    Flat ring seal
    EPDM
    FKM

  • Variables medidas

    Massflow, temperature, standard volume flow, volume flow, Free air delivery, velocity, heat flow, energy flow, density

  • Error de medición máx.

    Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

  • Rango de medición

    20 to 733501 kg/h (44 to 1669340 lb/h)

  • Máx. presión de proceso

    -0.5 to 20 bar_g (-7.25 to 290 psi_g)

  • Rango de temperatura del medio

    -40 °C to +180°C (-40 °F to +356°F)

  • Rango de temperatura ambiente

    -40 to 60°C (-40 to 140°F)
    Optional:

    Transmitter: -50 to 60°C (-50 to 140°F),
    Sensor: -60 to 60°C (-60 to 140°F)

  • Material de la cubierta del transmisor

    Aluminium, AlSi10Mg, coated
    Polycarbonate

  • Grado de protección

    IP66/67, Type 4X enclosure

  • Pantalla/Operación

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • Salidas

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Relay output

  • Entradas

    Status input
    4-20 mA input

  • Comunicación digital

    HART, Modbus RS485

  • Suministro de energía

    DC 24V
    AC 100 to 240V

  • Aprobaciones para áreas peligrosas

    ATEX, cCSAus, IECEx, NEPSI, JPN

  • Seguridad del producto

    CE, C-tick

  • Seguridad funcional

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Aprobaciones y certificados metrológicos

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

  • Certificados y aprobaciones de presión

    CRN

  • Certificados del material

    3.1 material
    NACE MR0175/MR0103
