Proline t-mass F 500
Caudalímetro másico por dispersión térmica

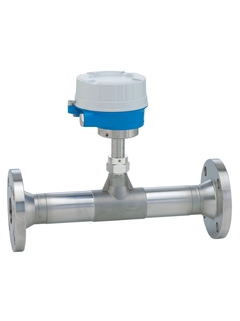

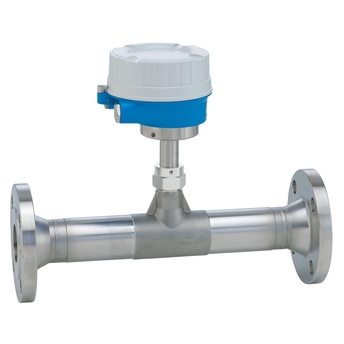

Prolinet-massF 500: versión en línea con conexión bridada ©Endress+Hauser

Proline t-mass F 500: versión en línea con conexión bridada

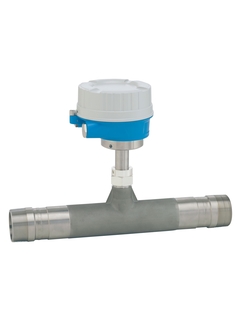

Prolinet-massF 500: versión en línea con roscas ©Endress+Hauser

Proline t-mass F 500: versión en línea con roscas

Descubrat-massF e I vía un código QR 3D ©Endress+Hauser

Descubra t-mass F e I vía un código QR 3D

Proline t-mass F/I 300/500: el caudalímetro másico por dispersión térmica con estabilidad a largo plazo y una gran sensibilidad para los gases de servicio

El principio de medición de caudal térmico

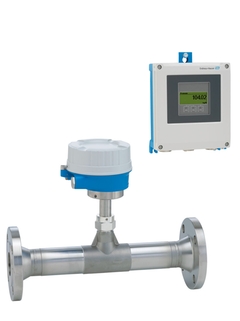

Caudalímetro en línea con estabilidad a largo plazo como versión remota de hasta 4 E/S

El diseño del sensor patentado de t-mass F proporciona una estabilidad de medición sin precedentes en la medición de caudal másico en línea por dispersión térmica. Compensa en tiempo real los cambios en las condiciones del proceso: temperatura, presión, dirección del caudal y tipo de gas. El transmisor remoto innovador t-mass F 500 maximiza la flexibilidad de la instalación y la seguridad de operación en entornos exigentes. La Heartbeat Technology garantiza la fiabilidad de medición y la verificación en cumplimiento.

Producto no disponible en este mercado

Selección rápida

Elija entre nuestras opciones recomendadas
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

o

Configuración individual

Continúe seleccionando entre todas las opciones posibles
  • Ventajas

    • Programación flexible y cómoda basada en 21 gases estándar o mezclas de gases libremente definibles

    • Alto nivel de control del proceso: precisión y repetibilidad de medición excelente

    • Monitorización fiable: detección de perturbaciones del proceso y...

  • Ámbito de aplicación

    • El principio de medición se caracteriza por una rangeabilidad de caudal operable y una medición de caudal másico directa

    • Medición de gases de proceso y fluidos de servicio, así como de mezclas de gases en tuberías de tamaño pequeño

    Propiedades del...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Térmico

  • Encabezado del producto

    Inline flowmeter with drift-free sensor as remote version with up to 4 I/Os. Flexible, convenient programming based on 21 standard gases or freely definable gas mixtures thereof. Measurement of utility and process gases as well as gas mixtures in small line sizes.

  • Características del sensor

    High level of process control – premium measurement accuracy and repeatability. Reliable monitoring – detection of process disturbances and reverse flow. Easy maintenance – removable sensor. Inline version with DN 15 to 100 (½ to 4"). Bidirectional measurement; high measuring performance.

  • Características del transmisor

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access.

  • Rango de diámetro nominal

    DN 15 to DN 100 (1/2" to 4")

  • Materiales húmedos

    Measuring tubes
    • DN 15 to 50 (½ to 2"): stainless cast steel, CF3M/1.4408
    • DN 65 to 100 (2½ to 4"): stainless steel, 1.4404 (316/316L)
    Process connections
    Flange connections
    Stainless steel, 1.4404 (F316/F316L)
    Threaded connections
    Stainless steel, 1.4404 (316/316L)
    Sensing element
    Unidirectional
    • Stainless steel, 1.4404 (316/316L)
    • Alloy C22, 2.4602 (UNS N06022);
    Bidirectional
    Stainless steel, 1.4404 (316/316L)
    Reverse flow detection
    Stainless steel, 1.4404 (316/316L)

  • Variables medidas

    Massflow, temperature, standard volume flow, volume flow, Free air delivery, velocity, heat flow, energy flow, density

  • Máx. error medido

    Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

  • Rango de medición

    0.5 to 3750 kg/h (1.1 to 8250 lb/h)

  • Máx. presión de proceso

    PN40 / Cl. 300 / 20K

  • Rango de temperatura del medio

    -40 °C to +180°C (-40 °F to +356 °F)

  • Rango de temperatura ambiente

    -40 to 60°C (-40 to 140°F)
    Optional:
    Transmitter: -50 to 60°C (-50 to 140°F),
    Sensor: -60 to 60°C (-60 to 140°F)

  • Material de la cubierta del transmisor

    Aluminium, AlSi10Mg, coated
    Polycarbonate

  • Grado de protección

    IP66/67, Type 4X enclosure Sensor: IP68, Type 6P (optional)

  • Pantalla/Operación

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible

  • Salidas

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Relay output

  • Entradas

    Status input
    4-20 mA input

  • Comunicación digital

    HART, Modbus RS485

  • Suministro de energía

    DC 24V
    AC 100 to 240V

  • Aprobaciones para áreas peligrosas

    ATEX, cCSAus, IECEx, NEPSI, JPN

  • Seguridad del producto

    CE, C-tick

  • Seguridad Funcional

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • Aprobaciones y certificados metrológicos

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

  • Certificados y aprobaciones de presión

    PED, CRN

  • Certificados del material

    3.1 material
    NACE MR0175/MR0103
