Emisor de barrera de microondas

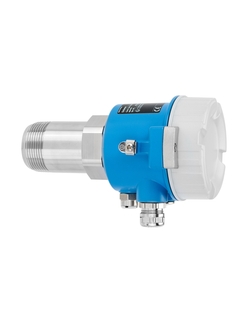

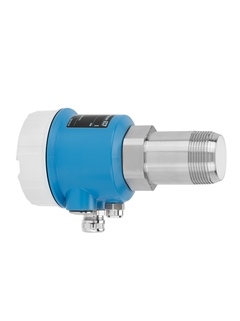

Soliwave FQR57

Soliwave FQR57 ©Endress+Hauser
Soliwave FQR57 ©Endress+Hauser
  • Soliwave FQR57
  • Soliwave FQR57

Transmisor para la detección de nivel sin contacto y la monitorización del caudal de sólidos granulados

El emisor de barrera de microondas Soliwave utiliza un procedimiento no invasivo para la detección de nivel y el caudal de sólidos granulados (paso / no paso y tendencia).El equipo también es apto para detectar y contar objetos, detectar incrustaciones así como monitorizar procesos de llenado y puntos de transferencia de material. Puede instalarse en containers, conductos, tolvas, estaciones de llenado, ejes, filtros o tuberías. Es posible medir desde el exterior de un depósito de paredes no metálicas.

  • Simple products

  • Easy to select, install and operate

Excelencia técnica

Simplicidad

  • Productos estándar

  • Seguros, resistentes y con poco mantenimiento

Excelencia técnica

Simplicidad

  • Productos de alta gama

  • Altamente funcionales y prácticos

Excelencia técnica

Simplicidad

  • Productos especializados

  • Diseñados para aplicaciones exigentes

Excelencia técnica

Simplicidad

Variable

Gamas FLEX Excelencia técnica Simplicidad
  • F
  • L
  • E
  • X

Gama Fundamental

Satisfaga sus necesidades básicas de medición

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Lean

Maneje los principales procesos fácilmente

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Extended

Optimice sus procesos con tecnologías innovadoras

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Xpert

Domine las aplicaciones más exigentes

Excelencia técnica
Simplicidad

Variable

  • Resumen de especificaciones

    • Temperatura del proceso

      Non-contact installation: any

      Within installation:
      -40 °C...+70 °C
      (-40 °F...+158 °F)

      With HT-Adapter:
      up to +450 °C (+842 °F)

    • Presión de proceso absoluta / límite de sobrepresión máx.

      Non-contact installation: any

      Within installation:
      0.5 bar...6.8 bar
      (7.2 psi ... 99 psi) abs.

      With HD-Adapter:
      up to +21 bar (+305 psi) abs.

    • Densidad min. del medio

      Solid weight: > 10 g/l

Selección rápida

Elija entre nuestras opciones recomendadas
Precio de venta
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FQR57
Mostrar detalles Ocultar detalles
Mostrar detalles
Volver a la Selección rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
Cargando precio
Precios no disponibles temporalmente
from CHF 803.-
  • Complementos opcionales
Utilice el configurador individual para continuar.
o

Configuración individual

Continúe seleccionando entre todas las opciones posibles

  • Ventajas

    • Montaje sencillo con rosca R 1½, 1½ NPT o G 1½ (con tuerca de seguridad)

    • Construcción mecánica robusta que asegura un ahorro a lo largo de todo el ciclo de vida del producto: no se producen desgastes ni roturas, diafragma cerámico del sensor (opcional)...

  • Ámbito de aplicación

    Detección de límites (mín./máx.) sin contacto (sin desgaste ni mantenimiento) y monitorización de caudal (paso / no paso, tendencia) para sólidos granulados.

    • Detección, recuento y posicionamiento de objetos

    • Detección y análisis de incrustaciones y...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Barrera microondas

  • Característica / Aplicación

    Transmitter

    Non-contact point level detection and flow monitoring

    Detecting, counting and positioning of objects

    Monitoring of material transfer points

    Detection and analysis of deposits and contamination


    Non-contact installation:

    Waves emitted from outside


    Within installation:

    Waves emitted within installation (contact)

  • Especialidades

    With optional integrated bulk flow monitoring

    Parallel mode with up to 5 channels

    Detection range limit: max. 100 m

    Detection range flow: max. 10 m, depending on bulk solids

  • Suministro / Comunicación

    Via process transmitter with control unit Nivotester FTR525

  • Temperatura ambiente

    -40 °C...+70 °C

    (-40 °F...+158 °F)

  • Temperatura del proceso

    Non-contact installation: any


    Within installation:

    -40 °C...+70 °C
    (-40 °F...+158 °F)


    With HT-Adapter:

    up to +450 °C (+842 °F)

  • Presión de proceso absoluta / límite de sobrepresión máx.

    Non-contact installation: any


    Within installation:

    0.5 bar...6.8 bar

    (7.2 psi ... 99 psi) abs.


    With HD-Adapter:

    up to +21 bar (+305 psi) abs.

  • Densidad min. del medio

    Solid weight: > 10 g/l

  • Principales partes húmedas

    Non-contact installation:

    No wetted parts


    Within installation:

    316Ti, PTFE or Ceramic

  • Conexión a proceso

    Threads:

    1-1/2" R, 1-1/2" G, 1-1/2" NPT

  • Comunicación

    Via process transmitter with control unit Nivotester FTR525

  • Certificados / Aprobaciones

    ATEX, IEC Ex

  • Aprobaciones de diseño

    EN10204-3.1

  • Opciones

    Sight glass

    High temperature adapter

    High pressure adapter

    Installation bracket

    FAR50, FAR51, FAR52, FAR53, FAR54, FAR55

  • Componentes

    Transceiver: FDR57

    Process transmitter: FTR525

  • Límites de la aplicación

    Solid weight: < 10 g/l

Documentos / Manuales / Software

Accesorios / Piezas de repuesto

Nr
Order code
Specification
    • Order code 71517822

      Plug microwave permeable SAL/SPP

      Material: PE-UHMW. Usage: Adapter SAL/SPP, FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71517824

      Plug microwave permeable SALS/SPPS

      Material: PE-UHMW. Usage: Adapter SALS/SPPS, FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71454446

      Weather protect. cover 316L, Mw. barr.

      Weather protection cover 316L for Microwave barrier. Adjustable installation situation. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381853

      Plug connector M12 4-pole,conct.cable 2m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381870

      Plug connector M12 4-pole,conct.cable 5m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381872

      Plug connector M12 4-pole

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381877

      Harting HAN8D plug conct.,conct.cable 2m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381879

      Harting HAN8D plug conct.,conct.cable 5m

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71381882

      Harting HAN8D plug connector

      Usage: FDR56/57, FQR56/57, FTR20.

    • Order code 71006345

      Flange DN40 PN6, Rp1-1/2, Alu

      Hole circle: 100mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006348

      Flange DN40 PN40, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108383

      Flange DN40 PN40, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381884

      Flange DN40 PN40, G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381885

      Flange DN40 PN40, G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71006350

      Flange DN50 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108388

      Flange DN50 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381887

      Flange DN50 PN16, G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381888

      Flange DN50 PN16, G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71006352

      Flange DN100 PN16, Rp1-1/2, 316Ti

      EN1092-1, A. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108390

      Flange DN100 PN16, Rp1-1/2, 316Ti, 3.1

      EN1092-1,A. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381890

      Flange DN100 PN16, G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381891

      Flange DN100 PN16, G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71006346

      Flange 1-1/2" 150lbs, NPT1-1/2, Alu

      Hole circle: 98.6mm. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006349

      Flange 1-1/2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108387

      Flange 1-1/2" Cl.150,NPT1-1/2,316Ti,3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006351

      Flange NPS 2" Cl.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108389

      Flange 2" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71006353

      Flange NPS 4" CL.150, NPT1-1/2, 316Ti

      ASME B16.5. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71108391

      Flange 4" Cl.150, NPT1-1/2,316Ti, 3.1

      ASME B16.5. Inspection cert. EN10204-3.1 material (316Ti wetted parts). Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026443

      Welded fitting DN50, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026446

      Welded fitting DN50, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026444

      Welded fitting DN80, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026447

      Welded fitting DN80, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026445

      Welded fitting DN100, 200oC

      Screw assembling. Material: 316Ti, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026448

      Welded fitting DN100, 10bar, 200oC

      Screw assembling. Material: 316Ti/321, silicone. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026449

      Flanged fitting DIN/EN DN50, 25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026450

      Flanged fitting DIN/EN DN80, 25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71026451

      Flanged fitting DIN/EN DN100,25bar,200oC

      Screw assembling on counter flange. Material: 316Ti, PTFE, C4400. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71381894

      HP adapter G1-1/2/G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381898

      HP adapter G1-1/2/G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381899

      HP adapter NPT1-1/2/G1-1/2, 316Ti

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71381904

      HP adapter NPT1-1/2/G1-1/2, 316Ti, 3.1

      Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71113441

      HT-adapter R1-1/2 + Rp1-1/2, 316Ti

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113449

      HT-adapter NPT1-1/2, 316Ti

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71478114

      HT-adapter R1-1/2 + Rp1-1/2, 316Ti, 3.1

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71478115

      HT-adapter NPT1-1/2, 316Ti, 3.1

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113450

      Extension 225mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113451

      Extension 325mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113452

      Extension 525mm, HT-adapter R1-1/2 +

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113453

      Extension 225mm, HT-Adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113454

      Extension 325mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71113455

      Extension 525mm, HT-adapter NPT1-1/2

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209101

      Sightglass disc DN50, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209114

      Sightglass disc DN50, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209118

      Sightglass disc DN50, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209100

      Sightglass disc DN80, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209111

      Sightglass disc DN80, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209116

      Sightglass disc DN80, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209121

      Sightglass disc DN80, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209097

      Sightglass disc DN100, 25bar, 200oC

      Installation on flange fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209107

      Sightglass disc DN100, 10bar, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209115

      Sightglass disc DN100, 200oC

      Installation on weld-in fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71209119

      Sightglass disc DN100, 6bar, 200oC

      Installation on screw-type fitting. Material: borosilicate glass. Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017501

      Mounting bracket FQR5x/FDR5x, Aluminium

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 52017502

      Mounting bracket FQR5x/FDR5x, Plastics

      Usage: FDR50, FDR56/FDR57, FQR50, FQR56/FQR57, FTR20.

    • Order code 71516947

      Weld-in adapter with mounting arm SPP

      Type SPP with microwave permeable PE-UHMW plug (extended). Plastic mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71516949

      Weld-in adapter with mounting arm SAL

      Type SAL with microwave permeable PE-UHMW plug (extended). Aluminium mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71516952

      Weld-in adapter with mounting arm SALS

      Type SALS with microwave permeable PE-UHMW plug. Aluminium mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

    • Order code 71516954

      Weld-in adapter with mounting arm SPPS

      Type SPPS with microwave permeable PE-UHMW plug. Plastic mounting bracket. Usage: FDR56/FDR57, FQR56/FQR57, FTR20.

Casos de éxito

Comparar productos
Utilizamos cookies para almacenar en su equipo información que nos ayuda a personalizar y mejorar sus interacciones con nosotros. Puede encontrar más información sobre las cookies en la política de privacidad.
