Emisor de barrera de microondas
Soliwave FQR50

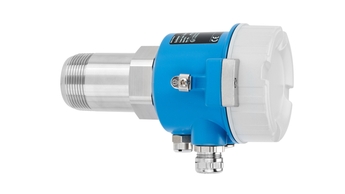

Soliwave FQR50 con cabezal de aluminio ©Endress+Hauser

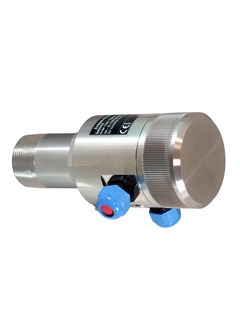

Soliwave FQR50 con cabezal de acero inoxidable ©Endress+Hauser
  • Soliwave FQR50 con cabezal de aluminio
  • Soliwave FQR50 con cabezal de acero inoxidable

Emisor para la detección de nivel no invasiva en aplicaciones con sólidos granulados

El emisor de barrera de microondas Soliwave FQR50 utiliza un procedimiento no invasivo para la detección de nivel. Puede instalarse en depósito o tubería. Es posible medir desde el exterior de un depósito de paredes no metálicas. Adecuado como detector de nivel para controlar y cuantificar todo tipo de sólidos granulados. Interacciona con el receptor de Soliwave FDR50.

  • Cálculo de precios tras inicio de sesión y configuración

Selección rápida

Elija entre nuestras opciones recomendadas
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FQR50
Mostrar detalles Ocultar detalles
Mostrar detalles
Volver a la Selección rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Complementos opcionales
Utilice el configurador individual para continuar.
o

Configuración individual

Continúe seleccionando entre todas las opciones posibles

  • Ventajas

    • Medición muy fiable gracias a la posibilidad de ajuste de la sensibilidad y la indicación de la intensidad de señal del receptor

    • Solución mecánica robusta que asegura un ahorro a lo largo de todo el ciclo de vida del producto: no se producen desgastes ni...

  • Ámbito de aplicación

    Los sólidos granulados habituales son: virutas de madera, serrín o polvo de lijado, yeso, cemento, cenizas, recortes de papel o cartón, grava, arena, polvos secos en general, bolsas, cajas.

    • Conexiones a proceso: roscas

    • Temperatura ambiente: -20 a +70 °C...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Barrera microondas

  • Característica / Aplicación

    Medición sin contacto
    Transmisor de microondas

  • Suministro / Comunicación

    Transmisor

  • Temperatura ambiente

    -20 °C ... 70 °C
    (-4°F ... 158°F)

  • Temperatura del proceso

    Ondas emitidas desde fuera (sin contacto): cualquier
    y

    Ondas emitidas dentro de la instalación (contacto):

    -20 °C ... 70 °C
    (-4°F ... 158 °F)

  • Presión de proceso absoluta / límite de sobrepresión máx.

    Ondas emitidas desde fuera (sin contacto): cualquier
    Ondas emitidas dentro de la instalación (contacto):

    0.8 bar abs ... 4.8 bar abs (12 psi ... 70 psi)

  • Densidad min. del medio

    Peso sólido: >10 g/l

  • Principales partes húmedas

    Dentro de instalación: Aluminio, PTFE
    O: sin contacto

  • Conexión a proceso

    1-1/2" G + NPT
    o con ondas emitidas desde el exterior / montaje desde fuera, las paredes del recipiente no deben ser de metal

  • Conexión a proceso higiénica

    Con ondas emitidas desde afuera

  • Comunicación

    Transmisor: Relevadores, DPDT

  • Certificados / Aprobaciones

    ATEX

    IECEx

  • Opciones

    Brida

  • Componentes

    Receptor: FDR50
    Transmisor: FTR325

  • Sucesor

    FQR56

  • Límites de la aplicación

    Cuando son emitidas sondas desde el exterior (sin contacto)
    Peso sólido: <10g/l
