Presión absoluta y relativa
Cerabar PMC71

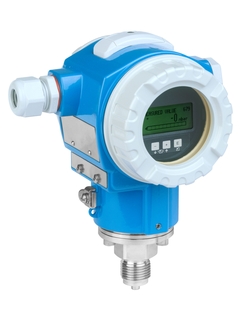

CerabarCabezal de aluminio PMC71 ©Endress+Hauser

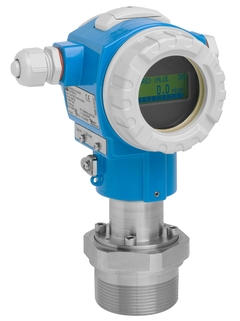

CerabarCabezal de aluminio PMC71 ©Endress+Hauser
CerabarBrida PMC71 ©Endress+Hauser

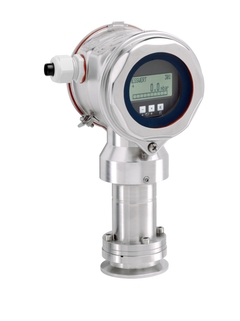

CerabarCabezal higiénico PMC71 ©Endress+Hauser

Principio de medición de presión

CerabarPMC71 con manifolds ©Endress+Hauser
  • CerabarCabezal de aluminio PMC71
  • CerabarCabezal de aluminio PMC71
  • CerabarBrida PMC71
  • CerabarCabezal higiénico PMC71
  • CerabarPMC71 con manifolds

Transmisor de presión digital con sensor cerámico sin aceite de relleno para medición en gases y líquidos

El transmisor de presión digital Cerabar PMC71 con célula de medición cerámica capacitiva sin aceite de relleno se usa típicamente en aplicaciones higiénicas para medir presión, nivel, volumen o masa en líquidos y gases. Garantiza un alto nivel de seguridad del sistema gracias a la membrana cerámica a prueba de vacío con detección de rotura integrada. El menú de Configuración rápida con rango de medición ajustable permite una fácil puesta en marcha, reduce costes y ahorra tiempo. SIL2/3 según IEC 61508.

  • Cálculo de precios tras inicio de sesión y configuración

Selección rápida

Elija entre nuestras opciones recomendadas
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

PMC71
Mostrar detalles Ocultar detalles
Mostrar detalles
Volver a la Selección rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Complementos opcionales
Utilice el configurador individual para continuar.
o

Configuración individual

Continúe seleccionando entre todas las opciones posibles

Componentes adicionales

  • Ventajas

    • El más adecuado para aplicaciones de vacío y aplicaciones con productos corrosivos y abrasivos

    • Seguridad de proceso gracias a la detección de roturas en la membrana

    • Sensor cerámico de alta pureza resistente a sobrecargas (99,9% Al2O3)

    • Concepto de gestión...

  • Ámbito de aplicación

    Cabezal de aluminio o acero inoxidable (316L) con dos cámaras.

    • Conexiones a proceso: roscas, bridas o conexiones higiénicas

    • Temperatura de proceso: -40 a +150 °C (-40 a +302 °F)

    • Rangos de medida: -1/0 mbar a +40 bar (+1,5 a +600 psi)

    • Precisión: ±0,05%, "...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Presión absoluta y del medidor

  • Característica

    Transmisor digital con sensor capacitivo y membrana de cerámica
    Transmisor modular
    Estabilidad a largo plazo
    Seguridad mejorada vía función de auto diagnóstico
    Barrera de proceso secundario

  • Suministro de voltaje

    4...20mA HART:
    10,5...45V DC
    Ex ia: 10,5...30V DC
    PROFIBUS PA /
    FOUNDATION Fieldbus:
    9...32V DC (No Ex)

  • Precisión de Referencia

    Estándar 0,075%

    Platino 0,05%

  • Estabilidad a largo plazo

    0,05% de URL/año

  • Temperatura del proceso

    -20°C...150°C
    (-4°F...257°F)

  • Temperatura ambiente

    -40°C...85°C
    (-40°F...185°F)

  • Celda de medición

    100mbar...40bar
    (1.5psi...600psi)

  • El menor rango calibrable

    25 mbar (3.63 psi) rel./ abs.

  • Resistencia al vacío

    0 mbar abs.

  • Máx. relación de reducción

    100:1

  • Límite máx. de sobrepresión

    60bar (900psi)

  • Conexión a proceso

    Cuerda:

    G1/2...G2, R1/2, MNPT1/2...MNPT2

    Brida:

    DN25...DN80,

    ASME 1"...4",

    JIS 10K

  • Conexión a proceso higiénica

    Tres abrazadera

    DIN11851

    Varivent N

    SMS

    DRD

  • Material de la membrana de proceso

    Cerámica

  • Junta de material

    Viton, EPDM, Chemraz, Kalrez, NBR

  • Llenar fluido

    ninguno, celda de medición seca

  • Material del gabinete

    Fundición de aluminio,

    AISI 316L

  • Comunicación

    4...20mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Certificados / Aprobaciones

    ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, NEPSI

    WHG protección contra sobrellenado

    SIL

    EN10204-3.1

    3A, EHEDG

    Sector naval

  • Aprobaciones de seguridad

    Prevención contra sobrellenado WHG

    SIL

  • Aprobación de diseños

    EN10204-3.1

  • Aprobaciones higiénicas

    3A, EHEDG

  • Aprobaciones marítimas

    GL/ ABS

  • Aprobaciones para agua potable

    NSF

  • Especialidades

    funciones de diagnóstico

  • Measuring principle

    Presión absoluta y del medidor

  • Característica / Aplicación

    Transmisor digital con sensor capacitivo y membrana de cerámica
    Transmisor modular
    Estabilidad a largo plazo
    Seguridad mejorada vía función de auto diagnóstico
    Barrera de proceso secundario

  • Especialidades

    funcionalidades del diagnóstico

    diferentes idiomas en el software

  • Suministro / Comunicación

    4...20mA HART:
    10,5...45V DC
    Ex ia: 10,5...30V DC
    PROFIBUS PA /
    FOUNDATION Fieldbus:
    9...32V DC

  • Precisión

    0,075%
    "PLATINO" 0,05%

  • Estabilidad a largo plazo

    0,05% de URL/año

  • Temperatura ambiente

    -40°C...85°C
    (-40°F...185°F)

  • Temperatura del proceso

    -40°C...150°C
    (-40°F...302°F)

  • Presión de proceso absoluta / límite de sobrepresión máx.

    60bar (900psi)

  • Rango de medición del proceso

    100mbar...40bar
    (1.5psi...600psi)

  • Principales partes húmedas

    Cerámica Ceraphire
    Aleación C
    316L
    Monel
    PVDF

  • Conexión a proceso

    Cuerdas
    Bridas
    Tres abrazaderas ISO2852
    Conexiones higiénicas

  • Máx. distancia de medición

    400m (1312ft) H2O

  • Comunicación

    4 ... 20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Certificados / Aprobaciones

    ATEX
    FM
    CSA
    TIIS
    NEPSI
    IECEx
    SIL
    WHG/ Protección contra sobrellenado
    EN10204-3.1
    GL sector naval

  • Aprobaciones de seguridad

    Prevención contra sobrellenado WHG

    SIL

  • Aprobaciones de diseño

    EN10204-3.1

  • Aprobación marítima

    GL/ ABS

  • Aprobaciones para agua potable

    NSF

  • Opciones

    HistoROM/M-Dat
    pantalla digital de 4 líneas
    Carcasa de Acero Inoxidable o Aluminio
    Carcasa separada

  • Límites de la aplicación

    Celda de medición: cerámica

    Si presurizado, posiblemente utilice
    medición de presión diferencia con dos
    transmisores de presión
    (dp electrónico). Observe la proporción de la presión de superficie :
    presión hidrostática
