TH13

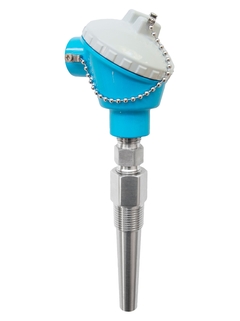

Sensor de temperatura RTD modular, estilo americano
La mejor tecnología de medición de temperatura de su clase para aplicaciones generales
El robusto dispositivo con un termopozo en barra es una unidad completa lista para usar con varios cabezales transmisores de carcasa para cumplir con las necesidades de aplicación y espacio requeridas. La unidad ofrece precisión y confiabilidad de medición mejoradas. Una variedad de conexiones de proceso, dimensiones y materiales (como 316L SS y Hastelloy C276) ofrecen posibilidades de aplicación flexibles.
Componentes adicionales
-
Ventajas
Gran flexibilidad gracias a un portasondas modular con cabezales de terminal estándares y longitud de inmersión personalizada
Una única fuente de soluciones para medición de temperatura. Transmisor de clase internacional con sensor integrado preparado...
-
Ámbito de aplicación
Los sensores de temperatura TH13 son portasondas RTD instalados en termopozos y diseñados para utilizarse en todo tipo de industrias de proceso, incluidas las industrias pesadas, debido a su resistente diseño.
El sensor consta de una sonda de medición...
Documentos / Manuales / Software
-
RTD TH13, TH14 and TH15
TH13, TH14 and TH15 RTD assemblies in thermowells
with spring loaded insert and housing for process industryTechnical Information (TI) -
TH13
Compact instructions
RTD Assembly in thermowell
Short Instruction (KA)02/13Inglés -
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series,
TU111, TU121, TU211, TU221
Installation Notes for Hazardous Locations
Certificate FM/CSA (ZD) -
温度测量
过程工业用温度传感器和温度变送器
Fields of Activities (FA)12/14Chino -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznychFields of Activities (FA)10/14Polaco -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.Fields of Activities (FA)06/13Ruso -
Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)04/18Inglés -
Mesure de température
Capteurs et transmetteurs pour les industries de process
Fields of Activities (FA)04/18fr -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
Fields of Activities (FA)04/18Español -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processoFields of Activities (FA)04/18Italiano -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Fields of Activities (FA)03/19Alemán -
Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)03/19Inglés -
Catálogo Medición de Temperatura
Termómetros y transmisores para la industria de proceso
Fields of Activities (FA)03/17Español -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)03/13Inglés -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
Fields of Activities (FA)03/13Turco -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Competence Brochure (CP)08/11Ruso -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиCompetence Brochure (CP)04/10Ruso -
Increased productivity and Throughput
Elimination of waste, batch rework and losses with innovative active
backup on RTD assemblies with transmittersCase Studies (CS)06/10Inglés -
TMT162, TH15 or TH13 and RN221N with Mercury in Glass (MIG) thermometer
replacement.
FDA proposes to allow the use of alternative temperature indicating
devices for processing low-acid canned foods.Case Studies (CS)06/10Inglés -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Código de producto: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Número Declaración: EC_00568_01.17EU DeclarationAlemán , Inglés , fr -
TC Heavy duty, Process TC Heavy duty, Process TC Explosion proof, Process RTD Explosion proof, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Código de producto: TH55-, TH54-, TH53-, TH15-, TU111-, TU121-, TU211-, TU221-, TH14-, TH13-
Región: USA
Entidad certificadora: CSA
Categoría: I//A,B,C,D/
Protección: IS, NIExplosion ProtectionInglés -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof, Process RTD Hygienic, Process TC Explosion proof, Process TC Heavy duty, TC Heavy duty
Código de producto: TU67-, TU55-, TU54-, TU53-, TU52-, TU51-, TH54-, TH53-, TH27-, TH14-, TH13-, T54-, T53-, T14-, T13-
Región: Canada, Canada (CRN)
Entidad certificadora: CRNPressure EquipmentInglés
Accesorios / Piezas de repuesto
-
-
Order code 71044062
Fixing kit cpl.TMT82/84/85 USA(american)
2x screws, 1x sealing CDI-connector
-
Order code TMT162A-MA
Mounting bracket,North American region standard model,stainl.steel wall/tube 2"
-
Order code TMT162A-MB
Cable gland NPT1/2, North American region standard model,2xD0.5 cables
-
Order code TMT162A-MD
Mounting bracket 2"tube V4A
-
Order code 51006845
Cable gland NPT1/2, D4.5-8.5 IP68
-
Order code 51007995
Mounting bracket SS316L, tube 1,5-3"
-
Order code 52028179
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
Profile gasket cover. Usage: housing F15 stainless steel.
-
Order code 60017971
Display LC for TA20J
-
Order code 71043745
Housing filter plastic F15, 3 pieces
Consists of: filter plug plastic, Pressure compensation filter, O-ring. Usage: housing F15. Non Ex.
-
Order code 71079763
Fieldbus connector PA 1/2NPT; M12 L250
-
Order code 71082009
Fieldbus connector FF 1/2NPT;7/8" L250
-
Order code TMT142X-DA
Display + fitting kit + twist protection
-
Order code TMT142X-DC
Display fitting kit + twist protection
-
-
-
Nr F Order code TMT142X-HI
Housing cover blind, Alu + O-ring
-
Nr F Order code TMT142X-HL
Housing cover cpl. for display, Alu + O-ring
-
-
-
Order code TMT162X-DA
Display HART5 + fitting kit + twist protection
-
Order code TMT162X-DB
Display PA/FF + fitting kit + twist protection
-
Order code TMT162X-DC
Display fitting kit + twist protection
-
-
-
Nr F Order code TMT162X-HI
Housing cover blind, Alu + O-ring
-
Nr F Order code TMT162X-HL
Housing cover cpl. for display, Alu + O-ring
-
-
-
Order code 71003600
Temperature ceramic block 3 pole
-
Order code 71039736
Temperature ceramic block 4 pole
-
Order code 71039737
Temperature ceramic block 6 pole
-
Order code 71310423
-
Order code 71386275
-
-
-
Nr A Order code TS212-
Insert imperial iTHERM TS212
Insert replaceable central spring load imperial version ::Fastest response times for optimal process control through iTHERM QuickSens insert. ::Maximum robustness for highest process safety through iTHERM StrongSens insert. Maximum RTD accuracy at high temperature through iTHERM HotSens insert.
-
Nr A Order code TU111-
RTD-Insert TU111, Gen.Purp. U.S.Style
Spare part. Spring loaded. General purpose. Pt100 Sensor comply with IEC60751 standard, alpha=0.00385.
-
-
-
Order code XPT0004-
-
Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
-
Nr A Order code TA30R-
Terminal Head TA30R
Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.
-
-
-
Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
-
-
Nr B Order code TU51-
Thermowell TU51, Weld-in U.S.Style
Bar stock Thermowell, CRN Number.
-
-
-
Nr D Order code TU52-
Thermowell TU52, Socked Weld U.S.Style
Bar stock Thermowell, CRN Number.
-
-
-
Nr C Order code TU53-
Thermowell TU53, Screw-In U.S.Style
Bar stock Thermowell, CRN Number.
-
-
-
Order code TID10-
Display for head transmitter TID10
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
-
-
-
Nr F Order code TU401-
Enclosure TU401, U.S.Style
-
-
-
Order code TMT142E-
Electronic TMT142E
-
-
-
Nr F Order code TMT142G-
Housing TMT142G
-
-
-
Order code TMT162E-
Electronic TMT162E
-
-
-
Nr F Order code TMT162G-
Housing TMT162
-
-
-
Order code TMT180-
iTEMP TMT180, Head Transmitter Pt100
Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT181-
iTEMP TMT181, Head Transmitter PCP
Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT182-
iTEMP TMT182, Head Transmitter HART
Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Order code FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
Order code READWIN-
Readwin 2000 Operation + Read. software
-
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
