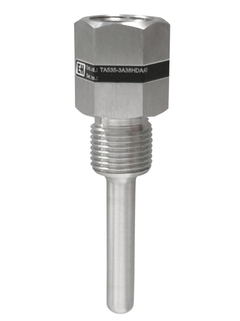

Omnigrad TA535
Thermowell for temperature sensors
For use in general purpose industrial applications and processes generating medium to high stress
The thermowell with a hexagonal extension is employed in industrial applications which generate medium to high stress. For pipes or tanks that have threaded process connections.
It can accommodate sensors with a diameter of 6 mm (0.24 in) and can also be used in combination with thermometers without a thermowell. It is available with NPT, gas and M20 connections (on thermometer and process sides).
-
Ventajas
Several types of process connections can be selected as standard
Several outer diameters can be selected as standard
Connections to the thermometer: ½" NPT, G ½” and M20x1.5 thread
Made in SS 316L / 1.4404
The material certification can be selected as...
-
Ámbito de aplicación
The thermowell with a hexagonal extension is employed in industrial applications which generate medium to high stress. For pipes or tanks that have threaded process
connections. It can accommodate sensors with a diameter of 6 mm (0.24 in) and can also...
