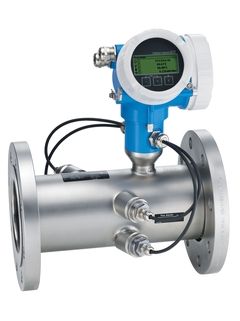

Caudalímetros por ultrasonidos Proline Prosonic Flow
B 200
El equipo para la medición precisa y fiable de biogás con tecnología de 2 hilos
Prosonic Flow B 200 es el especialista para la medición precisa y fiable de biogás húmedo y gas de digestor, incluso en condiciones de proceso variables. Con su análisis único de fracciones de metano en tiempo real, Prosonic Flow B 200 permite una medición continua y la monitorización del caudal, así como de la calidad del gas. Además de un eficiente control del proceso y balance energético, la Tecnología Heartbeat garantiza el cumplimiento de las normas y la seguridad del proceso en todo momento.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Máx. error medido
/-1.5% del valor medido a 3m/s y hasta 30m/s
/-3.0% del valor medido a 1 m/s y hasta 3m/s -
Rango de medición
1 a 30m/s
-
Rango de temperatura del medio
0...+80°C
32...176 °F -
Máx. presión de proceso
0.9...10 bares absolutos
13...145 psi abs -
Materiales húmedos
Sensor: 1.4404/1.4435 (316L)
Transductor: HNBR
Sensor de temperatura (opcional): AFM 34
-
Selección rápida
Configuración individual
-
Ventajas
Medición integrada en tiempo real de la concentración de metano
Optimizado para gases a baja presión – diseño del sensor especializado
Sin pérdidas de carga adicionales – diseño con descarga a plena sección
Transparencia del proceso – funciones de diagnóstico
Cableado conveniente – compartimento de...
-
Ámbito de aplicación
El principio de medición es insensible a la composición del gas
Caudalímetro en línea para aplicaciones de biogás húmedo y gas de digestor en condiciones de proceso variables.
Propiedades del equipo:
Equipo multivariable: caudal, temperatura y metano
...
