Presión
absoluta y relativa

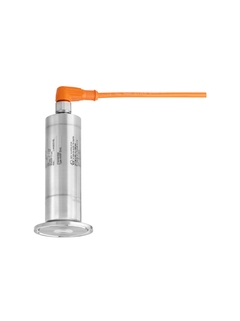

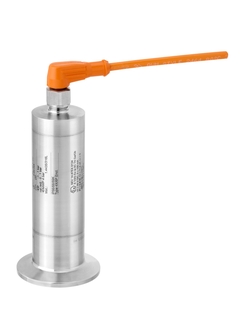

Cerabar PMP23
Transductor de presión económico con un diseño totalmente soldado para la industria de la alimentación y bebidas
Cerabar PMP23 es un transmisor de presión absoluta o relativa económico y compacto. La célula de medición piezorresistiva con diafragma enrasado en 316L se ha diseñado para aplicaciones de la industria higiénica. PMP23 ofrece diversas conexiones a proceso higiénicas certificadas EHEDG y 3-A, materiales conformes a la FDA y a la EG 1935/2004, clase de protección IP69, IO-Link opcional, así como certificados para zonas con peligro de explosión. El dispositivo se puede entregar con rangos de medición personalizados de hasta 40 bar.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Precisión
0,3%
-
Temperatura del proceso
-10…+100°C
(+14…+212°F)
135°C para 1h
(275°F para 1h) -
Rango de medición del proceso
400 mbar…+40 bar
(6...+600psi) -
Celda de medición
400 mbar…+40 bar
(6...+600psi)
-
Selección rápida
Configuración individual
-
Ventajas
Instalación y configuración fáciles y rápidas en la planta gracias a un diseño muy compacto y a unos rangos de medición personalizables
Las conexiones a proceso totalmente soldadas maximizan la seguridad del proceso, reduciendo el uso de juntas
Está...
-
Ámbito de aplicación
Transductor de presión para medir la presión absoluta o relativa de gases o líquidos.
Conexiones a proceso: conexiones higiénicas de montaje enrasado, conexiones con rosca de montaje enrasado
Temperatura de proceso: -10 °C hasta +100 °C (-40 °F a +212 °F...
