T15

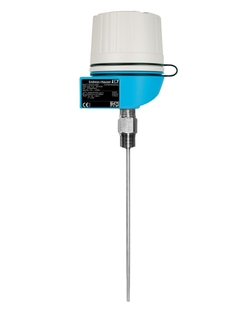

Termómetro RTD a prueba de explosiones, estilo EUA
Monitorización segura de temperaturas de proceso en aplicaciones exigentes, p.ej., en la industria Oil & Gas
El dispositivo robusto es una unidad lista para usar dentro del termopozo existente e incluye varios cabezales transmisores de carcasa para satisfacer las necesidades de aplicaciones y requerimientos de espacio. La unidad ofrece precisión y confiabilidad de medición mejoradas. Una variedad de conexiones, dimensiones y materiales (como 316L SS y Hastelloy C276) ofrecen posibilidades de aplicación flexibles.
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
| Gamas FLEX | Excelencia técnica | Simplicidad |
|---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Precisión
clase A según IEC 60751
clase B según IEC 60751 -
Tiempo de respuesta
63 % tr = 3 s
-
Máx. presión de proceso (estática)
No aplicable
-
Rango de temperatura de operación
PT100 WW:
–200 °C … 600 °C
(–328 °F … 1.112 °F)
PT100 TF:
–50 °C … 200 °C
(–58 °F … 392 °F) -
Máx. longitud de inmersión bajo demanda
hasta 100" (2.540 mm)
otros bajo petición
-
Componentes adicionales
-
Ventajas
FM/CSA XP Clase I, Div. 1 portaelectrodos de temperatura de máxima seguridad certificado
Una tienda de adquisición de soluciones para medición de temperatura. Transmisor de clase internacional con sensor integrado preparado para aplicaciones exigentes de...
-
Ámbito de aplicación
El sensor de temperatura T15 es un portasondas RTD (detector de temperatura resistivo) diseñado para ser usado en aplicaciones exigentes y zonas con peligro de deflagración, gracias a sus certificados FM y CSA.
El sensor consta de una sonda de medición...
