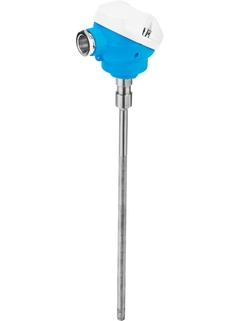

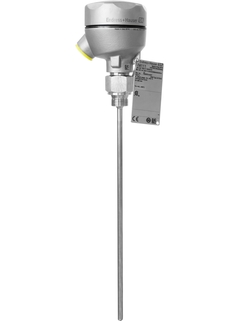

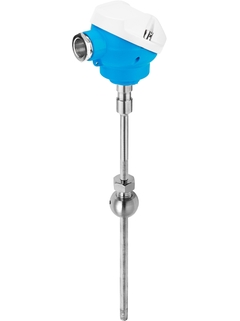

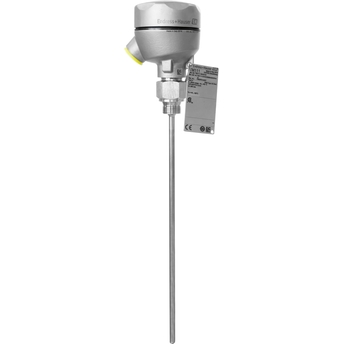

iTHERM ModuLine TM111
Sonda de temperatura modular innovadora para una instalación directa en un gran número de aplicaciones industriales
Versión métrica fácil de usar con una excelente tecnología de sensores con RTD o TC. Con un transmisor para cabezal opcional, con todos los protocolos de comunicación habituales (incluida la tecnología Bluetooth®), el equipo está listo para su uso con una mayor precisión y fiabilidad de medición. La diversidad de conexiones a proceso, tamaños y materiales proporciona un nivel elevado de flexibilidad y una gran variedad de posibilidades de aplicación. Cuenta con una tecnología de sensores resistente ante vibraciones y de rápida respuesta (iTHERM StrongSens y QuickSens), así como con certificaciones para zonas peligrosas.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
Producto no disponible en este mercado
-
Resumen de especificaciones
-
Precisión
Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2 -
Tiempo de respuesta
t90 starting at < 1,5 s QuickSens
depending on configuration -
Máx. presión de proceso (estática)
depending on the configuration
-
Rango de temperatura de operación
PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 QuickSensTF:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Thermoelement:
Typ K up to 1.100 °C (2.012 °F)
Typ J up to 800 °C (1.472 °F)
Typ N up to 1.100 °C (2.012 °F) -
Máx. longitud de inmersión bajo demanda
up to 4.500,0 mm (177'')
-
Selección rápida
Configuración individual
-
Ventajas
Intuitivo y fiable desde la selección de productos hasta las tareas de mantenimiento
Elementos de inserción iTHERM: producción automatizada y única globalmente. Trazabilidad total y un producto con consistente alta calidad para unos valores de medición...
-
Ámbito de aplicación
Rango de aplicación universal
Rango de medición: –200 a +1100 °C (–328 a +2012 °F)
Rango de presión hasta 75 bar (1.088 psi)
Grado de protección: hasta IP 68
Elementos de sensor resistentes a vibraciones de hasta 60 g
Documentos / Manuales / Software
-
iTHERM ModuLine TM111
Información técnica
Versión métrica fácil de usar con una excelente tecnología de sensores
con RTD o TCTechnical Information (TI) -
Sondas de temperatura modulares
Sondas de temperatura modulares universales con elemento de inserción
RTD o TC para aplicaciones industrialesManual de instrucciones (BA) -
iTHERM TM111, iTHERM TM131
ATEX: II 1/2G Ex ia IIC, II 1/2D Ex ia IIIC
IECEx: Ex ia IIC Ga/Gb, Ex ia IIIC Da/Db
Safety Instructions
Documentation for hazardous areas
Ex Safety Instructions (XA) -
TM111, TM131: cCSAus XP DIP NI
TM111, TM131: cCSAus XP DIP NI
Ex Safety Instructions (XA) -
iTHERM TM111, iTHERM TM131
ATEX: II 1/2G Ex db IIC, II 2G Ex db IIC, II 1/2D Ex ta/tb IIIC, II 2D
Ex tb IIIC
IECEx: Ex db IIC Ga/Gb, Ex db IIC Gb, Ex ta/tb IIIC Da/Db, Ex tb IIIC Db
Safety Instructions
Documentation for hazardous areas
Ex Safety Instructions (XA) -
iTHERM TM111, TM131
Ex d IIC T1...T6 Gb、Ex tD A20/A21 IP66/68 T
Ex Safety Instructions (XA) -
RTD/TC thermometers
ATEX II 3G, II 3D
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
iTHERM TM111, TM131 Control drawing CSA IS, NI, DIP
Thermometer
Installation Notes for hazardous locations
Intrinsically safe, Nonincendive, Dust ignition proofEx Safety Instructions (XA) -
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411,
TM412
Thermometers and inserts
Ex nA IIC T6...T1 GcEx Safety Instructions (XA) -
TM111, TM131, TS111, TS211
Thermometers and inserts
Ex ia IIC T6 Ga/GbEx Safety Instructions (XA) -
Process RTD General purpose
Código de producto: TM111-
Número Declaración: HE_01245_01.20
Especificaciones del fabricante: RoHSManufacturer DeclarationChino -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
Código de producto: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
Número Declaración: EC_00169_02.16EU DeclarationAlemán , Inglés , fr -
Process RTD General purpose
Código de producto: TM111-, TM131-
Número Declaración: EC_00740_01.19EU DeclarationAlemán , Inglés , fr -
Process RTD General purpose
Código de producto: TM111-, TM131-
Número Declaración: EC_00735_01.19EU DeclarationAlemán , Inglés , fr -
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
Código de producto: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
Número Declaración: EC_00136_02.16EU DeclarationAlemán , Inglés -
ACCESSORIES: T_INSERTS, Process RTD General purpose
Código de producto: TM111-, TM131-, TS111-, TS211-
Región: Europe (ATEX)
Entidad certificadora: Bureau Veritas
Categoría: II 1/2 D, II 1/2 G, II 1 G
Protección: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da/DbExplosion ProtectionAlemán , Inglés -
ACCESSORIES: T_INSERTS, Process RTD General purpose
Código de producto: TM111-, TM131-, TS111-, TS211-
Región: China
Entidad certificadora: NEPSI
Protección: Ex ia IIC T6...T1 Ga/GbExplosion ProtectionChino -
Process RTD General purpose, Process RTD Hygienic
Código de producto: TM111-, TM131-, TM411-, TM412-
Región: Canada, USA
Entidad certificadora: CSA
Categoría: I/2/A,B,C,D, I/1/A,B,C,D T6...T4, II,III/1/E,F,G, I/zone 1, I/zone 0
Protección: Ex ia IIC T6...T4 Ga, AEx ia IIC T6...T4 Ga, AEx/Ex [AEx/Ex ia] IIC T6...T4 GbExplosion ProtectionInglés -
ACCESSORIES: T_INSERTS, Process RTD General purpose
Código de producto: TM111-, TM131-, TS111-, TS211-
Región: International (IECEx)
Entidad certificadora: Bureau Veritas
Protección: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da/DbExplosion ProtectionInglés -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process RTD General purpose, Process TC Explosion proof
Código de producto: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TU211-, TU221-
Región: USA, Canada
Entidad certificadora: CSA
Categoría: II,III/1/E,F,G/TXXX°C, I/1/1/T6...T1, I/1/A,B,C,D/T6...T1, I/2/A,B,C,D/T6...T1
Protección: XP, NI, DIPExplosion ProtectionInglés -
Process RTD General purpose
Código de producto: TM111-, TM131-
Región: Europe (ATEX)
Entidad certificadora: DEKRA
Categoría: II 2 D, II 2 G, II 1/2 D, II 1/2 G
Protección: Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/Db, Ex db IIC T6...T1 Ga/Gb, Ex db IIC T6...T1 GbExplosion ProtectionInglés -
Process RTD General purpose
Código de producto: TM111-
Región: South Korea
Entidad certificadora: KTL
Protección: Ex db IIC T6...T1 Ga/GbExplosion Protection -
Process RTD General purpose
Código de producto: TM111-, TM131-
Región: International (IECEx)
Entidad certificadora: DEKRA
Protección: Ex tb IIIC Txxx°C Db, Ex ta/tb IIC Txxx°C Da/Db, Ex db IIC T6...T1 Ga/Gb, Ex db IIC T6...T1 GbExplosion ProtectionInglés -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
Código de producto: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TS211-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TM111-, TM131-, TM411-, TPC100-, TPR100-
Región: China
Entidad certificadora: NEPSI
Protección: Ex nA IIC T6...T1 GcExplosion ProtectionInglés -
Process RTD General purpose
Código de producto: TM111-, TM131-
Región: China
Entidad certificadora: NEPSI
Protección: Ex d IIC T6...T1 Ga/Gb, Ex tD A20/A21 IP6XExplosion ProtectionChino -
Process RTD General purpose
Código de producto: TM111-
Región: South Korea
Entidad certificadora: KTL
Protección: Ex tb IIIC Txxx°C DbExplosion Protection -
Process RTD Explosion proof, Process RTD General purpose, Process RTD Hygienic, Process TC Explosion proof
Código de producto: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TM411-, TM412-
Región: USA, Canada
Entidad certificadora: CSAOrdinary Location Product SafetyInglés -
Process RTD General purpose, Process RTD Hygienic
Código de producto: TM111-, TM131-, TM411-, TM412-
Región: Canada, USA
Entidad certificadora: CSAOrdinary Location Product SafetyInglés
