Digital conductivity sensor
Memosens CLS16E

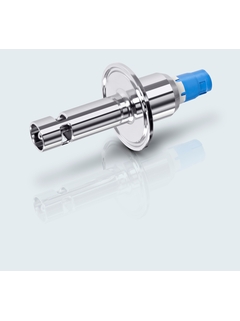

Memosens CLS16E - Digital, contacting conductivity sensor with certified hygienic design ©Endress+Hauser

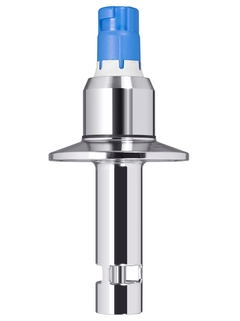

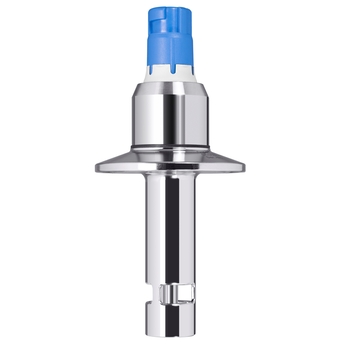

Hygienic conductivity sensor for the life sciences and food industries ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens 2.0 contacting conductivity sensor for hygienic applications in life sciences and food

Memosens CLS16E is a high-end conductivity sensor with certified hygienic design conforming to FDA and USP Class VI. It measures with highest precision delivering reliable data for optimum process and product quality. The sensor is robust and offers a long operating life thanks to its replaceable seal. With Memosens 2.0 technology, CLS16E is able to store more calibration and process data, facilitating predictive maintenance and providing the perfect basis for IIoT services.

  • Simple products

  • Easy to select, install and operate

Excelencia técnica

Simplicidad

  • Productos estándar

  • Seguros, resistentes y con poco mantenimiento

Excelencia técnica

Simplicidad

  • Productos de alta gama

  • Altamente funcionales y prácticos

Excelencia técnica

Simplicidad

  • Productos especializados

  • Diseñados para aplicaciones exigentes

Excelencia técnica

Simplicidad

Variable

Gamas FLEX Excelencia técnica Simplicidad
  • F
  • L
  • E
  • X

Gama Fundamental

Satisfaga sus necesidades básicas de medición

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Lean

Maneje los principales procesos fácilmente

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Extended

Optimice sus procesos con tecnologías innovadoras

Excelencia técnica
Simplicidad
  • F
  • L
  • E
  • X

Gama Xpert

Domine las aplicaciones más exigentes

Excelencia técnica
Simplicidad

Variable

Producto no disponible en este mercado

  • Resumen de especificaciones

    • Rango de medición

      k=0,1: 0,04 to 500 µS/cm

    • Temperatura del proceso

      -5 to 120 °C (23 to 248 °F)
      For Sterilizsation: max. 150 °C at 5 bar
      (Max. 302 °F at 73 psi)

    • Presión de proceso

      13 bar at 20 °C (188 psi at 68 °F)
      9 bar at 120 °C (130 psi at 248 °F)

please wait Loading alternative products

Selección rápida

Elija entre nuestras opciones recomendadas
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

o

Configuración individual

Continúe seleccionando entre todas las opciones posibles
  • Ventajas

    • Certified with quality certificate and EN 10204 3.1 and complying with EHEDG, USP Class VI, ASME and FDA, Memosens CLS16E is perfectly suited for hygienic applications in the life sciences and food industries.

    • The sensor is sterilizable and autoclavable...

  • Ámbito de aplicación

    Memosens CLS16E measures conductivity in pure and ultrapure water applications for the monitoring and control of:

    • Water for injection (WFI)

    • Electro-deionizing

    • Ion exchangers

    • Reverse osmosis

    • Distillation

    With its international explosion protection...

Características y especificaciones

Atrás

Details

  • Measuring principle

    Conductivo

  • Aplicación

    Pure and ultrapure water

    Pharmaceutical industry
    Final rinse

    WFI

  • Característica

    Hygienic 2-electrode conductivity sensor

  • Rango de medición

    k=0,1: 0,04 to 500 µS/cm

  • Principio de medición

    Conductive conductivity cell with electropolished stainless steel electrodes

  • Diseño

    Hygienic 2-electrode conductivity sensor with coaxially arranged electrodes, electropolished

  • Material

    Isolation: PEEK
    Electrode: polished stainless steel 1.4435
    Sealing: Isolast (FFKM) FDA approved

  • Dimensión

    Electrode diameter: 17 mm (0.66 inch)
    Electrode length: 54 mm (2.13 inch)

  • Temperatura del proceso

    -5 to 120 °C (23 to 248 °F)
    For Sterilizsation: max. 150 °C at 5 bar
    (Max. 302 °F at 73 psi)

  • Presión de proceso

    13 bar at 20 °C (188 psi at 68 °F)
    9 bar at 120 °C (130 psi at 248 °F)

  • sensor de temperatura

    Pt1000

  • Certificación Ex

    ATEX, NEPSI, CSA, IECEx, INMETRO, EAC Ex

  • Conexión

    Process connection: Varivent, Neumo, BioControl, Clamp
    Sensor connection: Inductive, digital connection head with Memosens 2.0 technology

  • Protección contra ingreso

    IP68

  • Certificados Adicionales

    Material certification 3.1
    EHEDG certified, hygienic design
    ASME BPE-2002
    Conformity to cGMP derived

Documentos / Manuales / Software

Accesorios / Piezas de repuesto

Nr
Order code
Specification
    • Order code 50081902

      Calibration solution CLY11-A, 74,0 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081903

      Calibration solution CLY11-B,149,6 uS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO.

    • Order code 50081904

      Calibration solution CLY11-C,1,406mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081905

      Calibration solution CLY11-D,12,64 mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM to NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO

    • Order code 50081906

      Calibration solution CLY11-E,107,00mS/cm

      500 ml, reference temperature 25oC. Precision solution referred to SRM of NIST. With temp. table for qualified calibration of conductivity measuring systems acc. to ISO
