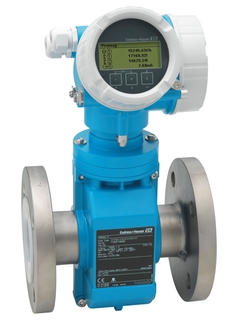

Proline Promag P 200
Caudalímetro electromagnético
El caudalímetro para las mayores temperaturas del producto con una auténtica tecnología por lazo de corriente
Promag P está destinado a aplicaciones químicas y de proceso con líquidos corrosivos y unas temperaturas elevadas del producto. Con una auténtica tecnología alimentada por lazo, Promag P 200 permite una integración económica y sin interrupciones en las infraestructuras existentes. Ofrece la mayor seguridad de operación en zonas con peligro de explosión gracias a su diseño intrínsecamente seguro (Ex ia). La Heartbeat Technology garantiza la seguridad de proceso en todo momento.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Máx. error medido
±0.5%
-
Rango de medición
0...1100 m3/h
-
Rango de temperatura del medio
-40...+150°C
(-40...+302°F) -
Máx. presión de proceso
PN10...40
Cl 150...300
JIS 10...30 K -
Materiales húmedos
Recubrimiento: PFA; PTFE
Electrodos: 1.4435 (316L); Aleación C22, 2.4602 (UNS N06022); Tantalio; Platino
-
Selección rápida
Configuración individual
-
Ventajas
Aplicaciones versátiles: una amplia variedad de materiales de las partes en contacto con el medio
Ahorro de energía en la medición de caudal: sin pérdida de carga debidas a constricciones del área transversal
Libre de mantenimiento: sin piezas móviles
...
-
Ámbito de aplicación
El principio de medición bidireccional es prácticamente independiente de la presión, densidad, temperatura y viscosidad
Destinado a aplicaciones químicas y de proceso con líquidos corrosivos y unas temperaturas elevadas del producto
Propiedades del equipo
...
