Paquete iTHERM TMS31 MultiSens

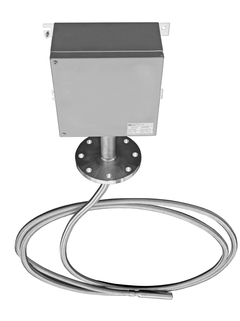

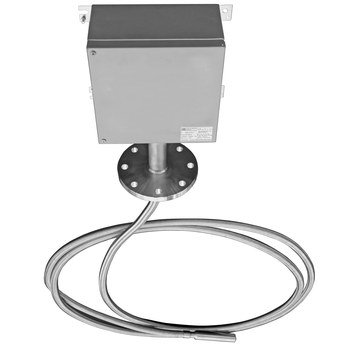

Imagen del productoiTHERMPaquete TMS31 MultiSens ©Endress+Hauser

Cuerda metálica flexible multipunto para aplicaciones en silos y depósitos de almacenamiento

El iTHERM TMS31 es un portasondas de temperatura multipunto modular y versátil diseñado para la detección y el perfilado del promedio de temperatura en granos, silos de almacenaje de materiales orgánicos granulados y en depósitos de almacenaje de combustible y petróleo.
La solidez mecánica del equipo y los sensores de temperatura precisos le ofrecen las características necesarias para realizar operaciones de almacenamiento seguras, fiables y económicas. En su configuración estándar está disponible con hasta 20 termopares (TC) o sensores RTD colocados en una cuerda metálica primaria.

Producto no disponible en este mercado

  • Ventajas

    • Instalación e integración de procesos sencilla gracias al elevado nivel de personalización

    • Cuerda flexible que se adapta a diferentes condiciones de operación de silos o depósitos (llenado, vaciado, almacenamiento...)

    • Equipo intrínsecamente seguro para...

  • Ámbito de aplicación

    • Depósitos de almacenamiento de combustible

    • Silos de sólidos granulados

Características y especificaciones

Atrás

Details

  • Measuring principle

    Detector de Temperatura de Resistencia

  • Característica / Aplicación

    metric style

    imperial style

    easy-to-use

    suitable for hazardous areas

    process connection: flanged

    Storage applications

    linear sensor distribution

    modular design

  • Cabezal de terminal

    Junction box - aluminium - as accessory

    Junction box - stainless steel - as accessory

    on board or remote Junction box

  • termopozo / tubo de protección

    without (not intended to use with thermowell)

  • Inserto / sonda

    mineral insulated (MI), flexible

  • Diámetro exterior del tubo de protección

    25 mm

    37 mm

  • Máx. longitud de inmersión bajo demanda

    up to 60.000,00 mm (2.360'')

  • Protección de material tubo/termo pozo

    1.4401 (316)

    1.4435 (316L)

  • Conexión a proceso

    flange:

    1 1/2" ASME/ANSI B16.5 150
    ...300

    2" ASME/ANSI B16.5 150
    ...300

    3" ASME/ANSI B16.5 150
    ..300

    4"ASME/ANSI B16.5 150
    ..300

    DN40 EN/DIN 1092.1 PN16
    ...PN40

    DN50 EN/DIN 1092.1 PN16
    ...PN40

    DN80 EN/DIN 1092.1 PN16
    ...PN40

    DN100 EN/DIN 1092.1 PN16
    ...PN40

  • Forma de la Punta

    straight

  • Rango de temperatura de operación

    Type K:

    -270 °C …800 °C

    (-454 °F …1.472 °F)

    Type J:

    -210 °C …520 °C

    (-346 °F …968 °F)

    Pt100 WW; 3mm; 316L; -200...600oC

    Pt100 StrongSens; 6mm; 316L; -50…500oC

    Pt100 TF; 3mm; 316L; -50…400oC

  • Máx. presión de proceso (estática)

    at 20 °C: 40 bar (580 psi)

  • Precisión

    class 1 acc. to IEC 60584

    class 2 acc. to IEC 60584

    class Special ASTM E230 and ANSI MC 96.1

    IEC60751 Class A

    IEC60751 Class AA

  • Tiempo de respuesta

    TC

    t50 = 1 s

    t90 = 2 s

    RTD

    t50 = 3 s

    t90 = 6 s

  • Integración del transmisor de cabezal

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Aprobaciones Ex

    ATEX

    IECEX

    UL

    FM

    CSA

  • Certificación

    SIL (transmitter only)
