T14

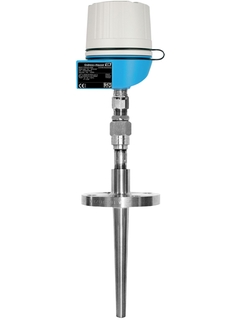

Termómetro Pt100 a prueba de explosiones, estilo EUA
Monitorización segura de temperaturas de proceso en aplicaciones exigentes, p.ej., en la industria Oil & Gas
Este robusto termómetro está diseñado para ser usado en aplicaciones con exigencias de seguridad relevantes, como en las industrias química, Oil & Gas y energética. Aplicaciones exigentes, sustancias corrosivas y las más altas presiones pueden ser tratadas con el uso de estos robustos sensores con vaina y materiales especiales. El equipo permite incorporar un transmisor para cabezal opcional con todos los protocolos de comunicación habituales y queda listo para ser usado con unas características de exactitud y fiabilidad de medición mejoradas en comparación con otros sensores de conexión directa por cable. Flexibilidad de configuración.
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
| Gamas FLEX | Excelencia técnica | Simplicidad |
|---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Precisión
clase A de acuerdo a IEC 60751
clase B de acuerdo a IEC 60751 -
Tiempo de respuesta
dependiendo de la configuración
63% de tiempo de respuesta = 20 s -
Máx. presión de proceso (estática)
a 20 °C: 500 bar (7.252 psi)
-
Rango de temperatura de operación
PT 100:
-200 °C ... 600 °C
(-328 °F ...1.112 °F) -
Máx. longitud de inmersión bajo demanda
hasta 2.743 mm (108,00'')
-
Componentes adicionales
-
Ventajas
FM/CSA XP Clase I, Div. 1 portaelectrodos de temperatura de máxima seguridad certificado
Una tienda de adquisición de soluciones para medición de temperatura. Transmisor de clase internacional con sensor integrado preparado para aplicaciones exigentes de...
-
Ámbito de aplicación
El sensor de temperatura T14 es un portasondas RTD (detector de temperatura resistivo) instalado en vaina y diseñado para ser usado en aplicaciones exigentes y zonas explosivas, gracias a sus certificados FM y CSA.
El sensor consta de una sonda de...
Documentos / Manuales / Software
-
T13, T14 and T15
RTD assemblies T13, T14 and T15 for heavy duty applications
Technical Information (TI) -
KA237Rae T14 Explosion proof RTD assembly in flanged thermowell
T14 Explosion proof RTD assembly in flanged thermowell
Short Instruction (KA)07/07Inglés -
Temperature assemblies T13, T14, T15, T53, T54, T55
Control drawing CSA (XP, DIP)
Installation notes for CSA approved apparatus
Ex Safety Instructions (XA) -
Control Drawing FM XP, NI, DIP T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsCertificate FM/CSA (ZD) -
T13, T14, T53, T54
CSA installation notes: explosion proof, dust ignition proof, non
incendive
CSA approved temperature assemblies
Certificate FM/CSA (ZD) -
Control Drawing FM XP, NI, DIP T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsCertificate FM/CSA (ZD) -
Control Drawing FM Explosionproof T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsCertificate FM/CSA (ZD) -
T13, T14, T53, T54
CSA Installation notes, explosion proof, dust ignition proof
CSA approved temperature assemblies
Certificate FM/CSA (ZD) -
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series,
TU111, TU121, TU211, TU221
Installation Notes for Hazardous Locations
Certificate FM/CSA (ZD) -
Control Drawing FM Explosionproof T13, T14, T53, T54
Temperature Process RTD Explosion Proof T13, Process RTD Explosion Proof
T14, Process TC Explosion Proof T53, Process TC ExplosionProof T54
Installation Notes for Hazardous LocationsCertificate FM/CSA (ZD) -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Competence Brochure (CP)08/11Ruso -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиCompetence Brochure (CP)04/10Ruso -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Código de producto: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Número Declaración: EC_00568_01.17EU DeclarationAlemán , Inglés , French -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process TC Explosion proof
Código de producto: T13-, T14-, T15-, T53-, T54-, T55-, TU211-, TU221-
Región: USA
Entidad certificadora: FM
Categoría: I,II,III/1,2/A,B,C,D,E,F,G/
Protección: DIP, XPExplosion ProtectionInglés -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Explosion proof, Process RTD General purpose, Process TC Explosion proof
Código de producto: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TU211-, TU221-
Región: USA, Canada
Entidad certificadora: CSA
Categoría: II,III/1/E,F,G/TXXX°C, I/1/1/T6...T1, I/1/A,B,C,D/T6...T1, I/2/A,B,C,D/T6...T1
Protección: XP, NI, DIPExplosion ProtectionInglés -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof
Código de producto: T14-, TU54-
Región: Canada (CRN)
Entidad certificadora: CRNPressure EquipmentInglés -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof, Process RTD Hygienic, Process TC Explosion proof, Process TC Heavy duty, TC Heavy duty
Código de producto: TU67-, TU55-, TU54-, TU53-, TU52-, TU51-, TH54-, TH53-, TH27-, TH14-, TH13-, T54-, T53-, T14-, T13-
Región: Canada, Canada (CRN)
Entidad certificadora: CRNPressure EquipmentInglés -
Process RTD Explosion proof, Process RTD General purpose, Process RTD Hygienic, Process TC Explosion proof
Código de producto: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM131-, TM411-, TM412-
Región: USA, Canada
Entidad certificadora: CSAOrdinary Location Product SafetyInglés
Accesorios / Piezas de repuesto
-
-
Order code 71310423
-
Order code TMT142X-DA
Display HART5 + fitting kit + twist protection
-
Order code TMT142X-DC
Display fitting kit + twist protection
-
Order code TMT162X-DA
Display HART5 + fitting kit + twist protection
-
Order code TMT162X-DB
Display PA/FF + fitting kit + twist protection
-
Order code TMT162X-DC
Display fitting kit + twist protection
-
Order code 51006845
Cable gland NPT1/2, D4.5-8.5 IP68
-
Order code 51007995
Mounting bracket SS316L, tube 1,5-3"
-
-
-
Nr F Order code TMT142X-HA
Housing cover blind, 316L Ex d, FM XP, CSA XP + O-ring
-
Nr F Order code TMT142X-HC
Housing cover cpl. for display,316L Ex d FM XP, CSA XP, with O-ring
-
Nr F Order code TMT142X-HH
Housing cover blind, Alu Ex d FM XP without O-ring CSA XP only as cover of terminal part
-
Nr F Order code TMT142X-HK
Housing cover cpl. for display, Alu Ex d + O-ring
-
Nr F Order code TMT162X-HA
Housing cover blind, 316L Exd ATEX Ex d, FM XP + O-ring CSA XP only as cover of terminal part
-
Nr F Order code TMT162X-HC
Housing cover cpl. for display,Ex d,316L ATEX Ex d, FM XP, CSA XP + O-ring
-
Nr F Order code TMT162X-HH
Housing cover blind, Alu Ex d FM XP + O-ring CSA XP only as cover of terminal part
-
Nr F Order code TMT162X-HK
Housing cover cpl. for display,Alu Ex d + O-ring
-
-
-
Order code 51004948
-
Order code 71044062
Fixing kit cpl. TMT8x/7x USA(american)
2x screws, 1x sealing CDI-connector
-
Order code TMT162A-MA
Mounting bracket,North American region standard model,stainl.steel wall/tube 2"
-
Order code TMT162A-MB
Cable gland NPT1/2, North American region standard model,2xD0.5 cables
-
Order code TMT162A-MD
Mounting bracket 2"tube V4A
-
Order code 71003600
Temperature ceramic block 3 pole
-
Order code 71039736
Temperature ceramic block 4 pole
-
Order code 71386275
Integrable Surge Arrester Module
for subsequent mounting in field transmitter. Ensure compatibility.
-
-
-
Nr A Order code TU111-
RTD-Insert TU111, Gen.Purp. U.S.Style
Spare part. Spring loaded. General purpose. Pt100 Sensor comply with IEC60751 standard, alpha=0.00385.
-
Nr A Order code TU211-
RTD-Insert TU211, Approved U.S.Style
Spare part. Flame path Nipple. Spring loaded. Pt100 Sensor comply with IEC60751 standard, alpha=0.00385.
-
-
-
Nr E Order code TU54-
Thermowell TU54, Flanged U.S.Style
Bar stock Thermowell, CRN Number. The Flange is welded on.
-
-
-
Nr F Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
-
Order code TMT142E-
Electronic TMT142E
-
Order code TMT162E-
Electronic TMT162
-
Order code TMT180-
iTEMP TMT180, Head Transmitter Pt100
Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT181-
iTEMP TMT181, Head Transmitter PCP
Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT182-
iTEMP TMT182, Head Transmitter HART
Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.
-
Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Order code READWIN-
Readwin 2000 Operation + Read. software
-
Order code TID10-
Display Unit Head Transmitter
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
-
Order code TXU10-
Configuration Kit TXU10
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
Order code FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
Order code T15-
RTD-Assembly T15, Spring XP U.S.Style
Spring loaded temperature measuring devise, without thermowell. Hazardous approval. Pt100 Sensor comply with IEC60751 standard, alpha=0.00385.
-
